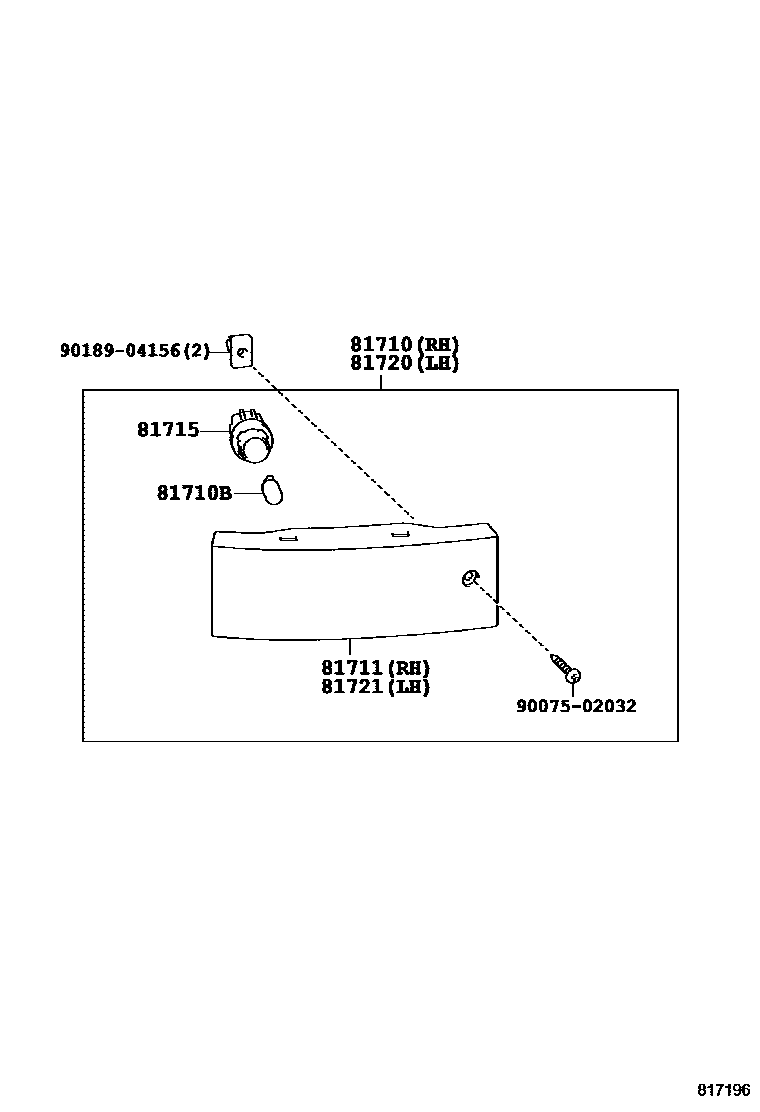

FRONT MARKER LAMP

0001 1 0002 1

81710LAMP ASSY, FRONT MARKER, RH

main81730-50040iUCF20199410-199707

main81730-50080iUCF20199707

81710BBULB, FRONT MARKER LAMP

main90981-11020×2iUCF20..4FC199410

12V 3.8W

81711LENS, FRONT MARKER LAMP, RH

main81731-50040iUCF20199410-199707

main81731-50080iUCF20199707

81715SOCKET & WIRE, FRONT MARKER LAMP

main90075-60001×2iUCF20199410

81720LAMP ASSY, FRONT MARKER, LH

main81740-50040iUCF20199410-199707

main81740-50080iUCF20199707

81721LENS, FRONT MARKER LAMP, LH

main81741-50040iUCF20199410-199707

main81741-50080iUCF20199707

9007502032

main90075-02032

9018904156

main90189-04156

8 parts on this diagram · 2 diagrams in section
