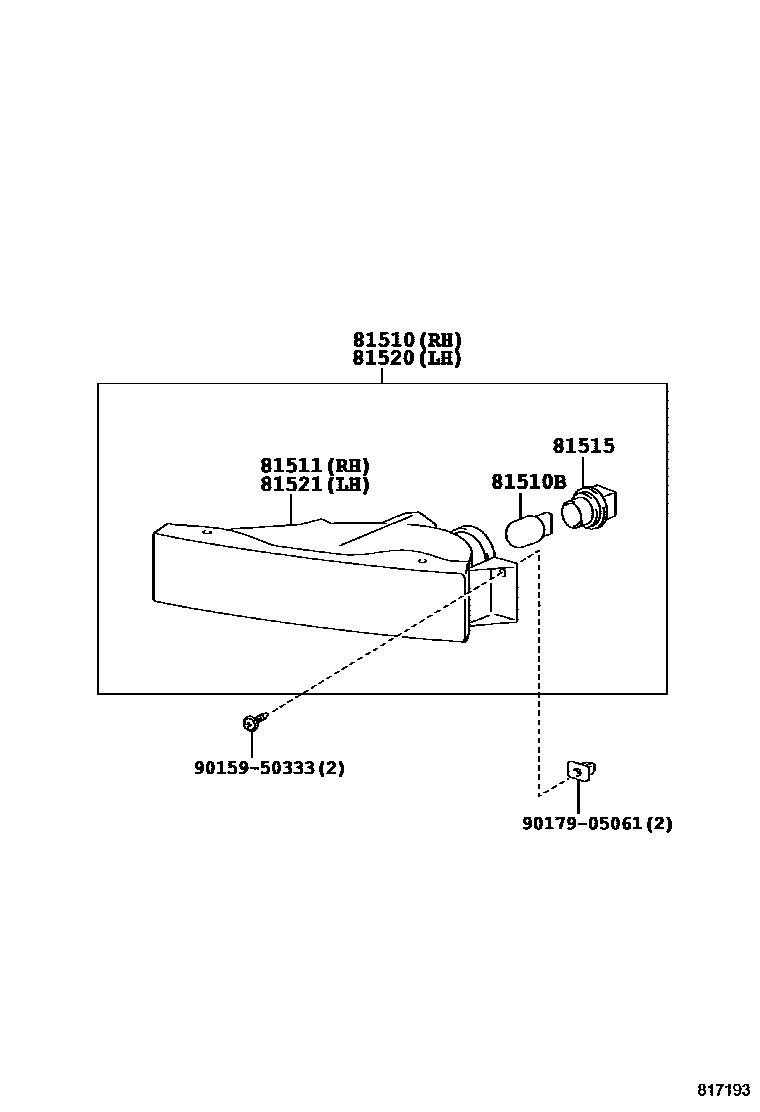

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-50030iUCF20199410-199707

main81510-50060iUCF20199707

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043×2iUCF20199410-199707

12V 21W

main90981-13050×2iUCF20199707

12V 21W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-50030iUCF20199410-199707

main81511-50060iUCF20199707

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main90075-99080×2iUCF20199410-199709

main90075-99128×2iUCF20199709

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-50030iUCF20199410-199707

main81520-50060iUCF20199707

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-50030iUCF20199410-199707

main81521-50060iUCF20199707

9015950333

main90159-50333

9017905061

main90179-05061

8 parts on this diagram · 2 diagrams in section
