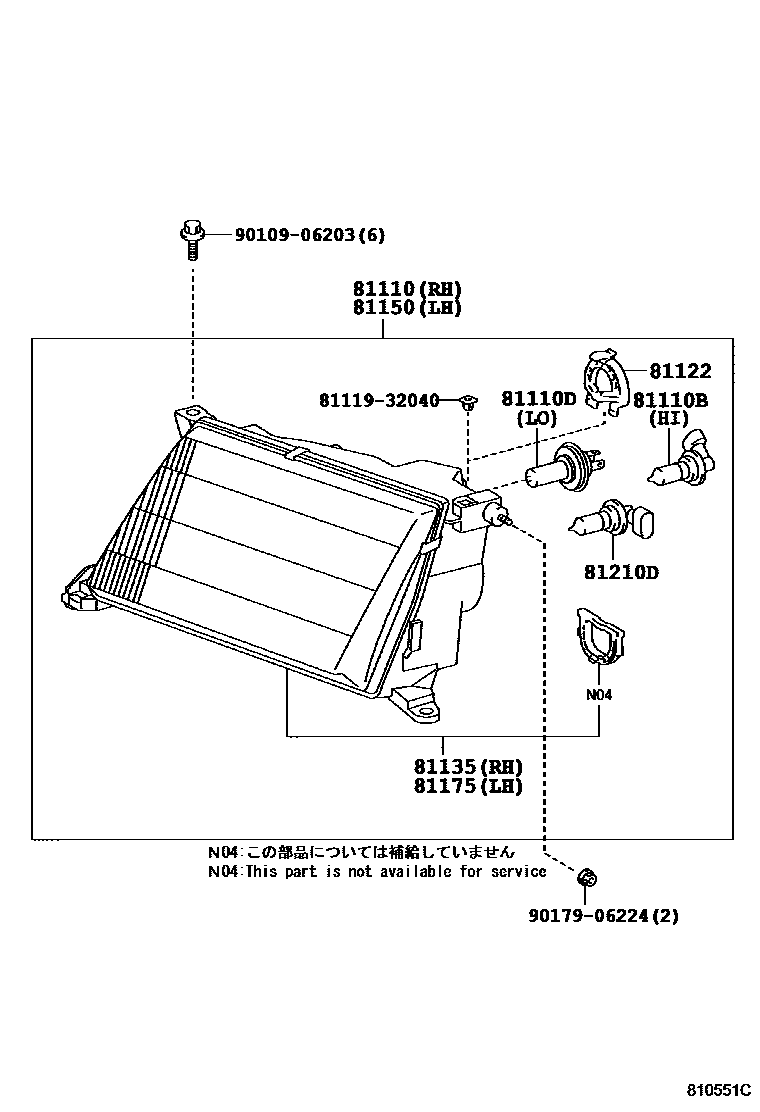

HEADLAMP

0001 1 0002 1HALOGEN HEADLAMP 0003 1DISCHARGE HEADLAMP

81110HEADLAMP ASSY, RH

main81110-50100iUCF20199410-199707

main81110-50160iUCF20..USA199707

main81110-50170iUCF20..CND; UCF20..USA199707-199808

DISCHARGE HEADLAMP

main81110-50172iUCF20199808

DISCHARGE HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iUCF20199410-199507

12V 65W

main90981-13046×2iUCF20199410-199707

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81040×2iUCF20..USA199707

12V 51W

main90981-13055×2iUCF20199410-199707

12V 60/55W,HALOGEN

main90981-20002×2iUCF20..CND; UCF20..USA199707

85V 35W; 85V 35W,DISCHARGE HEADLAMP

81122HOLDER, HEADLAMP

main81122-50100×2iUCF20199410-199707

81135UNIT ASSY, HEADLAMP, RH

main81130-50100iUCF20199410-199707

main81130-50160iUCF20..USA199707

main81130-50170iUCF20..CND; UCF20..USA199707-199808

DISCHARGE HEADLAMP

main81130-50171iUCF20199808

DISCHARGE HEADLAMP

81150HEADLAMP ASSY, LH

main81150-50100iUCF20199410-199707

main81150-50160iUCF20..USA199707

main81150-50170iUCF20..CND; UCF20..USA199707-199808

DISCHARGE HEADLAMP

main81150-50172iUCF20199808

DISCHARGE HEADLAMP

81175UNIT ASSY, HEADLAMP, LH

main81170-50100iUCF20199410-199707

main81170-50160iUCF20..USA199707

main81170-50170iUCF20..CND; UCF20..USA199707-199808

DISCHARGE HEADLAMP

main81170-50171iUCF20199808

DISCHARGE HEADLAMP

81210DBULB, FOG LAMP

main90080-81040×2iUCF20199410-199507

12V 51W

main90981-13047×2iUCF20199410-199707

12V 51W,HALOGEN

8111932040SCREW, HEADLAMP

main81119-32040

9010906203

main90109-06203

9017906224

main90179-06224

11 parts on this diagram · 3 diagrams in section
