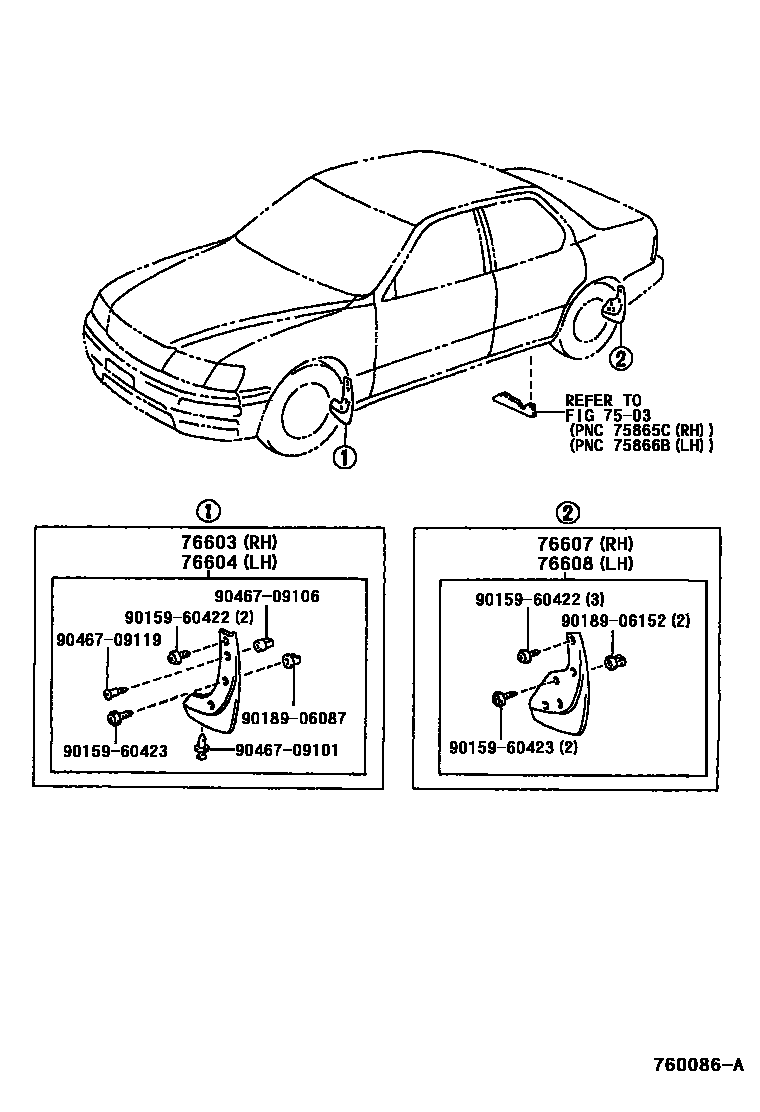

MUDGUARD & SPOILER

7503

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-59035iUCF20..CND199410

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-59035iUCF20..CND199410

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-59035iUCF20..CND199410-200008

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-59035iUCF20..CND199410

9015960422

main90159-60422

9015960423

main90159-60423

9018906087

main90189-06087

9018906152

main90189-06152

9046709101

main90467-09101

9046709106

main90467-09106

9046709119

main90467-09119

12 parts on this diagram · 1 diagram in section
