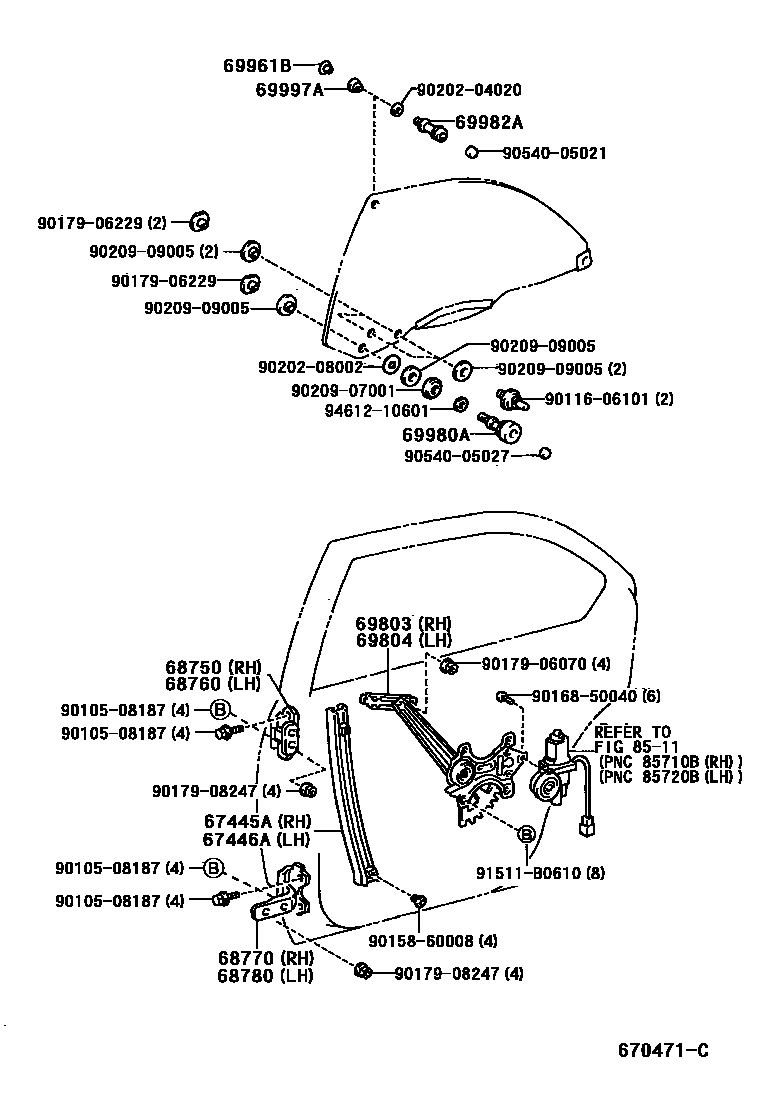

REAR DOOR WINDOW REGULATOR & HINGE

67445AGUIDE, REAR DOOR WINDOW, FRONT LOWER, RH

main67445-50020iUCF20199410

67446AGUIDE, REAR DOOR WINDOW, FRONT LOWER, LH

main67446-50020iUCF20199410

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-50030iUCF20199410

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-50030iUCF20199410

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-50030iUCF20199410

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-50030iUCF20199410

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-50020iUCF20199410

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-50020iUCF20199410

69961BRETAINER, REAR DOOR GLASS

main69961-50010×2iUCF20199410-199707

main69961-50020×2iUCF20199707

69980AROLLER ASSY, REAR DOOR GLASS GUIDE

main69980-50020×2iUCF20199410-199707

main69980-50040×2iUCF20199707

69982AROLLER, REAR DOOR GLASS GUIDE, NO.2

main69982-50030×2iUCF20199707

main69982-50040×2iUCF20199410-199707

69997ASPACER, REAR DOOR GLASS GUIDE

main69997-24010×2iUCF20199410

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508187

main90105-08187

9011606101

main90116-06101

9015860008

main90158-60008

9016850040

main90168-50040

9017906070

main90179-06070

9017906229

main90179-06229

9017908247

main90179-08247

9020204020

main90202-04020

9020208002

main90202-08002

9020907001

main90209-07001

9020909005

main90209-09005

9054005021

main90540-05021

9054005027

main90540-05027

91511B0610

main91511-B0610

9461210601

main94612-10601

28 parts on this diagram · 1 diagram in section
