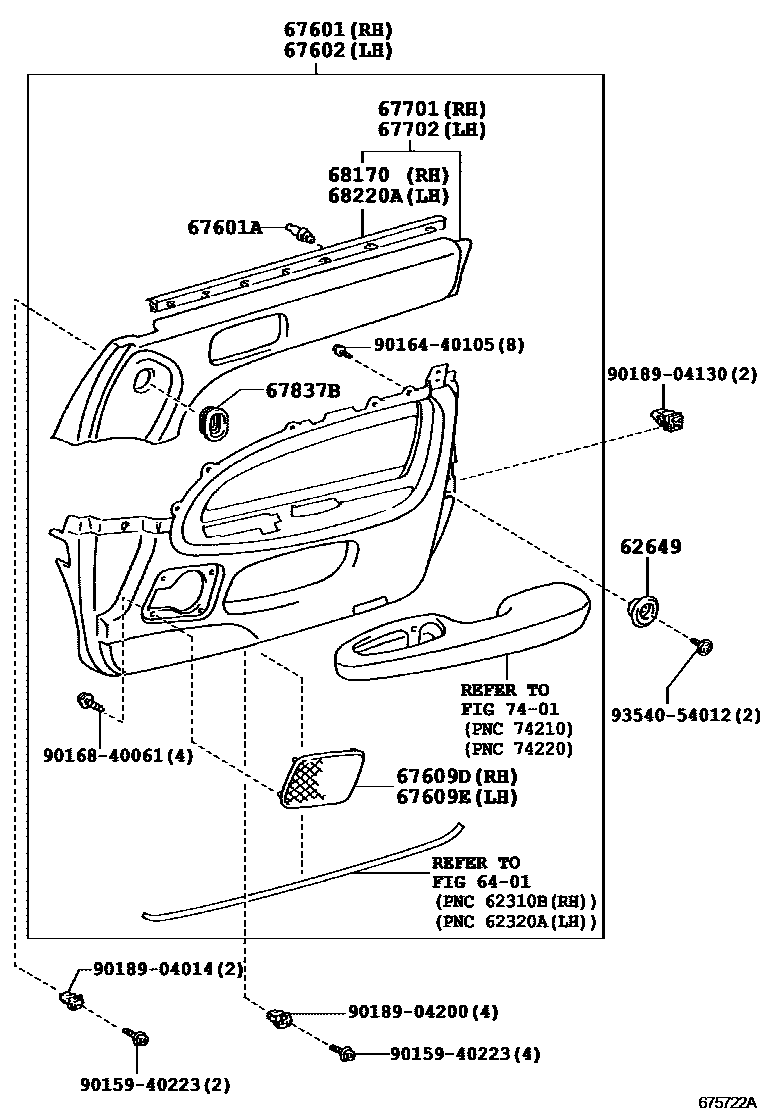

FRONT DOOR PANEL & GLASS

0001 1 0002 1

62649BRACKET, SIDE TRIM

main67649-50020-A0×2iUCF20199410-199707

IVORY,TRIM0#

main67649-50020-A1×2iUCF20199707

IVORY,TRIM0#

main67649-50020-B0×2iUCF20199410

BLUE GRAY,TRIM1#

main67649-50020-C0×2iUCF20199410

BLACK,TRIM2#

main67649-50020-G0×2iUCF20199410

AGATE,TRIM6#

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-50190-A0iUCF20199410-199707

IVORY,TRIM0#

main67610-50190-B0iUCF20199410-199707

BLUE GRAY,TRIM1#

main67610-50190-C0iUCF20199410-199707

BLACK,TRIM2#

main67610-50190-G0iUCF20199410-199707

AGATE,TRIM6#

main67610-50260-A0iUCF20199707

IVORY,TRIM0#

main67610-50260-B0iUCF20199707

BLUE GRAY,TRIM1#

main67610-50260-C0iUCF20199707

BLACK,TRIM2#

main67610-50260-G0iUCF20199707

AGATE,TRIM6#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12050×8iUCF20199410-199608

main67771-28020×8iUCF20199608

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-50190-A0iUCF20199410-199707

IVORY,TRIM0#

main67620-50190-B0iUCF20199410-199707

BLUE GRAY,TRIM1#

main67620-50190-C0iUCF20199410-199707

BLACK,TRIM2#

main67620-50190-G0iUCF20199410-199707

AGATE,TRIM6#

main67620-50260-A0iUCF20199707

IVORY,TRIM0#

main67620-50260-B0iUCF20199707

BLUE GRAY,TRIM1#

main67620-50260-C0iUCF20199707

BLACK,TRIM2#

main67620-50260-G0iUCF20199707

AGATE,TRIM6#

67609DGRILLE SUB-ASSY, FRONT DOOR SPEAKER, RH

main67609-50020-A0iUCF20199410-199707

IVORY,TRIM0#

main67609-50020-A1iUCF20199707-200008

IVORY,TRIM0#

main67609-50020-B0iUCF20199410-200008

BLUE GRAY,TRIM1#

main67609-50020-C0iUCF20199410-200008

BLACK,TRIM2#

main67609-50020-G0iUCF20199410-200008

AGATE,TRIM6#

67609EGRILLE SUB-ASSY, FRONT DOOR SPEAKER, LH

main67709-50020-A0iUCF20199410-199707

IVORY,TRIM0#

main67709-50020-A1iUCF20199707-200008

IVORY,TRIM0#

main67709-50020-B0iUCF20199410-200008

BLUE GRAY,TRIM1#

main67709-50020-C0iUCF20199410-200008

BLACK,TRIM2#

main67709-50020-G0iUCF20199410-200008

AGATE,TRIM6#

67701COVER SUB-ASSY, FRONT DOOR TRIM, RH

main67701-50010-B0iUCF20199410

DK.BLUE GRAY,TRIM1#

main67701-50010-C0iUCF20199410

BLACK,TRIM2#

main67701-50010-E0iUCF20199410-199707

OAK,TRIM0#

main67701-50010-E1iUCF20199707

SANDAL WOOD,TRIM0#

main67701-50010-G0iUCF20199410

DK.AGATE,TRIM6#

67702COVER SUB-ASSY, FRONT DOOR TRIM, LH

main67702-50010-B0iUCF20199410

DK.BLUE GRAY,TRIM1#

main67702-50010-C0iUCF20199410

BLACK,TRIM2#

main67702-50010-E0iUCF20199410-199707

OAK,TRIM0#

main67702-50010-E1iUCF20199707

SANDAL WOOD,TRIM0#

main67702-50010-G0iUCF20199410

DK.AGATE,TRIM6#

67837BSEAL, FRONT DOOR DUST PROOF

main67837-50010×2iUCF20199410-199508

main67837-50030×2iUCF20199508

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-50020iUCF20199410-199703

main68170-50021iUCF20199703

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68220-50020iUCF20199410-199703

main68220-50021iUCF20199703

7401ARMREST & VISOR

→ Go to FIG 74-01

9015940223

main90159-40223

9016440105

main90164-40105

9016840061

main90168-40061

9018904014

main90189-04014

9018904130

main90189-04130

9018904200

main90189-04200

9354054012

main93540-54012

20 parts on this diagram · 2 diagrams in section
