E
EPC Data

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

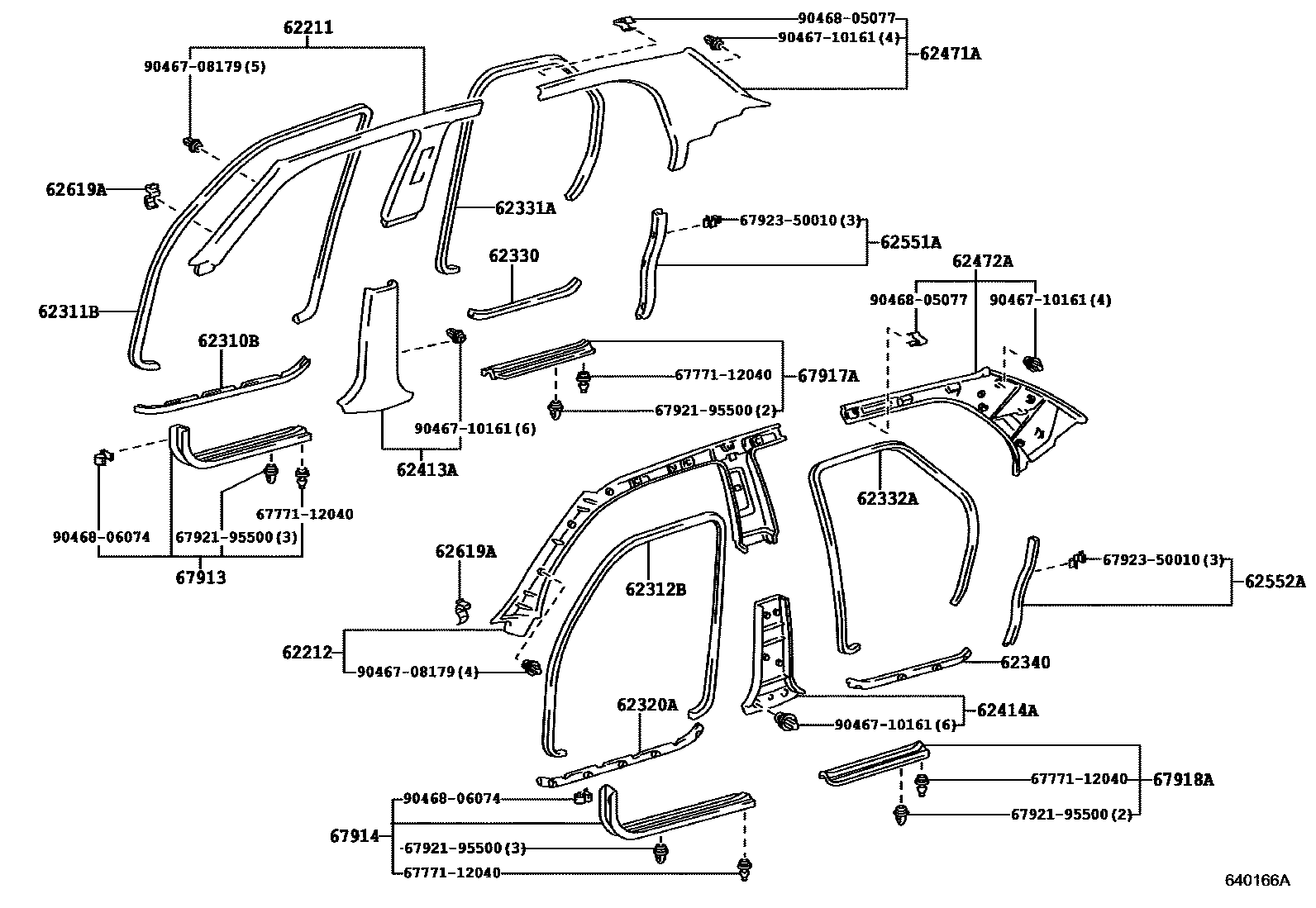

Parts diagram
62211GARNISH, FRONT PILLAR, RH
main62210-50030-A0i199410-199707
IVORY,TRIM0#
main62210-50030-B0i199410-199707
BLUE GRAY,TRIM1#,2#
main62210-50030-G0i199410-199707
AGATE,TRIM6#
main62210-50070-A0i199707
IVORY,TRIM0#
main62210-50070-B0i199707
BLUE GRAY,TRIM1#,2#
main62210-50070-G0i199707
AGATE,TRIM6#
62212GARNISH, FRONT PILLAR, LH
main62220-50030-A0i199410-199707
IVORY,TRIM0#
main62220-50030-B0i199410-199707
BLUE GRAY,TRIM1#,2#
main62220-50030-G0i199410-199707
AGATE,TRIM6#
main62220-50070-A0i199707
IVORY,TRIM0#
main62220-50070-B0i199707
BLUE GRAY,TRIM1#,2#
main62220-50070-G0i199707
AGATE,TRIM6#
62310BWEATHERSTRIP ASSY, FRONT DOOR OPENING TRIM, RH
main62310-50020i199410
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-50020-A0i199410-199707
IVORY,TRIM0#
main62311-50020-A1i199707
IVORY,TRIM0#
main62311-50020-B0i199410
BLUE GRAY,TRIM1#
main62311-50020-C0i199410
BLACK,TRIM2#
main62311-50020-G0i199410
AGATE,TRIM6#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-50020-A0i199410-199707
IVORY,TRIM0#
main62312-50020-A1i199707
IVORY,TRIM0#
main62312-50020-B0i199410
BLUE GRAY,TRIM1#
main62312-50020-C0i199410
BLACK,TRIM2#
main62312-50020-G0i199410
AGATE,TRIM6#
62320AWEATHERSTRIP ASSY, FRONT DOOR OPENING TRIM, LH
main62320-50020i199410
62330WEATHERSTRIP ASSY, REAR DOOR OPENING TRIM, RH
main62330-50020i199410
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-50020-A0i199410-199707
IVORY,TRIM0#
main62331-50020-A1i199707
IVORY,TRIM0#
main62331-50020-B0i199410
BLUE GRAY,TRIM1#
main62331-50020-C0i199410
BLACK,TRIM2#
main62331-50020-G0i199410
AGATE,TRIM6#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-50020-A0i199410-199707
IVORY,TRIM0#
main62332-50020-A1i199707
IVORY,TRIM0#
main62332-50020-B0i199410
BLUE GRAY,TRIM1#
main62332-50020-C0i199410
BLACK,TRIM2#
main62332-50020-G0i199410
AGATE,TRIM6#
62340WEATHERSTRIP ASSY, REAR DOOR OPENING TRIM, LH
main62340-50020i199410
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-50040-A0i199410-199604
IVORY,TRIM0#
main62413-50040-B0i199410-199604
BLUE GRAY,TRIM1#
main62413-50040-C0i199410-199604
BLACK,TRIM2#
main62413-50040-G0i199410-199604
AGATE,TRIM6#
main62413-50041-A0i199604-199707
IVORY,TRIM0#
main62413-50041-A1i199707-199906
IVORY,TRIM0#
main62413-50041-B0i199604-199906
BLUE GRAY,TRIM1#
main62413-50041-C0i199604-199906
BLACK,TRIM2#
main62413-50041-G0i199604-199906
AGATE,TRIM6#
main62413-50042-A1i199906
IVORY,TRIM0#
main62413-50042-B0i199906
BLUE GRAY,TRIM1#
main62413-50042-C0i199906
BLACK,TRIM2#
main62413-50042-G0i199906
AGATE,TRIM6#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-50040-A0i199410-199604
IVORY,TRIM0#
main62414-50040-B0i199410-199604
BLUE GRAY,TRIM1#
main62414-50040-C0i199410-199604
BLACK,TRIM2#
main62414-50040-G0i199410-199604
AGATE,TRIM6#
main62414-50041-A0i199604-199707
IVORY,TRIM0#
main62414-50041-A1i199707-199906
IVORY,TRIM0#
main62414-50041-B0i199604-199906
BLUE GRAY,TRIM1#
main62414-50041-C0i199604-199906
BLACK,TRIM2#
main62414-50041-G0i199604-199906
AGATE,TRIM6#
main62414-50042-A1i199906
IVORY,TRIM0#
main62414-50042-B0i199906
BLUE GRAY,TRIM1#
main62414-50042-C0i199906
BLACK,TRIM2#
main62414-50042-G0i199906
AGATE,TRIM6#
62471AGARNISH, ROOF SIDE, INNER RH
main62470-50030-A0i199410-199707
IVORY,TRIM0#
main62470-50030-B0i199410-199707
BLUE GRAY,TRIM1#,2#
main62470-50030-G0i199410-199707
AGATE,TRIM6#
main62470-50040-A0i199707
IVORY,TRIM0#
main62470-50040-B0i199707
BLUE GRAY,TRIM1#,2#
main62470-50040-G0i199707
AGATE,TRIM6#
62472AGARNISH, ROOF SIDE, INNER LH
main62480-50030-A0i199410-199707
IVORY,TRIM0#
main62480-50030-B0i199410-199707
BLUE GRAY,TRIM1#,2#
main62480-50030-G0i199410-199707
AGATE,TRIM6#
main62480-50040-A0i199707
IVORY,TRIM0#
main62480-50040-B0i199707
BLUE GRAY,TRIM1#,2#
main62480-50040-G0i199707
AGATE,TRIM6#
62551ACOVER, REAR SEAT SIDE, RH
main62551-50040-A0i199410-199707
IVORY,TRIM0#
main62551-50040-A1i199707
IVORY,TRIM0#
main62551-50040-B0i199410
BLUE GRAY,TRIM1#
main62551-50040-C0i199410
BLACK,TRIM2#
main62551-50040-G0i199410
AGATE,TRIM6#
62552ACOVER, REAR SEAT SIDE, LH
main62552-50020-A0i199410-199707
IVORY,TRIM0#
main62552-50020-A1i199707
IVORY,TRIM0#
main62552-50020-B0i199410
BLUE GRAY,TRIM1#
main62552-50020-C0i199410
BLACK,TRIM2#
main62552-50020-G0i199410
AGATE,TRIM6#
62619APLATE, SIDE TRIM SET
main62619-50010×4i199410
67913PLATE, FRONT DOOR SCUFF, RH
main67913-50020-A0i199410-199707
IVORY,TRIM0#
main67913-50020-B0i199410-199707
BLUE GRAY,TRIM1#
main67913-50020-C0i199410-199707
BLACK,TRIM2#
main67913-50020-G0i199410-199707
AGATE,TRIM6#
main67913-50040-A0i199707
IVORY,TRIM0#
main67913-50040-B0i199707
BLUE GRAY,TRIM1#
main67913-50040-C0i199707
BLACK,TRIM2#
main67913-50040-G0i199707
AGATE,TRIM6#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-50020-A0i199410-199707
IVORY,TRIM0#
main67914-50020-B0i199410-199707
BLUE GRAY,TRIM1#
main67914-50020-C0i199410-199707
BLACK,TRIM2#
main67914-50020-G0i199410-199707
AGATE,TRIM6#
main67914-50040-A0i199707
IVORY,TRIM0#
main67914-50040-B0i199707
BLUE GRAY,TRIM1#
main67914-50040-C0i199707
BLACK,TRIM2#
main67914-50040-G0i199707
AGATE,TRIM6#
67917APLATE, REAR DOOR SCUFF, RH
main67917-50020-A0i199410-199707
IVORY,TRIM0#
main67917-50020-B0i199410-199707
BLUE GRAY,TRIM1#
main67917-50020-C0i199410-199707
BLACK,TRIM2#
main67917-50020-G0i199410-199707
AGATE,TRIM6#
main67917-50040-A0i199707
IVORY,TRIM0#
main67917-50040-B0i199707
BLUE GRAY,TRIM1#
main67917-50040-C0i199707
BLACK,TRIM2#
main67917-50040-G0i199707
AGATE,TRIM6#
67918APLATE, REAR DOOR SCUFF, LH
main67918-50020-A0i199410-199707
IVORY,TRIM0#
main67918-50020-B0i199410-199707
BLUE GRAY,TRIM1#
main67918-50020-C0i199410-199707
BLACK,TRIM2#
main67918-50020-G0i199410-199707
AGATE,TRIM6#
main67918-50040-A0i199707
IVORY,TRIM0#
main67918-50040-B0i199707
BLUE GRAY,TRIM1#
main67918-50040-C0i199707
BLACK,TRIM2#
main67918-50040-G0i199707
AGATE,TRIM6#
6777112040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12040
6792195500RETAINER, FRONT DOOR SCUFF PLATE
main67921-95500
6792350010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-50010
9046708179
main90467-08179
9046710161
main90467-10161
9046805077
main90468-05077
9046806074
main90468-06074

28 parts on this diagram · 1 diagram in section
