MAT & CARPET

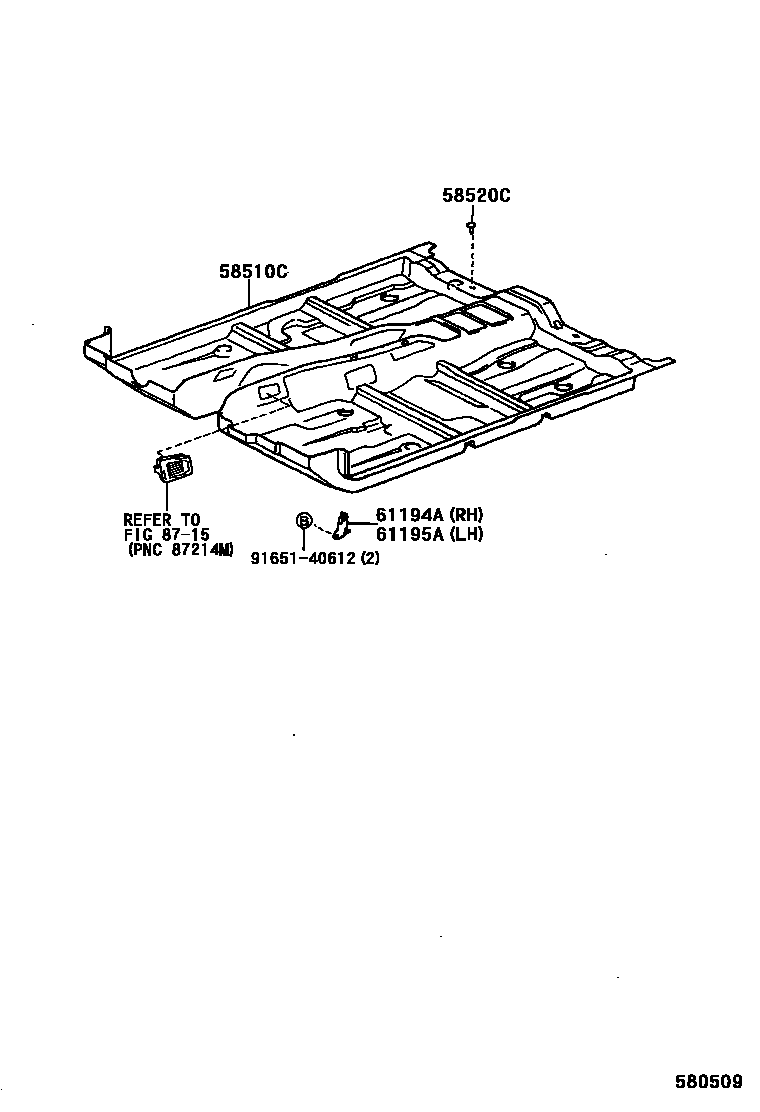

Parts diagram

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-50250-A0i199410-199608

IVORY,TRIM0#

main58510-50250-B0i199410-199608

BLUE GRAY,TRIM1#

main58510-50250-C0i199410-199608

BLACK,TRIM2#

main58510-50250-G0i199410-199608

AGATE,TRIM6#

main58510-50251-A0i199608-199707

IVORY,TRIM0#

main58510-50251-B0i199608-199707

BLUE GRAY,TRIM1#

main58510-50251-C0i199608-199707

BLACK,TRIM2#

main58510-50251-G0i199608-199707

AGATE,TRIM6#

main58510-50270-A0i199410-199608

IVORY,TRIM0#

main58510-50270-B0i199410-199608

BLUE GRAY,TRIM1#

main58510-50270-C0i199410-199608

BLACK,TRIM2#

main58510-50270-G0i199410-199608

AGATE,TRIM6#

main58510-50271-A0i199608-199707

IVORY,TRIM0#

main58510-50271-B0i199608-199707

BLUE GRAY,TRIM1#

main58510-50271-C0i199608-199707

BLACK,TRIM2#

main58510-50271-G0i199608-199707

AGATE,TRIM6#

main58510-50410-A0i199707

IVORY,TRIM0#

main58510-50410-B0i199707

BLUE GRAY,TRIM1#

main58510-50410-C0i199707

BLACK,TRIM2#

main58510-50410-G0i199707

AGATE,TRIM6#

main58510-50430-A0i199707

IVORY,TRIM0#

main58510-50430-B0i199707

BLUE GRAY,TRIM1#

main58510-50430-C0i199707

BLACK,TRIM2#

main58510-50430-G0i199707

AGATE,TRIM6#

main58510-50460-A0i199808

TAIWAN SPEC,IVORY,TRIM0#

main58510-50460-B0i199808

TAIWAN SPEC,BLUE GRAY,TRIM1#

main58510-50460-C0i199808

TAIWAN SPEC,BLACK,TRIM2#

main58510-50460-G0i199808

TAIWAN SPEC,AGATE,TRIM6#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0×2i199410-200008

BLACK,TRIM0#,1#,2#,6#

main90467-06016-P0×2i199707-200008

GRAY,TRIM03,15,27,62

61194ABRACKET, COWL SIDE TRIM, RH

main61194-50020i199410

61195ABRACKET, COWL SIDE TRIM, LH

main61195-50020i199410-199707

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9165140612

main91651-40612

6 parts on this diagram · 1 diagram in section
