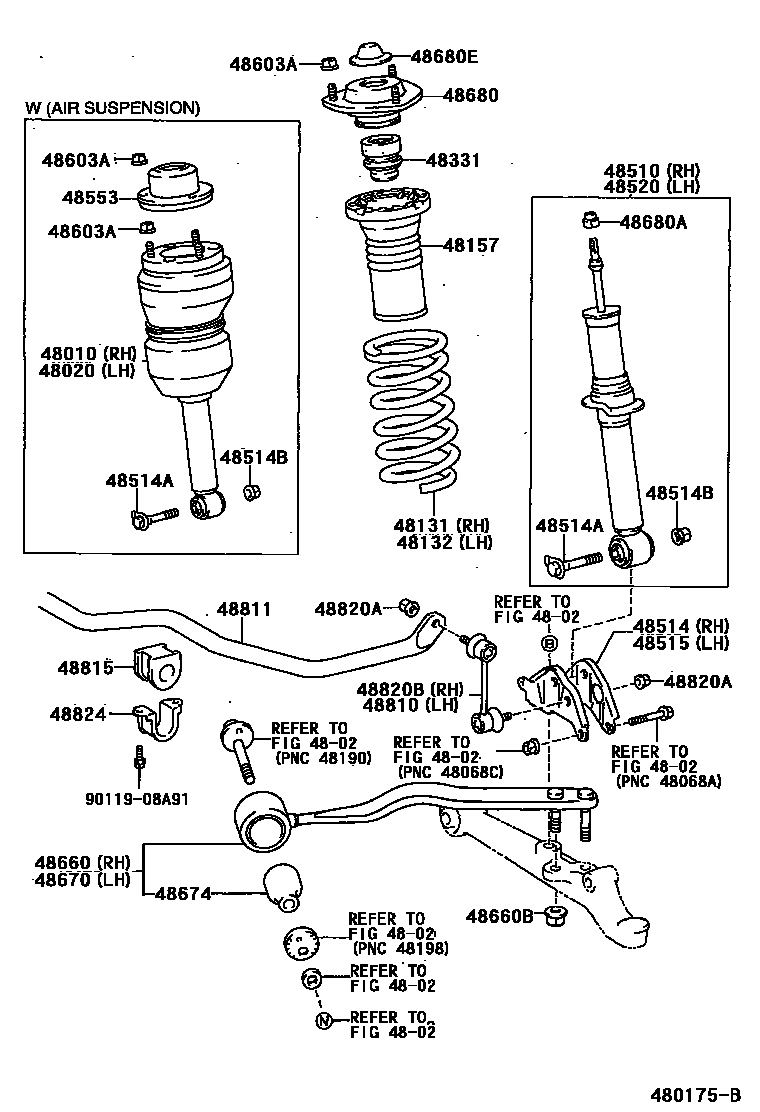

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48010CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER

main48010-50100iUCF20..USA199707

main48010-59015iUCF20..USA199410-199707

sub48010-50090

4802

48020CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER

main48010-50100iUCF20..USA199707

main48010-59015iUCF20..USA199410-199707

sub48010-50090

48131SPRING, FRONT COIL, RH

main48131-50070iUCF20..USA199410-199707

main48131-50080iUCF20..CND199410-199707

main48131-50090iUCF20..USA199410-199412

MIDDLE SOUTH AMERICA SPEC

main48131-50100iUCF20199707

main48131-50110iUCF20..USA199707

ROUGH ROAD PACKAGE

48132SPRING, FRONT COIL, LH

main48131-50070iUCF20..USA199410-199707

main48131-50080iUCF20..CND199410-199707

main48131-50090iUCF20..USA199410-199412

MIDDLE SOUTH AMERICA SPEC

main48131-50100iUCF20199707

main48131-50110iUCF20..USA199707

ROUGH ROAD PACKAGE

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-50010×2iUCF20199410

48331BUMPER, FRONT SPRING, NO.1

main48331-50060×2iUCF20199410-199707

main48331-50070×2iUCF20199707

sub48331-50071

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-59085iUCF20199410-199707

sub48510-59086

main48510-59105iUCF20199707

sub48510-59106

48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH

main48514-50011iUCF20199410

48514ABOLT(FOR FRONT SHOCK ABSORBER BRACKET LOWER)

main90105-14087×2iUCF20199410

48514BNUT(FOR FRONT SHOCK ABSORBER BRACKET LOWER)

main90179-14045×2iUCF20199410

48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH

main48515-50011iUCF20199410

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-59085iUCF20199410-199707

sub48510-59086

main48510-59105iUCF20199707

sub48510-59106

48553CAP, SHOCK ABSORBER, UPPER

main48553-50090×2iUCF20..USA199410

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10145×6iUCF20199707

main90179-10174×12iUCF20..USA199410

W(AIR SUSPENSION)

48660BAR ASSY, STRUT, RH

main48660-50040iUCF20199410-199601

main48660-50041iUCF20199601-200008

sub48660-40020

48660BNUT(FOR STRUT BAR)

main90179-14025×4iUCF20199410

48670BAR ASSY, STRUT, LH

main48670-50040iUCF20199410-199601

main48670-50041iUCF20199601-200008

sub48670-40010

48674CUSHION, STRUT BAR

main48674-50050×2iUCF20199410-199502

main48674-50051×2iUCF20199502-199601

main48674-50052×2iUCF20199601

sub48674-40050

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-50090×2iUCF20199410-199707

main48680-50100×2iUCF20199707

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-12002×2iUCF20200003

main94187-11200×2iUCF20199410-200003

48680EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT)

main90950-01659×2iUCF20199410

48810LINK ASSY, FRONT STABILIZER, LH

main48810-50010iUCF20199410-199508

main48810-50011iUCF20199508

48811BAR, STABILIZER, FRONT

main48811-50050iUCF20..USA199410-199707

main48811-50060iUCF20..USA199410-199707

W(AIR SUSPENSION)

main48811-50070iUCF20..CND199410-199707

main48811-50080iUCF20199707

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-50110×2iUCF20199410-199503

main48815-50111×2iUCF20199503-199707

sub48815-50112

main48815-50120×2iUCF20..USA199410-199503

W(AIR SUSPENSION)

main48815-50121×2iUCF20..USA199503-199707

W(AIR SUSPENSION)

sub48815-50122

main48815-50150×2iUCF20199707

sub48815-50151

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12047×4iUCF20199410

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-50010iUCF20199410-199508

main48820-50011iUCF20199508

48824BRACKET, STABILIZER, FRONT

main48824-50020×2iUCF20199410

9011908A91

main90119-08A91

29 parts on this diagram · 2 diagrams in section
