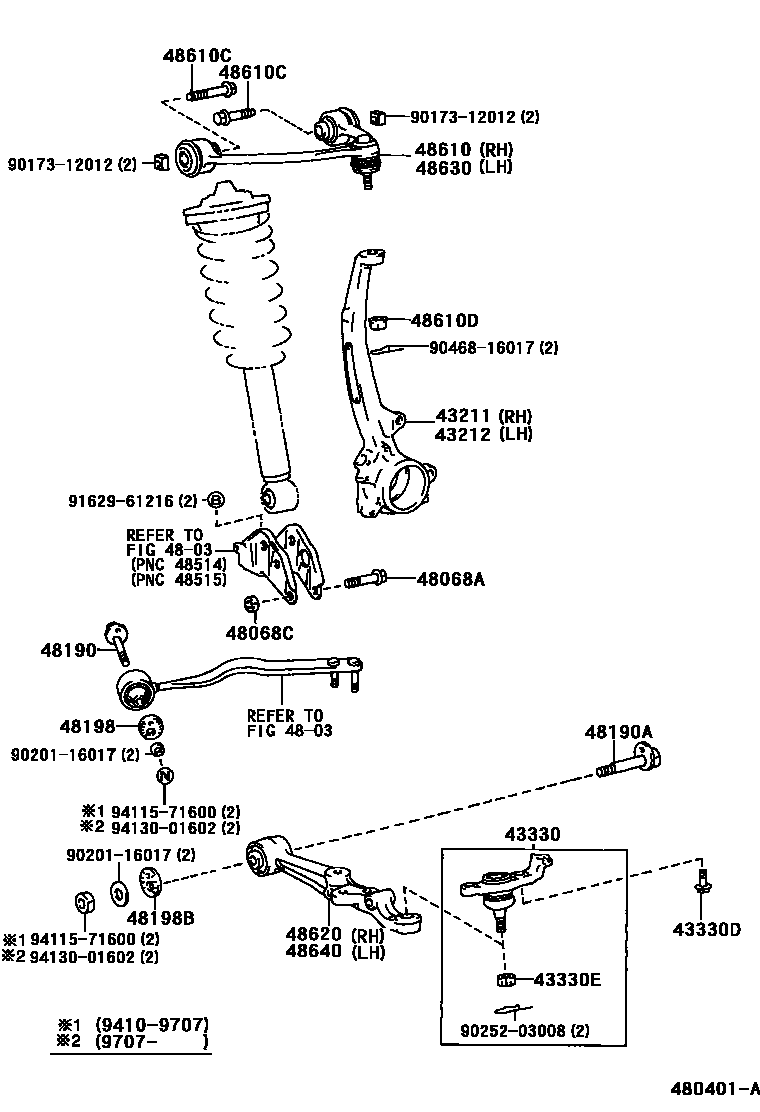

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-50050iUCF20199410

43212KNUCKLE, STEERING, LH

main43212-50050iUCF20199410

43330JOINT ASSY, LOWER BALL, FRONT

main43330-59035iUCF20199410-199608

RH

main43330-59036iUCF20199608-199707

RH

main43330-59045iUCF20199707

RH

main43340-59035iUCF20199410-199608

LH

main43340-59036iUCF20199608-199707

LH

main43340-59045iUCF20199707

LH

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90105-12141iUCF20199410

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-16007iUCF20199410

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12281iUCF20199410

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90179-12025iUCF20199410

48190CAM ASSY, CAMBER ADJUST

main48190-24020iUCF20199410

48190ACAM ASSY, CAMBER ADJUST, NO.2

main48190-50040iUCF20199410

48198CAM, CAMBER ADJUST, NO.2

main48198-50030iUCF20199410

48198BCAM, CAMBER ADJUST, NO.2

main48198-50020iUCF20199410

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-59015iUCF20199410

48610CBOLT(FOR SUSPENSION UPPER ARM)

main90105-12258iUCF20199410

48610DNUT(FOR SUSPENSION UPPER ARM)

main90171-12002iUCF20199410

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

main48068-50020iUCF20199410

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-59015iUCF20199410

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

main48069-50020iUCF20199410

9017312012

main90173-12012

9020116017

main90201-16017

9025203008

main90252-03008

9046816017

main90468-16017

9162961216

main91629-61216

9411571600

main94115-71600

9413001602

main94130-01602

25 parts on this diagram · 1 diagram in section
