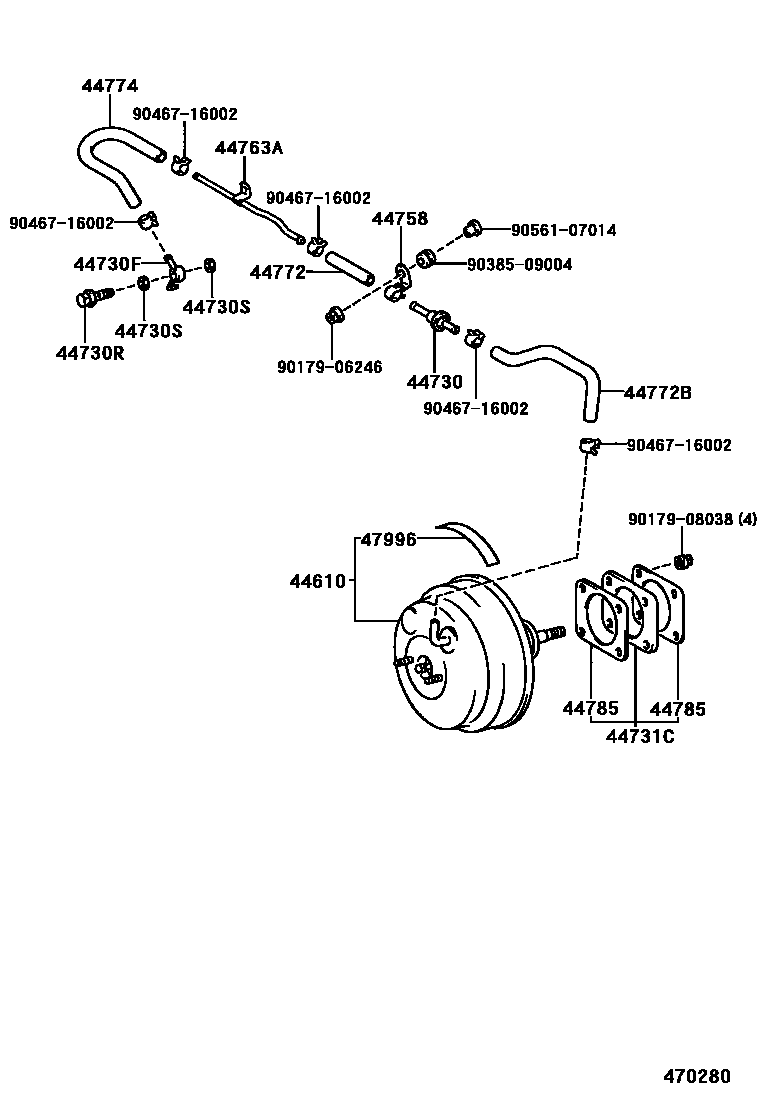

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-50170iUCF20..USA199410-199608

main44610-50171iUCF20..USA199608-199707

main44610-50190iUCF20..CND; UCF20..USA199410-199608

W(TRACTION CONTROL)

main44610-50191iUCF20..CND; UCF20..USA199608-199707

W(TRACTION CONTROL)

main44610-50240iUCF20199707

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-50010iUCF20199410-199707

main44730-50020iUCF20199707

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90405-09177iUCF20199410-199707

main90904-05004iUCF20199707

44730RBOLT, UNION(FOR VACUUM HOSE UNION)

main90401-12012iUCF20199410

44730SGASKET(FOR VACUUM HOSE UNION)

main90430-12005×2iUCF20199410

44731CBRACKET, BRAKE BOOSTER

main44731-50011iUCF20199410-199707

main44731-50020iUCF20199707

44758BRACKET, VACUUM CHECK VALVE

main44758-40020iUCF20199707

main44758-50011iUCF20199410-199707

44763ATUBE, HOSE TO HOSE, NO.1

main44763-50041iUCF20199410-199707

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-33040iUCF20199410-199707

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-50040iUCF20199410-199707

44774HOSE, UNION TO CONNECTOR TUBE

main44774-50041iUCF20199410-199707

44785GASKET, BRAKE BOOSTER

main44785-50010×2iUCF20199410

47996LABEL, BRAKE BLEED NOTICE

main47996-50010iUCF20199410-199608

main47996-50030iUCF20199608-199707

main47996-50050iUCF20199707

9017906246

main90179-06246

9017908038

main90179-08038

9038509004

main90385-09004

9046716002

main90467-16002

9056107014

main90561-07014

18 parts on this diagram · 2 diagrams in section
