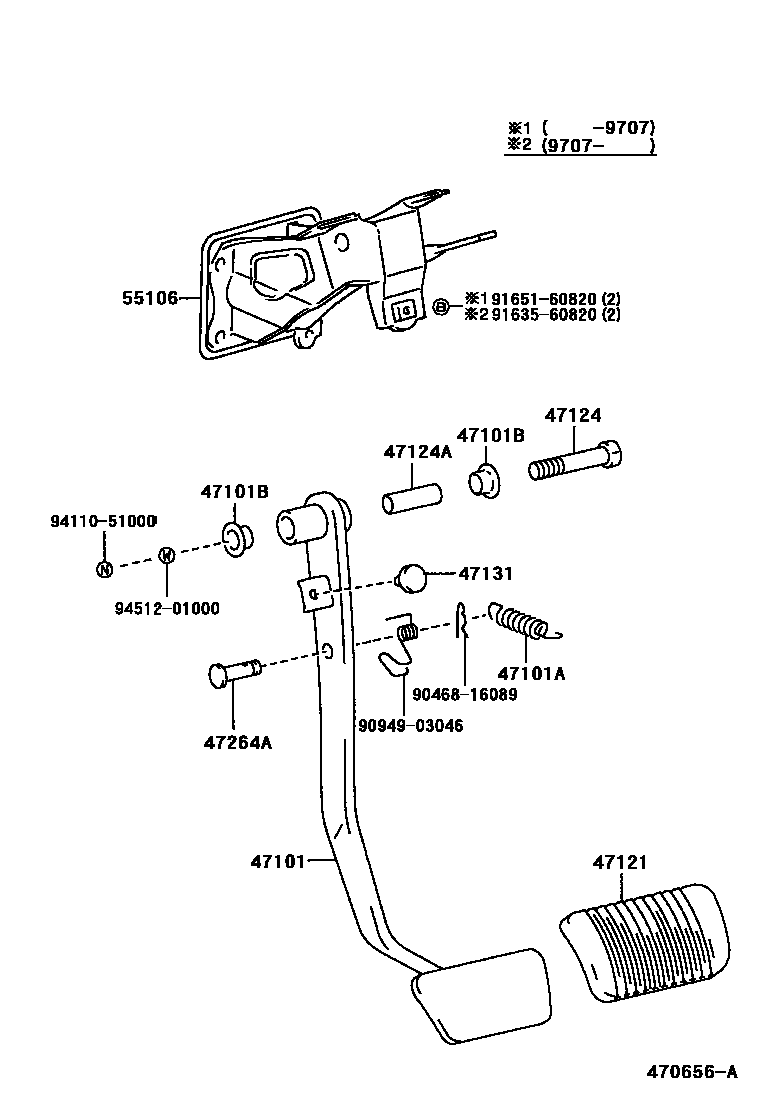

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-50030iUCF20199410

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-16026iUCF20199808

main90905-07007iUCF20199410-199808

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iUCF20199410

47121PAD, BRAKE PEDAL

main47121-50010iUCF20199410

47124SHAFT, BRAKE PEDAL

main90101-10039iUCF20199410

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iUCF20199410

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iUCF20199410

47264APIN(FOR PUSH ROD)

main90249-10064iUCF20199410-199507

main90249-10199iUCF20199507

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-50030iUCF20199410-199707

main55106-50050iUCF20199707

9046816089

main90468-16089

9094903046

main90949-03046

9163560820

main91635-60820

9165160820

main91651-60820

9411051000

main94110-51000

9451201000

main94512-01000

15 parts on this diagram · 1 diagram in section
