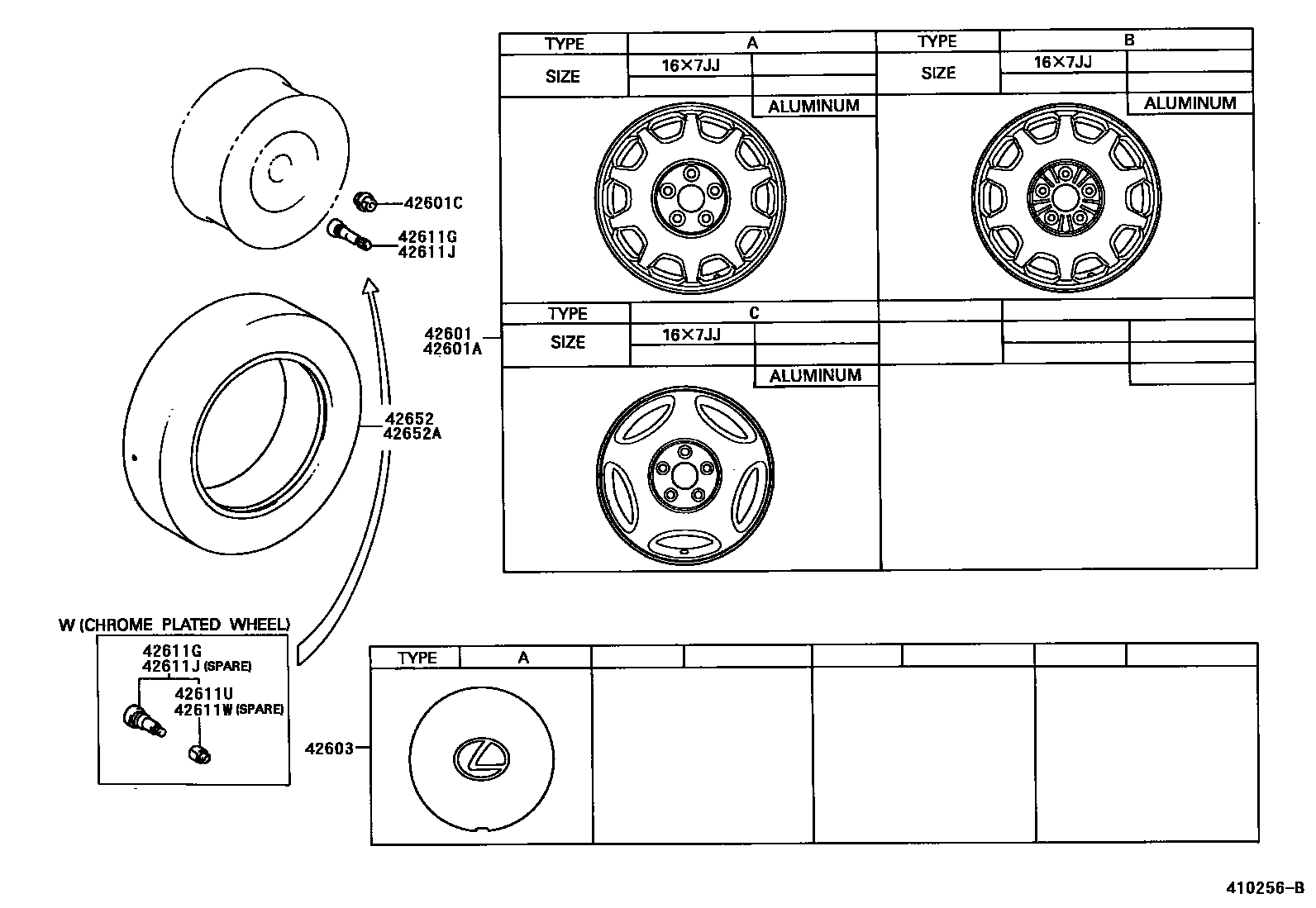

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-50110×4iUCF20199410-199707

16X7JJ,TYPE A:REFER TO ILLUSTRATION

main42611-50120×4iUCF20199410-199707

16X7JJ,TYPE B:REFER TO ILLUSTRATION

main42611-50140×4iUCF20199410-199505

16X7JJ,TYPE A:REFER TO ILLUSTRATION, CHROME PLATED WHEEL

main42611-50160×4iUCF20199505-199707

16X7JJ,TYPE A:REFER TO ILLUSTRATION, CHROME PLATED WHEEL

main42611-50170×4iUCF20199707

16X7JJ,TYPE C:REFER TO ILLUSTRATION

main42611-50180×4iUCF20199707

16X7JJ,TYPE C:REFER TO ILLUSTRATION, CHROME PLATED WHEEL,TOYOTA

main42611-50220×4iUCF20..USA199704-199707

16X7JJ,COACH EDITION;TYPE C:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-50110iUCF20199410-199707

16X7JJ,TYPE A:REFER TO ILLUSTRATION

main42611-50120iUCF20199410-199707

16X7JJ,TYPE B:REFER TO ILLUSTRATION

main42611-50170iUCF20199707

16X7JJ,TYPE C:REFER TO ILLUSTRATION

main42611-50180iUCF20199908

16X7JJ,TYPE C:REFER TO ILLUSTRATION, CHROME PLATED WHEEL,TOYOTA

42601CNUT, HUB (FOR AXLE)

main90942-01058×20iUCF20200001-200007

LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA)

main90942-01062×20iUCF20199410

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30360×4iUCF20200001-200007

*CHR,LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA)

main42603-50060×4iUCF20199410-199707

TYPE A:REFER TO ILLUSTRATION

main42603-50070×4iUCF20199410-199707

TYPE A:REFER TO ILLUSTRATION,W(CHROME PLATED WHEEL)

main42603-50100×4iUCF20199707

TYPE A:REFER TO ILLUSTRATION

main42603-50120×4iUCF20199707

TYPE A:REFER TO ILLUSTRATION,W(CHROME PLATED WHEEL)

main42603-50130×4iUCF20..USA199704-199707

COACH EDITION;TYPE A:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iUCF20199410

main90942-05028×4iUCF20199505

W(CHROME PLATED WHEEL)

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iUCF20199410-199707

main90942-05028iUCF20199908

W(CHROME PLATED WHEEL)

42611UCAP, TIRE VALVE

main90942-05029×4iUCF20199505

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-05029iUCF20199908

42652TIRE

main42652-50230×4iUCF20199410-199707

225/60R16 97V,*B/S

main42652-50250×4iUCF20199410

225/60R16 97V,*D/L

main42652-50310×4iUCF20199707

225/60R16 97V,*B/S

42652ATIRE (FOR SPARE)

main42652-50230iUCF20199410-199707

225/60R16 97V,*B/S

main42652-50250iUCF20199410

225/60R16 97V,*D/L

main42652-50310iUCF20199707

225/60R16 97V,*B/S

10 parts on this diagram · 2 diagrams in section
