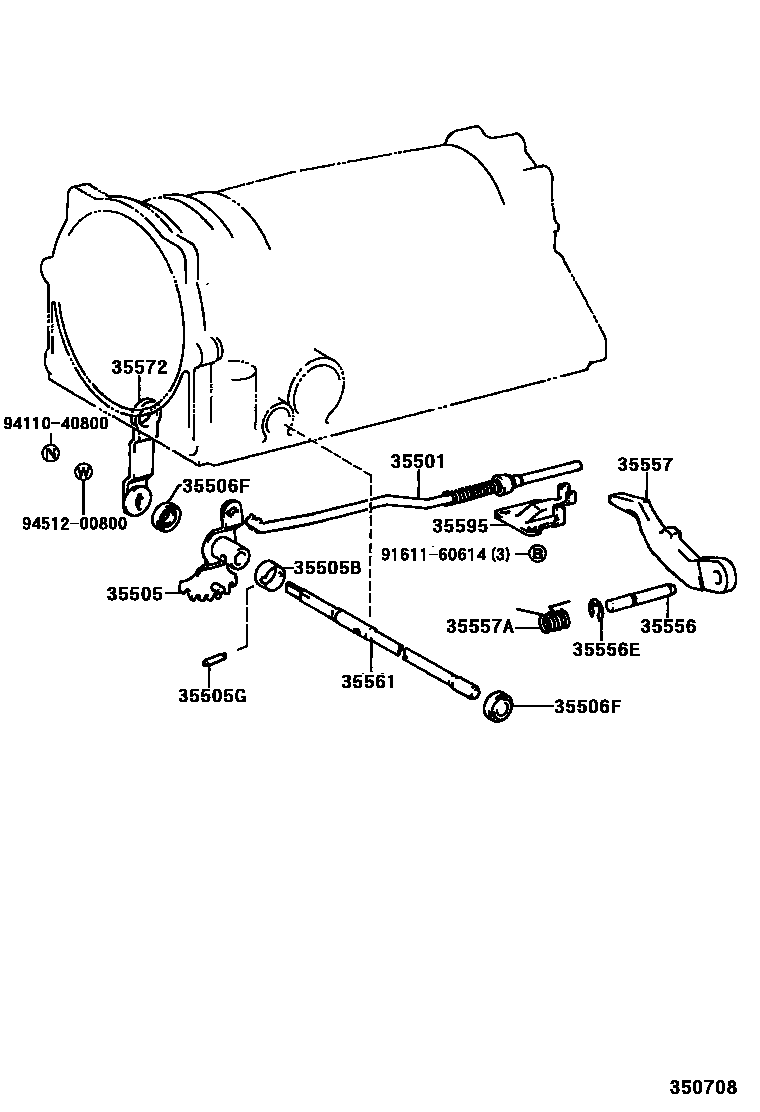

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340E,A650E 0002 1A340E

35501ROD SUB-ASSY, PARKING LOCK

main35501-30010iUCF20199410-199707

main35501-30020iUCF20199707-200008

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-50020iUCF20199410-200008

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iUCF20199410-200008

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iUCF20199410-200008

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iUCF20199410-200008

35556SHAFT, PARKING LOCK PAWL

main35556-30020iUCF20199410-199707

main35556-30030iUCF20199707-200008

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iUCF20199410-200008

35557PAWL, PARKING LOCK

main35557-30020iUCF20199410-199707

main35590-30010iUCF20199707-200008

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iUCF20199410-199707

main90949-03065iUCF20199707-200008

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iUCF20199410-200008

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30060iUCF20199410-199703

main35572-50020iUCF20199703-200008

35595BRACKET, PARKING LOCK PAWL

main35595-30010iUCF20199410-199707

main35595-30020iUCF20199707-200008

9161160614

main91611-60614

9411040800

main94110-40800

9451200800

main94512-00800

15 parts on this diagram · 2 diagrams in section
