STARTER

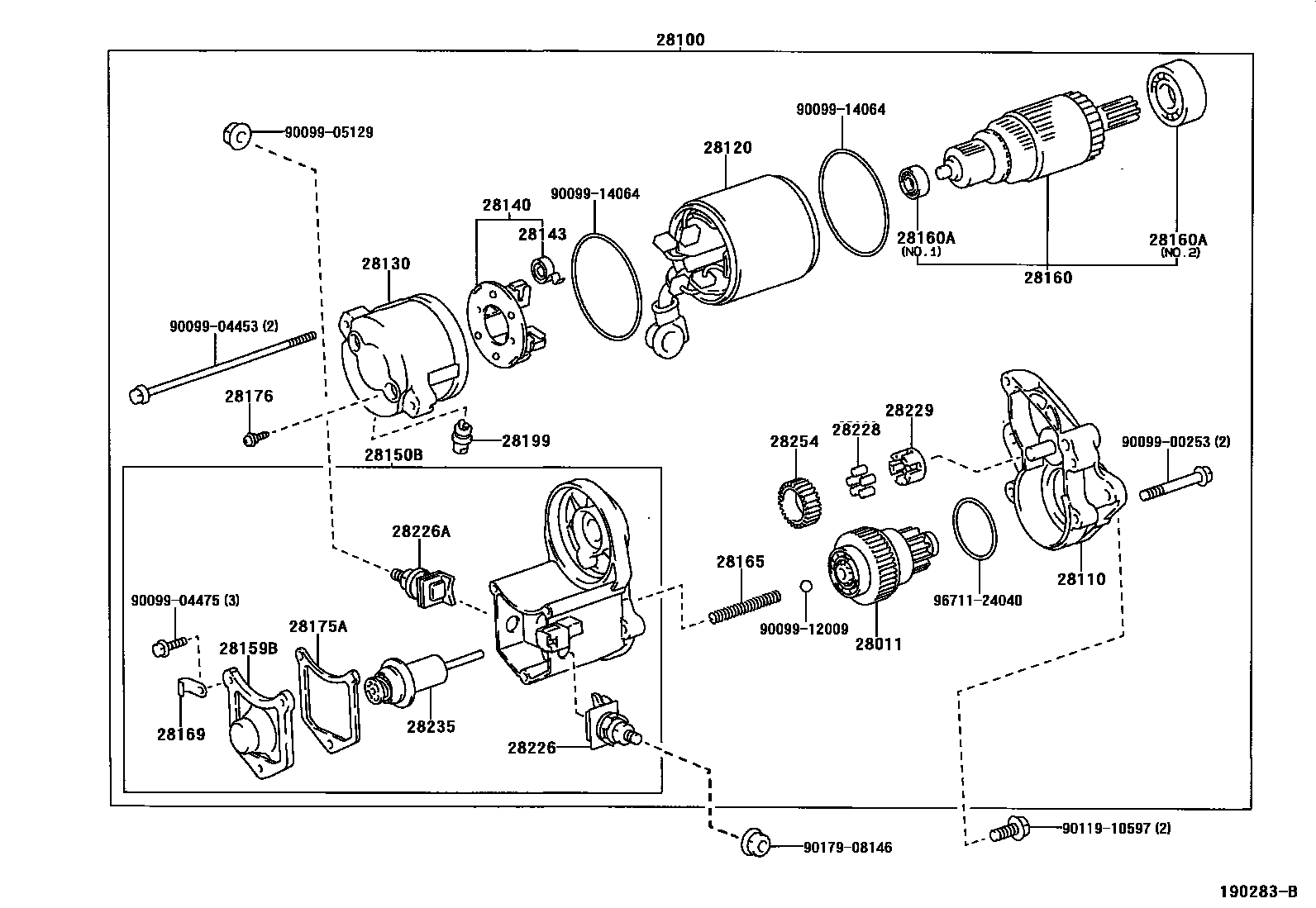

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

main28011-50060i199410

28100STARTER ASSY

main28100-50060i199410-199701

12V 2.0KW

main28100-50061i199701-199704

12V 2.0KW

main28100-50062i199704

12V 2.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-50060i199410

28120YOKE ASSY, STARTER

main28120-54380i199410

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-50060i199410

28140HOLDER ASSY, STARTER BRUSH

main28140-54380i199410

28143SPRING, STARTER BRUSH

main28143-54380×4i199410

28150BSWITCH ASSY, MAGNETIC

main28150-50060i199410-199701

main28150-50061i199701-199707

main28150-50063i199707-199711

main28150-50064i199711

28159BCOVER, MAGNET SWITCH

main28159-54380i199410

28160ARMATURE ASSY, STARTER

main28160-75120i199410

28160ABEARING, STARTER ARMATURE

main90099-10197i199410

NO.2

main90099-10208i199410

NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-76070i199410

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-54380i199410

28175AGASKET, MAGNET SWITCH COVER

main28175-54380i199410

28176SCREW, STARTER

main28176-54380×2i199410-199510

main90099-00271×2i199510

28199COVER, STARTER

main28199-50050i199410

28226STARTER KIT, BATTERY TERMINAL

main28226-50060i199410-199701

main28226-54410i199701-199707

main28226-54411i199707-199711

main28226-54412i199711

28226ASTARTER KIT, MOTOR TERMINAL

main28226-72010i199410

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i199410

28229RETAINER, STARTER IDLE GEAR

main28229-74070i199410

28235PLUNGER, MAGNET SWITCH

main28235-54380i199410

28254PINION, STARTER IDLE GEAR

main28254-64130i199410

9009900253

main90099-00253

9009904453

main90099-04453

9009904475

main90099-04475

9009905129

main90099-05129

9009912009

main90099-12009

9009914064

main90099-14064

9011910597

main90119-10597

9017908146

main90179-08146

9671124040

main96711-24040
