EXHAUST PIPE

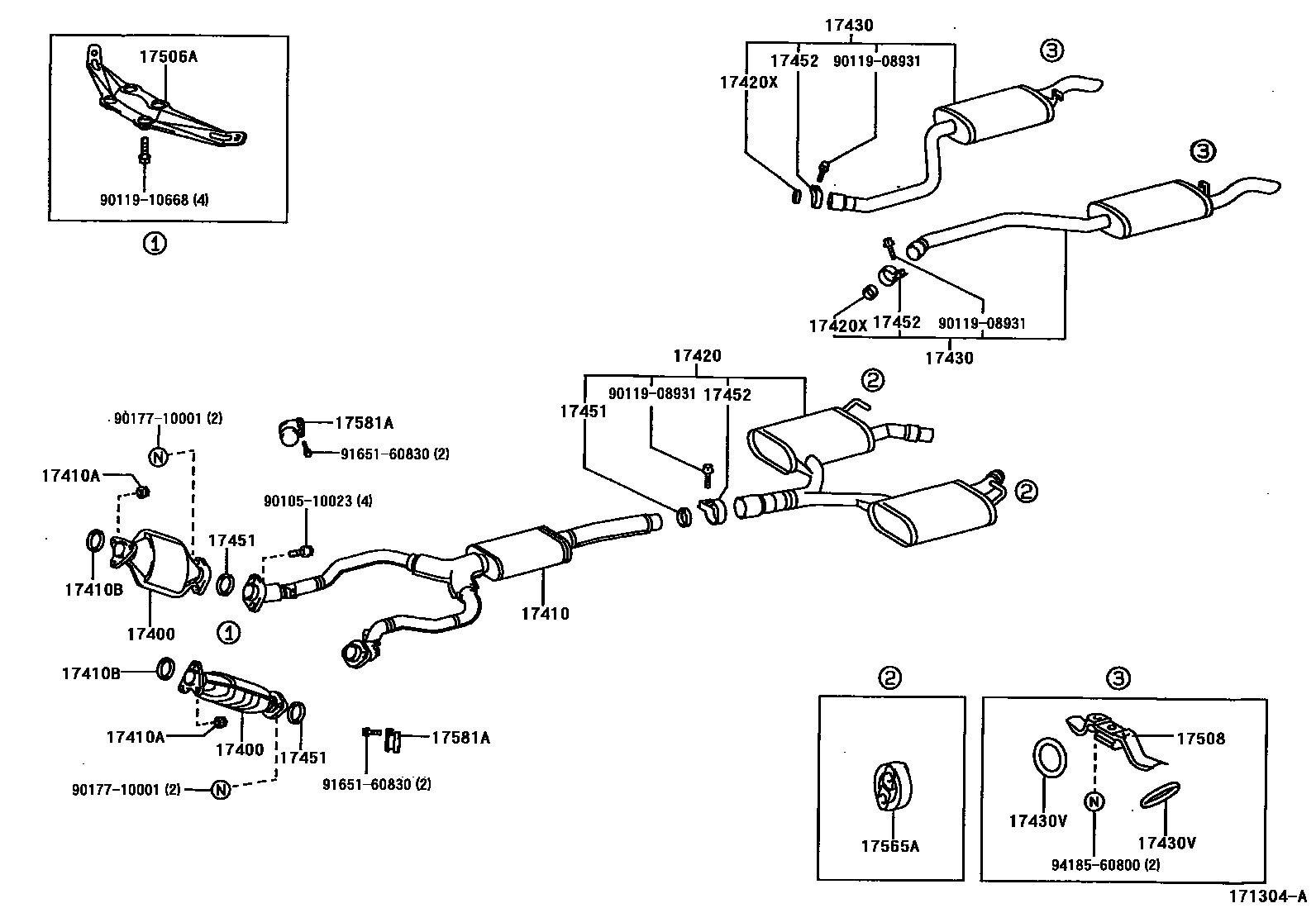

Parts diagram

17400CONVERTER ASSY, W/CATALYST

main18450-50010×2i199410-199707

main18450-50210i199707-199808

RH

main18450-50211i199808

RH

main18460-50030i199707-199808

LH

main18460-50031i199808

LH

17410PIPE ASSY, EXHAUST, FRONT

main17410-50130i199410-199707

main17410-50220i199707

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×6i199410

17410BGASKET, EXHAUST PIPE

main90917-06043×2i199410-199707

main90917-06059×2i199707

17420PIPE ASSY, EXHAUST, CENTER

main17420-50100i199410-199707

main17420-50160i199707

17420XGASKET, EXHAUST PIPE, CENTER

main17451-50030×2i199410-199707

main17451-50040×2i199707

17430PIPE ASSY, EXHAUST, TAIL

main17430-50090i199410-199707

RH

main17430-50130i199707

RH

main17440-50060i199410-199707

LH

main17440-50100i199707

LH

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-36001×4i199410

17451GASKET, EXHAUST PIPE

main17451-50020i199410

REAR

main90917-06072×2i199410-199702

FRONT

main90917-06076×2i199702-199707

FRONT

main90917-06078×2i199707

FRONT

17452CLAMP, EXHAUST PIPE

main17452-50020i199410

FRONT

main17452-50030×2i199410-199707

REAR

main17452-50040×2i199707

REAR

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-50080i199410

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-50010×2i199410

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-46040×2i199410

17581ADAMPER, EXHAUST PIPE

main17581-50070×2i199410

9010510023

main90105-10023

9011908931

main90119-08931

9011910668

main90119-10668

9017710001

main90177-10001

9165160830

main91651-60830

9418560800

main94185-60800

20 parts on this diagram · 1 diagram in section
