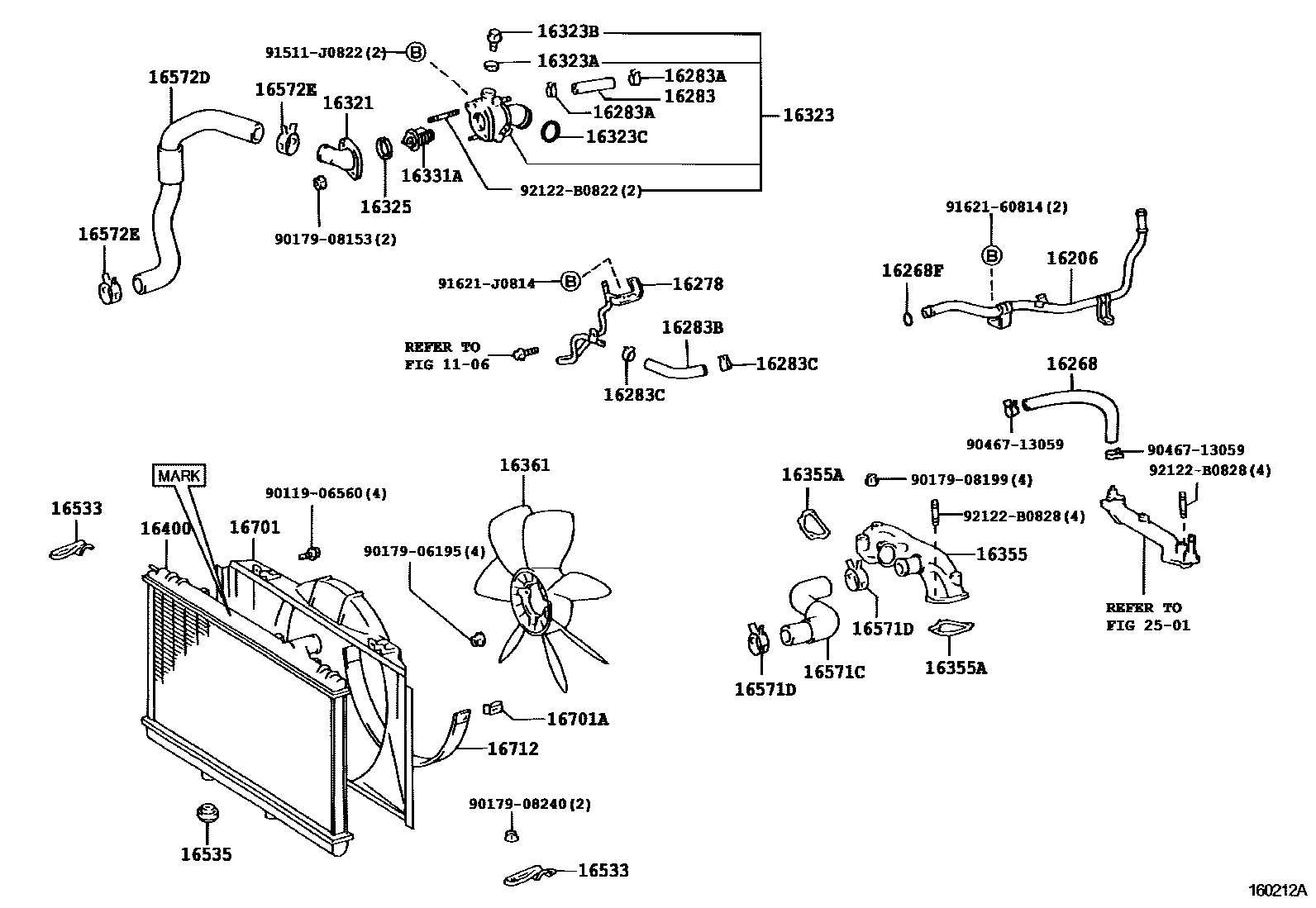

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16206PIPE SUB-ASSY, WATER BY-PASS

main16206-50090i1UZFE..UCF20199410-199707

main16206-50120i1UZFE..UCF20199707

16268PIPE, WATER BY-PASS, NO.1

main16261-50070i1UZFE..UCF20199410-199505

main16261-50071i1UZFE..UCF20199505-199707

16268FRING, O(FOR WATER BY-PASS PIPE)

main96761-24019i1UZFE..UCF20199410

16278PIPE, WATER BY-PASS, NO.2

main16278-50011i1UZFE..UCF20199410-199707

main16278-50030i1UZFE..UCF20199707

16283HOSE, WATER BY-PASS, NO.6

main90445-16039i1UZFE..UCF20199410-199707

L=85

16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

main90467-15022×2i1UZFE..UCF20199410-199412

main90467-16037×2i1UZFE..UCF20199412-199707

16283BHOSE, WATER BY-PASS

main16283-50011i1UZFE..UCF20199410-199707

main99565-00130i1UZFE..UCF20199707

16283CCLAMP OR CLIP(FOR WATER BY-PASS HOSE)

main90467-11056×2i1UZFE..UCF20199410

16321INLET, WATER

main16321-50010i1UZFE..UCF20199410-199707

main16321-50020i1UZFE..UCF20199707

16323HOUSING, WATER INLET

main16032-50051i1UZFE..UCF20199410-199707

main16032-50060i1UZFE..UCF20199707-200006

main16032-50100i1UZFE..UCF20200006-200008

16323AGASKET(FOR WATER INLET HOUSING)

main90430-20004i1UZFE..UCF20199410-199707

16323BPLUG(FOR WATER INLET HOUSING)

main90341-20011i1UZFE..UCF20199410-199707

16323CRING, O(FOR WATER INLET HOUSING)

main96761-35035i1UZFE..UCF20199410

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i1UZFE..UCF20199410-199707

16331ATHERMOSTAT

main90916-03084i1UZFE..UCF20199410-199707

*WAX 82-95

main90916-03100i1UZFE..UCF20199707

*WAX 82-95

16355JOINT, WATER BY-PASS, FRONT

main16355-50030i1UZFE..UCF20199410-199707

main16355-50070i1UZFE..UCF20199707

16355AGASKET(FOR WATER BY-PASS JOINT FRONT)

main16341-50010×2i1UZFE..UCF20199410-199707

main16341-50020×2i1UZFE..UCF20199707

16361FAN

main16361-50020i1UZFE..UCF20199410

16400RADIATOR ASSY

main16400-50130i1UZFE..UCF20199410

MARK = 5013

main16400-50150i1UZFE..UCF20..CND; 1UZFE..UCF20..USA199410

MARK = 5015

16533SUPPORT, RADIATOR, UPPER

main16505-50070i1UZFE..UCF20199410

RH

main16506-50040i1UZFE..UCF20199410

LH

16535SUPPORT, RADIATOR, LOWER

main90480-40016×2i1UZFE..UCF20199410

16571CHOSE, RADIATOR, NO.1

main16571-50070i1UZFE..UCF20199410-199707

main16571-50110i1UZFE..UCF20199707

16571DCLIP, RADIATOR HOSE, NO.1

main90466-41003i1UZFE..UCF20199912

NO.1

main90467-41007i1UZFE..UCF20199912

NO.2

16572DHOSE, RADIATOR, NO.2

main16572-50090i1UZFE..UCF20199410-199707

main16572-50120i1UZFE..UCF20199707

16572ECLIP, RADIATOR HOSE, NO.2

main90467-41007×2i1UZFE..UCF20199410

16701SHROUD SUB-ASSY, FAN

main16711-50050i1UZFE..UCF20199410

16701ACLIP(FOR FAN SHROUD)

main90468-06073×2i1UZFE..UCF20199410

16712SHROUD, FAN, NO.2

main16712-50030i1UZFE..UCF20199410

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

9011906560

main90119-06560

9017906195

main90179-06195

9017908153

main90179-08153

9017908199

main90179-08199

9017908240

main90179-08240

9046713059

main90467-13059

91511J0822

main91511-J0822

9162160814

main91621-60814

91621J0814

main91621-J0814

92122B0822

main92122-B0822

92122B0828

main92122-B0828

41 parts on this diagram · 3 diagrams in section
