ENGINE OVERHAUL GASKET KIT

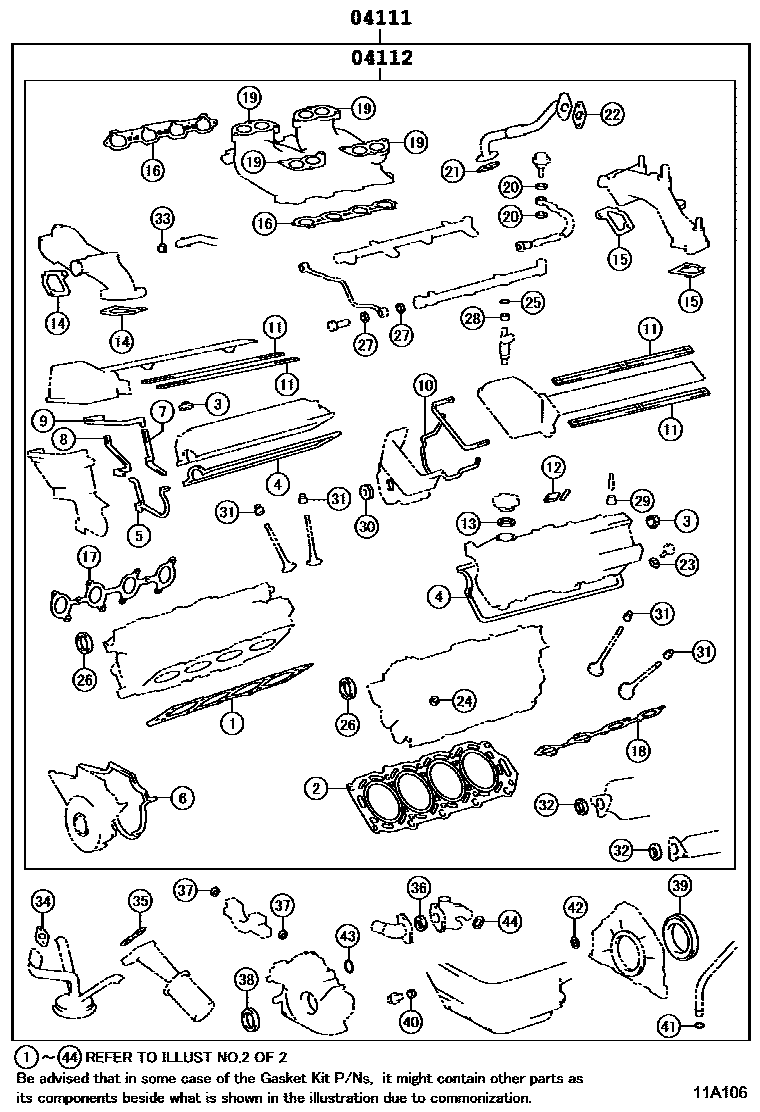

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-50100i199410-199509

main04111-50101i199509-199707

main04111-50110i199707-199711

main04111-50111i199711-199808

main04111-50112i199808

04112GASKET KIT, ENGINE VALVE GRIND

main04112-50100i199410-199509

main04112-50101i199509-199707

main04112-50110i199707-199808

main04112-50111i199808

2 parts on this diagram · 8 diagrams in section
