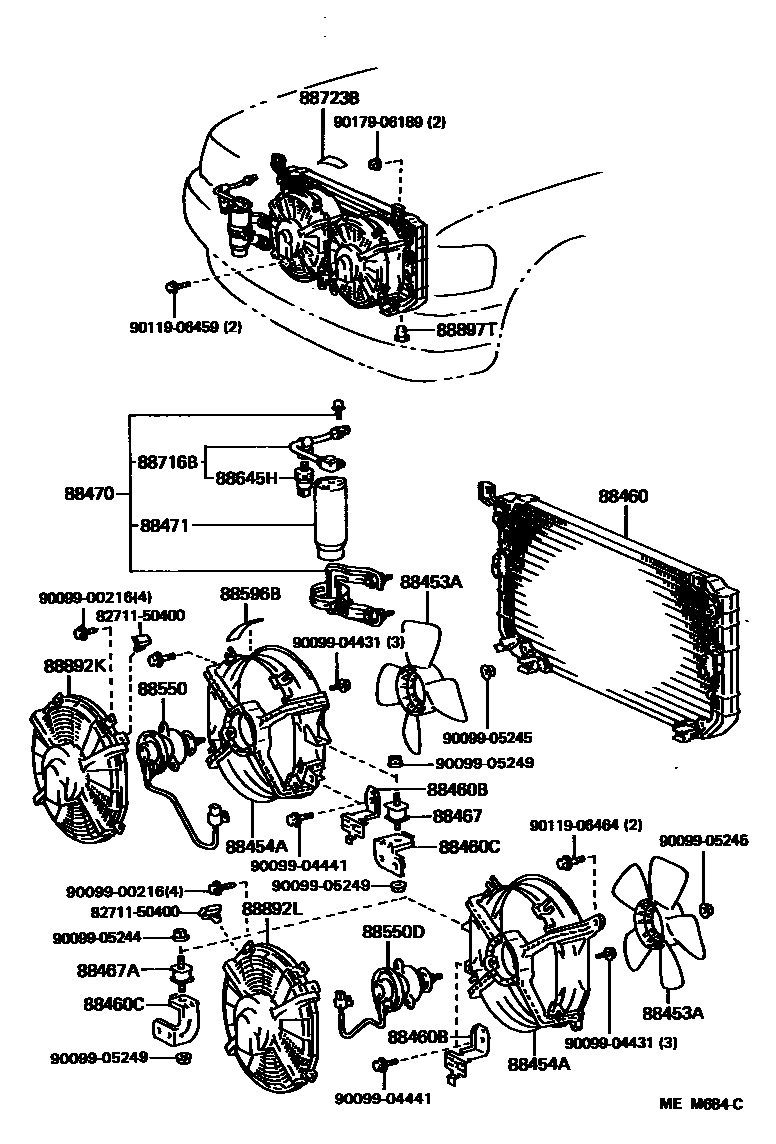

HEATING & AIR CONDITIONING - COOLER PIPING
88460BBRACKET, COOLER CONDENSER, NO.1
RH
LH
RH
LH
88460CBRACKET, COOLER CONDENSER, NO.2
RH
LH
88467CUSHION, COOLER CONDENSER, NO.1
88467ACUSHION, COOLER CONDENSER, NO.2
88470RECEIVER & DRYER ASSY, COOLER
88471TANK, RECEIVER AIR CONDITIONER
88550MOTOR ASSY, BLOWER (FOR CONDENSER)
88596BPLATE, CAUTION, NO.1
88645HSWITCH, PRESSURE NO.1
88716BPIPE, COOLER REFRIGERANT LIQUID, B
88723BLABEL, COOLER SERVICE CAUTION
88892KCOVER, COOLING, RH
88892LCOVER, COOLING, LH
88897TGROMMET, COOLER
8271150400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-50400
9009900216
main90099-00216
9009904431
main90099-04431
9009904441
main90099-04441
9009905244
main90099-05244
9009905245
main90099-05245
9009905249
main90099-05249
9011906459
main90119-06459
9011906464
main90119-06464
9017906189
main90179-06189
28 parts on this diagram · 3 diagrams in section
