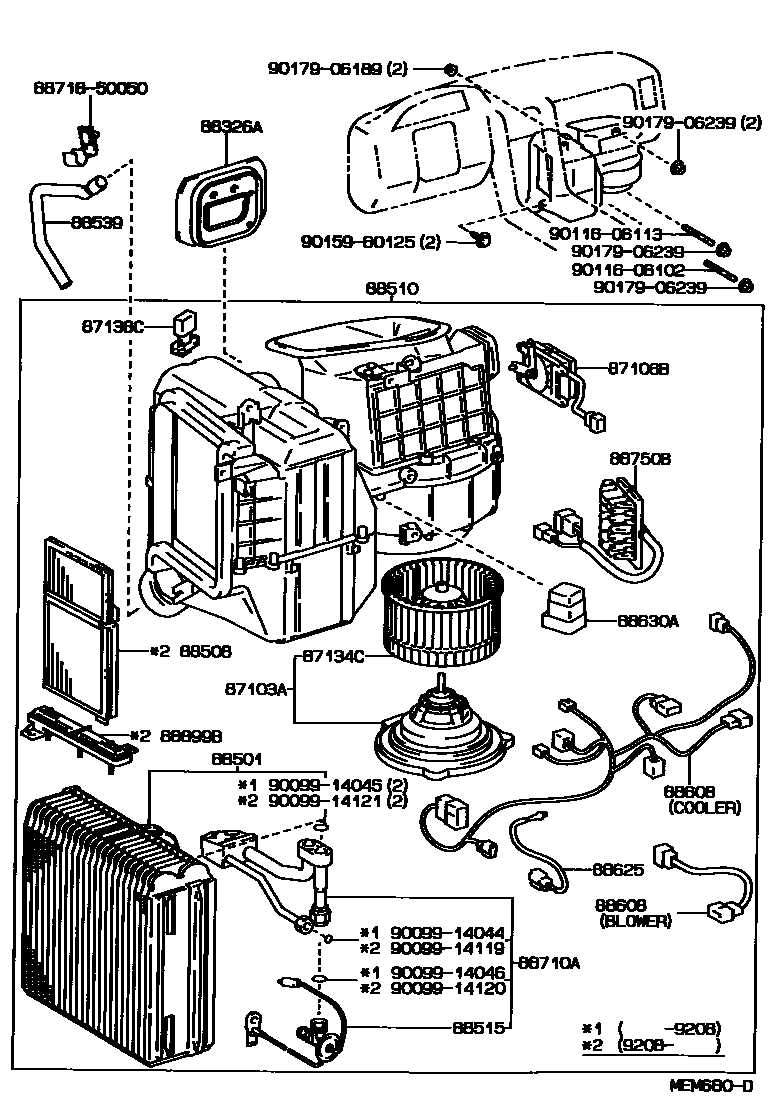

HEATING & AIR CONDITIONING - COOLER UNIT
87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN
87106BSERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)
87134CFAN, BLOWER(FOR COOLING UNIT)
87138CRESISTOR, BLOWER
88326APLATE, COVER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88508FILTER SUB-ASSY, CLEAN AIR
88510UNIT ASSY, COOLER
88515VALVE, COOLER EXPANSION
88539HOSE, COOLER UNIT DRAIN, NO.1
88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER
COOLER
BLOWER
COOLER
88630ARELAY ASSY, COOLER
88710ATUBE ASSY, AIR CONDITIONER
88750BTRANSISTOR ASSY, BLOWER RESISTOR
88899BCOVER, COOLER CONTROL
8871850050PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-50050
9009914044
main90099-14044
9009914045
main90099-14045
9009914046
main90099-14046
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9011606102
main90116-06102
9011606113
main90116-06113
9015960125
main90159-60125
9017906189
main90179-06189
9017906239
main90179-06239
28 parts on this diagram · 1 diagram in section
