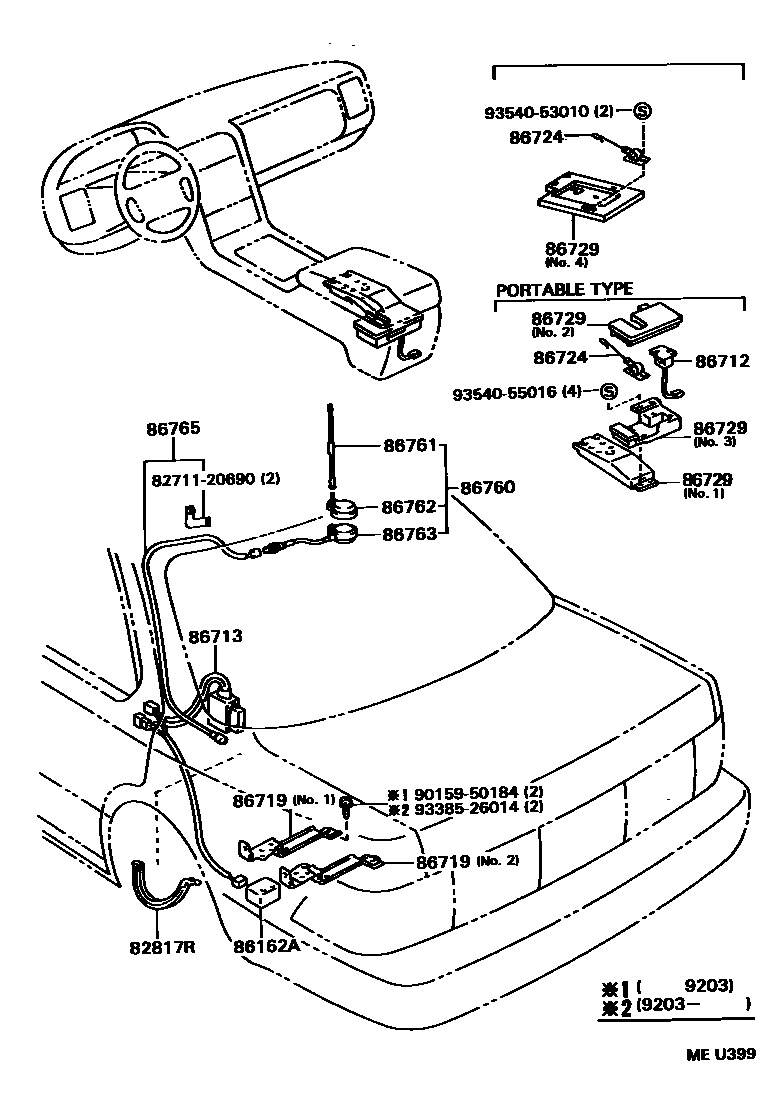

TELEPHONE & MAYDAY

82817RPROTECTOR, WIRING HARNESS, NO.16

main82817-50520iUCF10198911-199410

86162ARELAY, SPEAKER

main86162-50010iUCF10198905-199410

86712WIRE, TELEPHONE

main86712-50010iUCF10198905-199410

86713WIRE, TELEPHONE COMPUTER

main86713-50010iUCF10198905-199108

86719BRACKET, TELEPHONE

main86719-50020iUCF10198905-199410

NO.1

main86719-50030iUCF10198905-199410

NO.2

86724GUIDE, CURL CORD

main86724-50010iUCF10198905-199410

86729BRACKET, MOBILEPHONE

main86729-50030iUCF10198905-199410

NO.1

main86729-50040iUCF10198905-199410

NO.2

main86729-50050iUCF10198905-199410

NO.3

main86729-50070iUCF10199208-199410

NO.4

86760ANTENNA ASSY, TELEPHONE

main86760-50020iUCF10198912-199410

86761ROD, TELEPHONE ANTENNA

main86761-50010iUCF10199005-199410

86762BASE, TELEPHONE ANTENNA

main86762-50010iUCF10199005-199410

86763BASE, TELEPHONE ANTENNA, N0.2

main86763-50010iUCF10199005-199410

86765CODE, TELEPHONE ANTENNA

main86705-50010iUCF10199311-199410

main86765-50010iUCF10198905-199311

8271120690WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20690

9015950184

main90159-50184

9338526014

main93385-26014

9354053010

main93540-53010

9354055016

main93540-55016

17 parts on this diagram · 1 diagram in section
