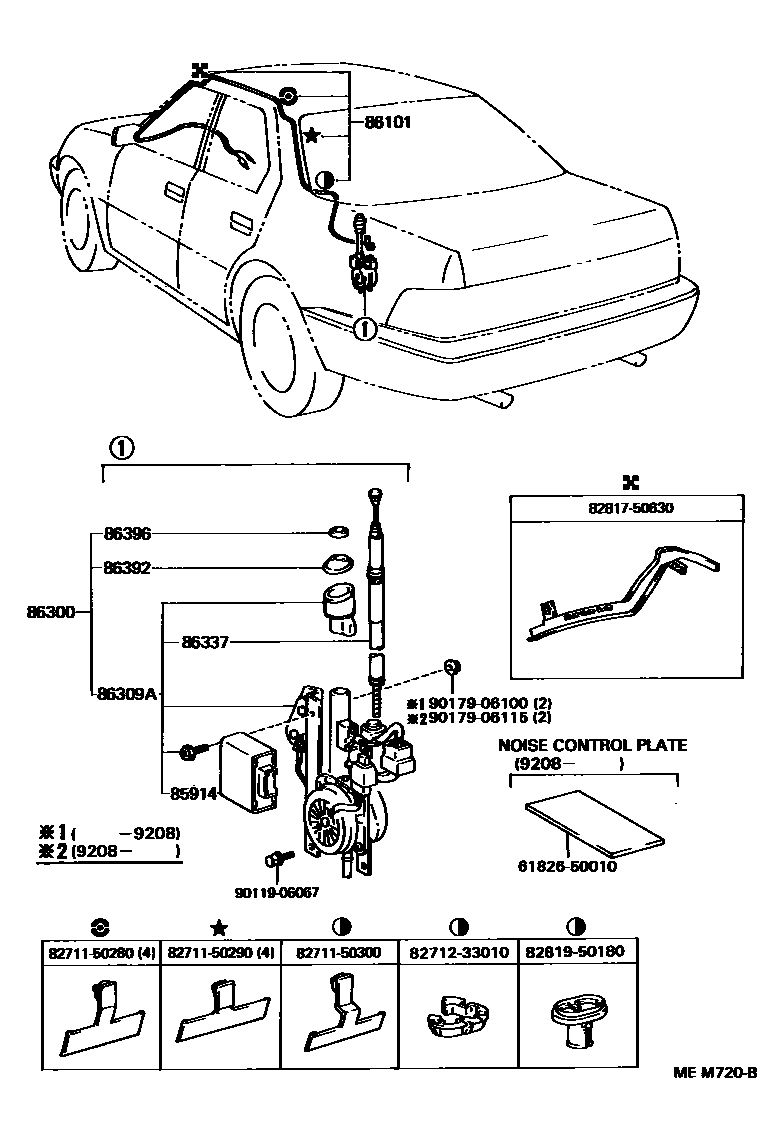

ANTENNA

85914RELAY, MOTOR ANTENNA CONTROL

main85914-50010iUCF10198905-199410

86101CORD SUB-ASSY, ANTENNA

main86101-50010iUCF10198905-199208

main86101-50020iUCF10198905-199208

W(WIRELESS DOOR LOCK)

main86101-50110iUCF10199208-199410

main86101-50170iUCF10..USA199401-199410

TAIWAN SPEC

86300ANTENNA ASSY, W/HOLDER

main86300-50010iUCF10198905-199203

main86300-50011iUCF10199203-199208

main86300-50081iUCF10199208-199410

86309APOLE SUB-ASSY, MOTOR ANTENNA

main86309-50010iUCF10198905-199203

main86309-50011iUCF10199203-199208

main86309-50030iUCF10199208-199410

86337ROD & PIPE, SEALED W/CABLE

main86337-24180iUCF10199203-199210

main86337-50010iUCF10198905-199203

main86337-50080iUCF10199210-199410

86392ORNAMENT, ANTENNA

main86392-50010iUCF10198905-199410

86396NUT, ANTENNA

main86396-50010iUCF10198905-199410

6182650010PLATE, QUARTER INNER PANEL, LOWER FRONT LH

main61826-50010

8271150280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-50280

8271150290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-50290

8271150300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-50300

8271233010CLAMP, WIRING HARNESS

main82712-33010

8281750630PROTECTOR, WIRING HARNESS, NO.1

main82817-50630

8281950180GROMMET, WIRING HARNESS

main82819-50180

9011906067

main90119-06067

9017906100

main90179-06100

9017906115

main90179-06115

17 parts on this diagram · 1 diagram in section
