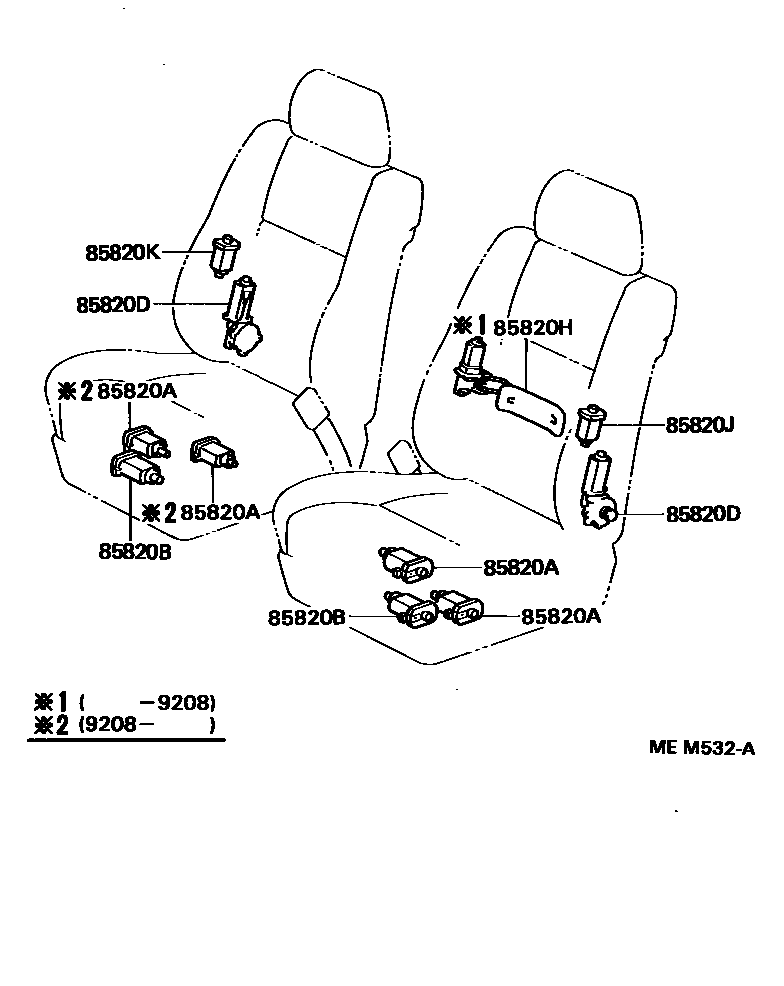

SEAT MOTOR & SEAT HEATER

85820AMOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)

main85820-50030×2iUCF10198905-199208

main85820-50140×2iUCF10199208-199410

RH

main85820-50160×2iUCF10199208-199410

LH

85820BMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE)

main85820-22050iUCF10198905-199208

PASSENGER

main85820-30420iUCF10199208-199410

RH

main85820-50010iUCF10198905-199208

DRIVER

main85820-50150iUCF10199208-199410

LH

85820DMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING)

main85801-50010iUCF10198905-199208

W(MEMORY ADJUST SYSTEM),LH

main85801-50040iUCF10..CND; UCF10..USA199208-199410

LH; W(MEMORY ADJUST SYSTEM),LH

main85820-50040iUCF10198905-199410

RH

main85820-50050iUCF10..USA199208-199410

LH

85820HMOTOR ASSY, POWER SEAT

main85820-50070iUCF10198905-199208

85820JMOTOR ASSY, POWER SEAT

main85820-50060iUCF10198905-199208

W(MEMORY ADJUST SYSTEM)

main85820-50200iUCF10..CND; UCF10..USA199208-199410

W(MEMORY ADJUST SYSTEM)

85820KMOTOR ASSY, POWER SEAT

main85820-50080iUCF10198905-199208

W(MEMORY ADJUST SYSTEM)

main85820-50240iUCF10..CND; UCF10..USA199208-199410

W(MEMORY ADJUST SYSTEM)

6 parts on this diagram · 1 diagram in section
