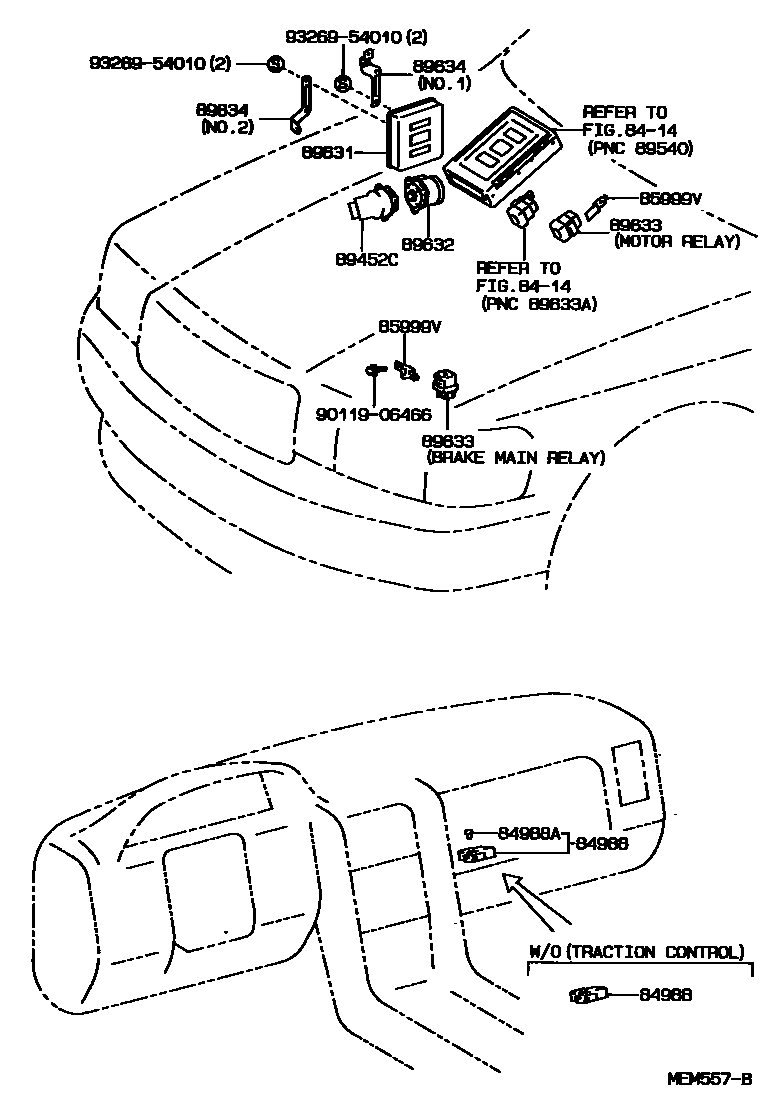

TRACTION CONTROL

8414ABS & VSC

→ Go to FIG 84-14

84988SWITCH, TRACTION CONTROL

main84988-50010iUCF10198905-199208

W(TRACTION CONTROL)

main84988-50020iUCF10..USA199208-199410

main84988-50060iUCF10..CND199208-199410

84988ABULB, TRACTION CONTROL SWITCH

main84999-10620iUCF10198905-199208

14V 0.63W

85999VBRACKET, RELAY

main85999-50010iUCF10198905-199410

MOTOR RELAY

main85999-50050iUCF10198905-199410

BRAKE MAIN RELAY

89452CSENSOR, THROTTLE POSITION

main89452-50010iUCF10198905-199208

main89452-50020iUCF10199208-199410

89631COMPUTER, TRACTION CONTROL

main89631-30080iUCF10199308-199410

main89631-50010iUCF10199208-199308

89632MOTOR, TRACTION THROTTLE VALVE

main89632-50010iUCF10198905-199208

main89632-50020iUCF10199208-199410

89633RELAY, TRACTION CONTROL

main89633-50020iUCF10198905-199410

MOTOR RELAY

main89633-50060iUCF10198905-199410

BRAKE MAIN RELAY

89634BRACKET, TRACTION CONTROL COMPUTER

main89634-50010iUCF10199208-199410

NO.1

main89634-50030iUCF10199208-199410

NO.2

9011906466

main90119-06466

9326954010

main93269-54010

11 parts on this diagram · 1 diagram in section
