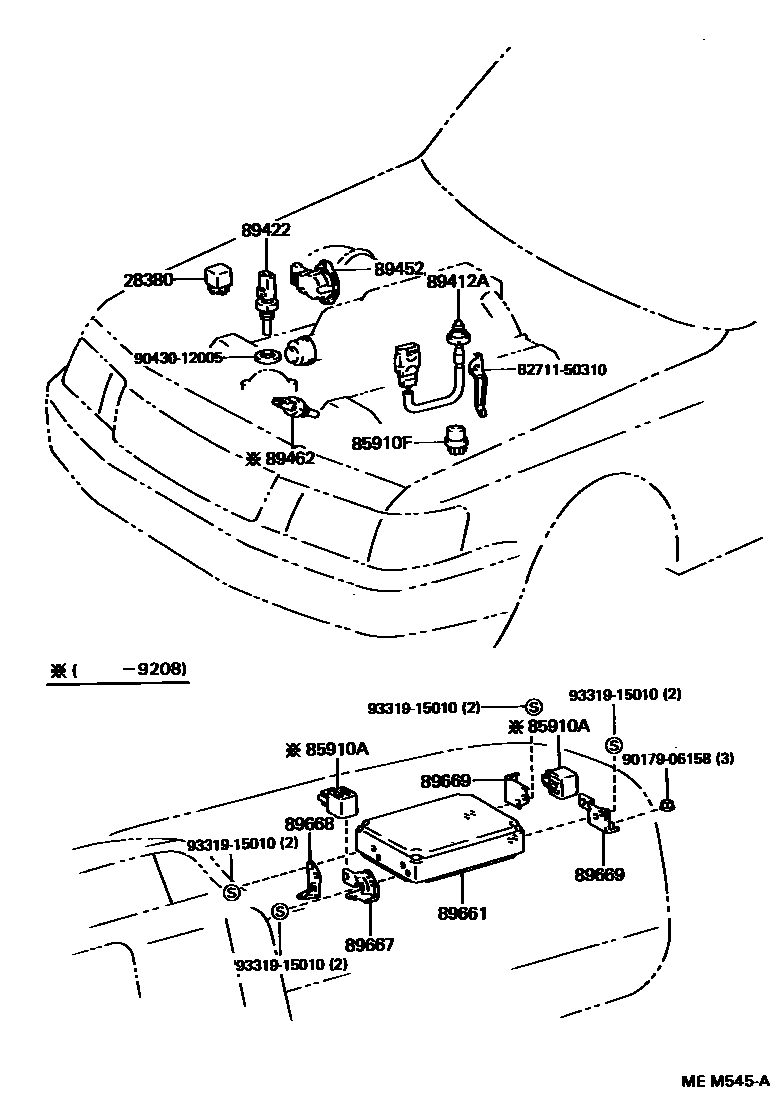

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28380RELAY ASSY, FUEL PUMP

main28380-30010i1UZFE..UCF10198905-199208

main28380-50010i1UZFE..UCF10..USA199208-199401

CALIFORNIA SPEC

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-22040×2iUCF10198905-199208

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iUCF10198905-199410

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-34010iUCF10199404-199410

main89412-50010iUCF10199308-199410

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iUCF10198905-199410

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12050iUCF10198905-199208

main89452-32060iUCF10199208-199410

89462SWITCH, START INJECTOR TIME

main89462-20020iUCF10198905-199208

89661COMPUTER, ENGINE CONTROL

main89661-50010iUCF10198905-199008

main89661-50020iUCF10198905-199008

W(TRACTION CONTROL)

main89661-50030iUCF10198905-199008

CALIFORNIA SPEC

main89661-50031iUCF10199008-199009

main89661-50032iUCF10199009-199208

main89661-50040iUCF10198905-199008

CALIFORNIA SPEC & W(TRACTION CONTROL)

main89661-50041iUCF10199008-199009

W(TRACTION CONTROL)

main89661-50042iUCF10199009-199208

W(TRACTION CONTROL)

main89661-50140iUCF10199208-199301

main89661-50141iUCF10199301-199308

main89661-50142iUCF10199308-199410

main89661-50150iUCF10..USA199208-199301

CALIFORNIA SPEC

main89661-50151iUCF10..USA199301-199401

CALIFORNIA SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-50010iUCF10198905-199410

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-50010iUCF10198905-199410

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-50010iUCF10198905-199410

FRONT

main89669-50020iUCF10198905-199410

REAR

8271150310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-50310

9017906158

main90179-06158

9043012005

main90430-12005

9331915010

main93319-15010

15 parts on this diagram · 2 diagrams in section
