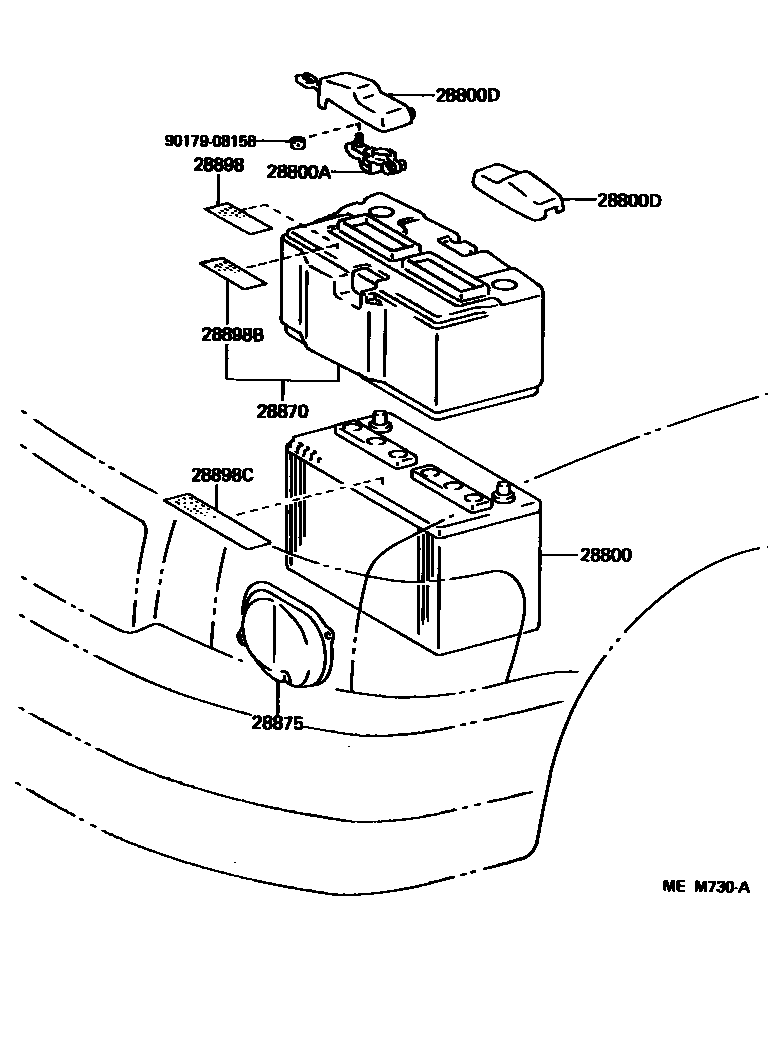

BATTERY & BATTERY CABLE

28800BATTERY

main28800-50050i1UZFE..UCF10199308-199410

95D31L

main28800-64180i1UZFE..UCF10198905-199308

95D31L

28800ATERMINAL, BATTERY POSITIVE

main90982-05037i1UZFE..UCF10198905-199410

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50050i1UZFE..UCF10198905-199410

POSITIVE

main82821-50060i1UZFE..UCF10198905-199410

NEGATIVE

28870INSULATOR ASSY, BATTERY

main28870-50010i1UZFE..UCF10198905-199208

main28870-50040i1UZFE..UCF10199208-199410

28875DUCT, BATTERY INSULATOR, NO.1

main28875-50010i1UZFE..UCF10198905-199410

28898PLATE, BATTERY

main28898-50050i1UZFE..UCF10..CND199008-199208

main28898-50100i1UZFE..UCF10..CND199208-199410

28898BPLATE, BATTERY

main28898-50010i1UZFE..UCF10198905-199208

main28898-50090i1UZFE..UCF10199208-199410

28898CPLATE, BATTERY

main28898-50020i1UZFE..UCF10..USA198905-199308

main28898-50040i1UZFE..UCF10..USA198912-199110

HAWAII SPEC

main28898-50041i1UZFE..UCF10..USA199110-199308

HAWAII SPEC

main28898-50050i1UZFE..UCF10..CND199008-199208

main28898-50100i1UZFE..UCF10..CND199208-199410

main28898-50120i1UZFE..UCF10..USA199308-199410

9017908158

main90179-08158

9 parts on this diagram · 1 diagram in section
