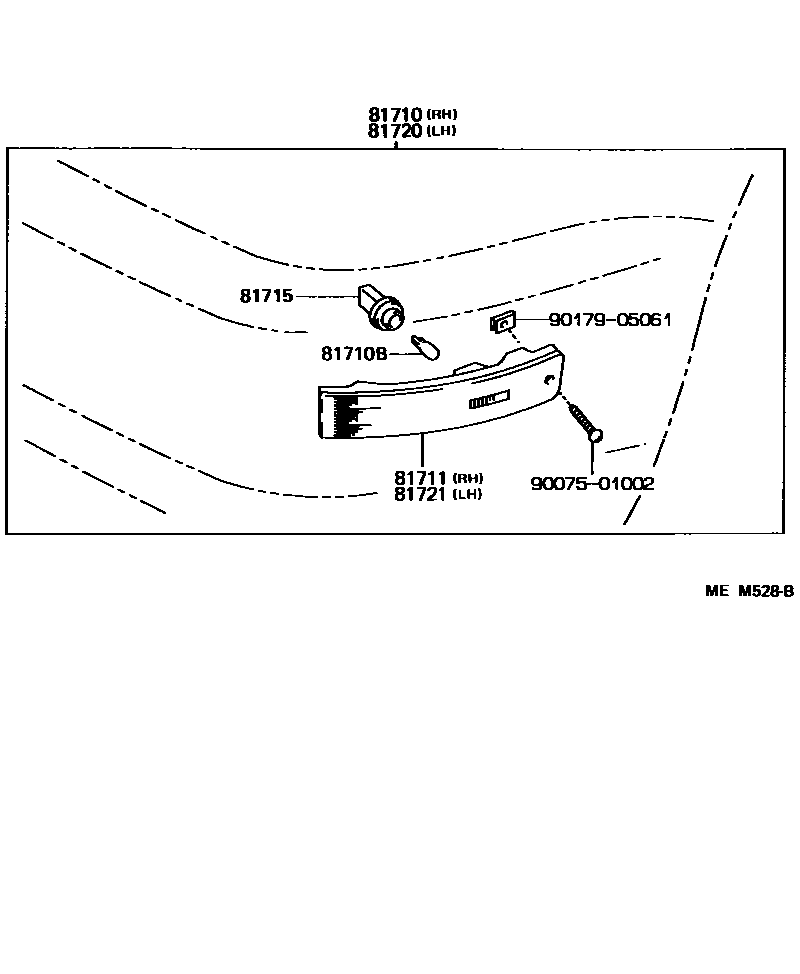

FRONT MARKER LAMP

81710LAMP ASSY, FRONT MARKER, RH

main81730-59325iUCF10198905-199410

81710BBULB, FRONT MARKER LAMP

main90981-11020×2iUCF10198905-199410

12V 3.8W

81711LENS, FRONT MARKER LAMP, RH

main81731-50010iUCF10198905-199410

81715SOCKET & WIRE, FRONT MARKER LAMP

main81735-12180×2iUCF10198905-199410

81720LAMP ASSY, FRONT MARKER, LH

main81740-59015iUCF10198905-199410

81721LENS, FRONT MARKER LAMP, LH

main81741-50010iUCF10198905-199410

9007501002

main90075-01002

9017905061

main90179-05061

8 parts on this diagram · 1 diagram in section
