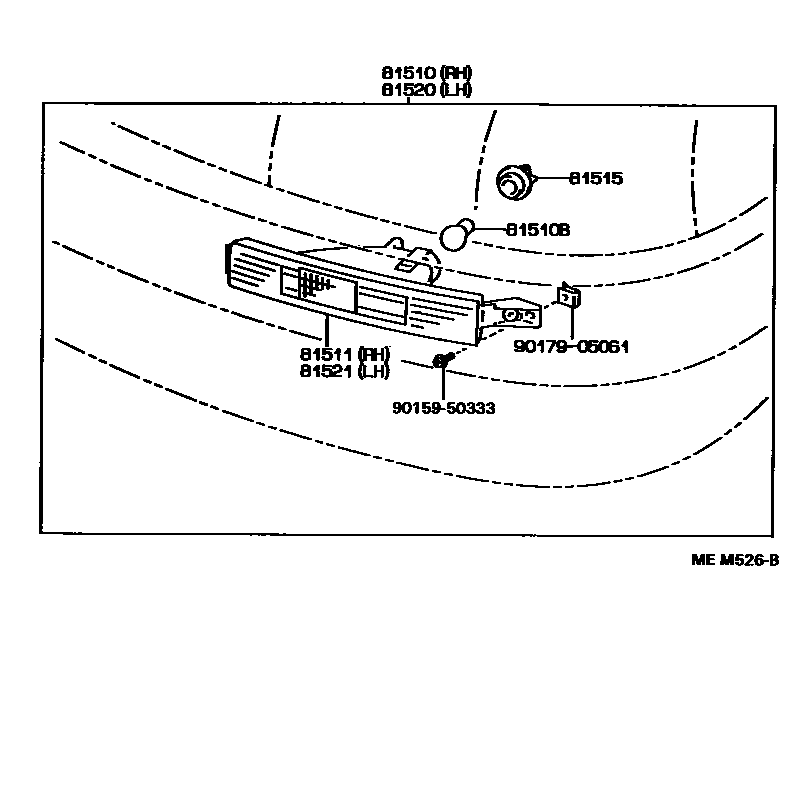

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-59015iUCF10198905-199410

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11270×2iUCF10198905-199410

12V 27W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-50010iUCF10198905-199410

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81615-87705×2iUCF10198905-199410

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-59015iUCF10198905-199410

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-50010iUCF10198905-199410

9015950333

main90159-50333

9017905061

main90179-05061

8 parts on this diagram · 1 diagram in section
