EPC Data

REAR SEAT & SEAT TRACK

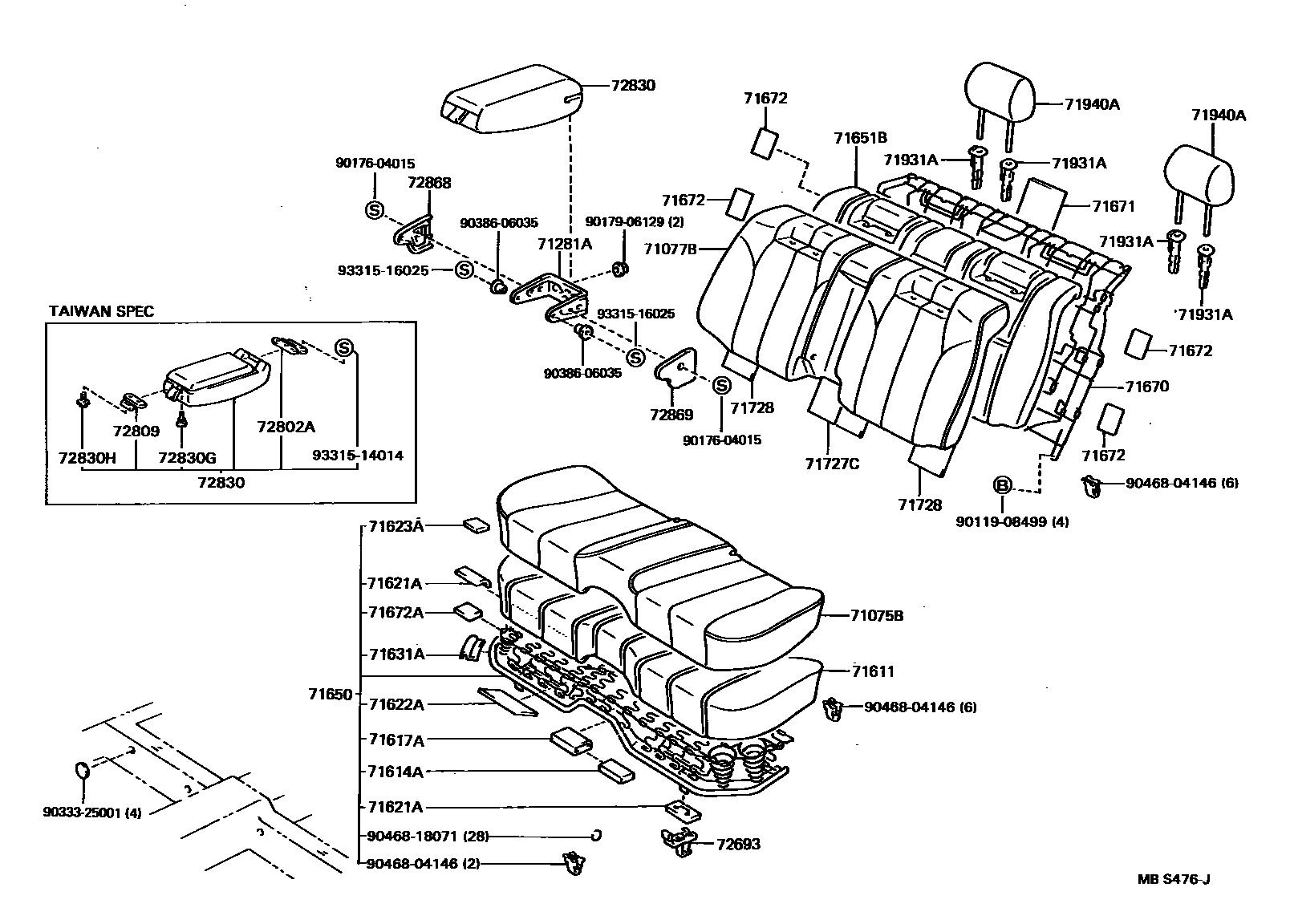

Parts diagram
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-50010-02i198905-199103
DEEP RED,TRIM3#
main71075-50010-03i198905-199208
GRAY,TRIM1#
main71075-50010-04i198905-199208
BLUE,TRIM8#
main71075-50010-06i198905-199208
ROSE,TRIM4#
main71075-50020-02i198905-199103
W(LEATHER SEAT),DEEP RED,TRIM3#
main71075-50020-03i198905-199208
W(LEATHER SEAT),GRAY,TRIM1#
main71075-50020-04i198905-199208
W(LEATHER SEAT),BLUE,TRIM8#
main71075-50020-06i198905-199208
W(LEATHER SEAT),ROSE,TRIM4#
main71075-50020-08i198905-199208
W(LEATHER SEAT),IVORY,TRIM0#
main71075-50020-A0×2i199401-199410
IVORY,TRIM0#
main71075-50020-B0i199208-199410
SHADOW GRAY,TRIM1#
main71075-50020-C0i199208-199410
BLACK,TRIM2#
main71075-50020-J0×2i199401-199410
DK. BLUE,TRIM8#
main71075-50020-K0i199208-199410
TAUPE,TRIM9#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-50010-02i198905-199103
DEEP RED,TRIM3#
main71077-50010-03i198905-199208
GRAY,TRIM1#
main71077-50010-04i198905-199208
BLUE,TRIM8#
main71077-50010-06i198905-199208
ROSE,TRIM4#
main71077-50020-02i198905-199103
W(LEATHER SEAT),DEEP RED,TRIM3#
main71077-50020-03i198905-199208
W(LEATHER SEAT),GRAY,TRIM1#
main71077-50020-04i198905-199208
W(LEATHER SEAT),BLUE,TRIM8#
main71077-50020-06i198905-199208
W(LEATHER SEAT),ROSE,TRIM4#
main71077-50020-08i198905-199208
W(LEATHER SEAT),IVORY,TRIM0#
main71077-50020-A0i199208-199410
IVORY,TRIM0#
main71077-50020-B0i199208-199410
SHADOW GRAY,TRIM1#
main71077-50020-C0i199208-199410
BLACK,TRIM2#
main71077-50020-J0i199208-199410
DK. BLUE,TRIM8#
main71077-50020-K0i199208-199410
TAUPE,TRIM9#
main71077-50041-A0i199401-199410
TAIWAN SPEC,IVORY,TRIM0#
main71077-50041-B0i199401-199410
TAIWAN SPEC,SHADOW GRAY,TRIM1#
main71077-50041-C0×2i199401-199410
TAIWAN SPEC,BLACK,TRIM2#
main71077-50041-J0i199401-199410
TAIWAN SPEC,DK. BLUE,TRIM8#
71281AHINGE, REAR SEAT CENTER ARMREST
main71281-50010i198905-198910
main71281-50011i198910-199410
71611PAD, REAR SEAT CUSHION
main71611-50010i198905-199208
main71611-50020i198905-199208
W(LEATHER SEAT)
71614APAD, REAR SEAT CUSHION, D
main71614-50010i198905-199410
71617ACLOTH, REAR SEAT CUSHION UNDER
main71617-50010i198905-199410
71621APAD, REAR SEAT CUSHION SILENCER, A
main71621-50010×2i198905-199410
71622APAD, REAR SEAT CUSHION SILENCER, B
main71622-50010×2i198905-199208
71623APAD, REAR SEAT CUSHION SILENCER, C
main71621-22070×2i199002-199410
main71623-50010×2i198905-199002
71631APAD, REAR SEAT CUSHION CORNER
main71631-50010×2i199007-199410
71650SPRING ASSY, REAR SEAT CUSHION
main71650-50010i198905-199208
main71650-50030i199208-199410
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71651-50010i199208-199410
main71651-50020i198905-199208
71670SPRING ASSY, REAR SEATBACK(FOR BENCH SEAT)
main71670-50010i198905-199410
main71670-50030i199401-199410
TAIWAN SPEC
71671PAD, REAR SEATBACK SILENCER, A
main71671-50010i198905-199410
71672PAD, REAR SEATBACK SILENCER, B
main71524-50010×10i198905-199410
71672APAD, REAR SEAT CUSHION SILENCER, B
main71524-50010×7i199208-199410
71727CTRIM, SEAT CORNER, NO.1
main71727-50010-02i199007-199103
DEEP RED,TRIM3#
main71727-50010-03i199007-199208
GRAY,TRIM1#
main71727-50010-04i199007-199208
BLUE,TRIM8#
main71727-50010-06i199007-199208
ROSE,TRIM4#
main71727-50020-02i199007-199103
W(LEATHER SEAT),DEEP RED,TRIM3#
main71727-50020-03i199007-199208
W(LEATHER SEAT),GRAY,TRIM1#
main71727-50020-04i199007-199208
W(LEATHER SEAT),BLUE,TRIM8#
main71727-50020-06i199007-199208
W(LEATHER SEAT),ROSE,TRIM4#
main71727-50020-08i199007-199208
W(LEATHER SEAT),IVORY,TRIM0#
main71727-50020-A0i199208-199211
IVORY,TRIM0#
main71727-50020-B0i199208-199211
SHADOW GRAY,TRIM1#
main71727-50020-C0i199208-199211
BLACK,TRIM2#
main71727-50020-J0i199208-199211
DK. BLUE,TRIM8#
main71727-50020-K0i199208-199211
TAUPE,TRIM9#
71728TRIM, SEAT CORNER, NO.2
main71728-50010-02×2i199007-199103
DEEP RED,TRIM3#
main71728-50010-03×2i199007-199208
GRAY,TRIM1#
main71728-50010-04×2i199007-199208
BLUE,TRIM8#
main71728-50010-06×2i199007-199208
ROSE,TRIM4#
main71728-50020-02×2i199007-199103
W(LEATHER SEAT),DEEP RED,TRIM3#
main71728-50020-03×2i199007-199208
W(LEATHER SEAT),GRAY,TRIM1#
main71728-50020-04×2i199007-199208
W(LEATHER SEAT),BLUE,TRIM8#
main71728-50020-06×2i199007-199208
W(LEATHER SEAT),ROSE,TRIM4#
main71728-50020-08×2i199007-199208
W(LEATHER SEAT),IVORY,TRIM0#
main71728-50020-A0×2i199208-199410
IVORY,TRIM0#
main71728-50020-B0×4i199401-199410
SHADOW GRAY,TRIM1#
main71728-50020-C0×4i199401-199410
BLACK,TRIM2#
main71728-50020-J0×2i199208-199410
DK. BLUE,TRIM8#
main71728-50020-K0×2i199208-199410
TAUPE,TRIM9#
71931ASUPPORT, REAR SEAT HEADREST
main71930-50010-02×2i198905-199103
W(LOCK),DEEP RED,TRIM3#
main71930-50010-03×2i198905-199208
W(LOCK),GRAY,TRIM1#
main71930-50010-04×2i198905-199208
W(LOCK),BLUE,TRIM8#
main71930-50010-06×2i198905-199208
W(LOCK),ROSE,TRIM4#
main71930-50010-08×2i198905-199208
W(LOCK),IVORY,TRIM0#
main71930-50010-A0×2i199208-199410
W(LOCK),IVORY,TRIM0#
main71930-50010-B0×2i199208-199410
W(LOCK),SLATE GRAY,TRIM1#
main71930-50010-C0×2i199208-199410
W(LOCK),BLACK,TRIM2#
main71930-50010-J0×2i199208-199410
W(LOCK),EISEN BLUE,TRIM8#
main71930-50010-K0×2i199208-199410
W(LOCK),ME. TAUPE,TRIM9#
main71931-50010-02×2i198905-199103
W/O(LOCK),DEEP RED,TRIM3#
main71931-50010-03×2i198905-199208
W/O(LOCK),GRAY,TRIM1#
main71931-50010-04×2i198905-199208
W/O(LOCK),BLUE,TRIM8#
main71931-50010-06×2i198905-199208
W/O(LOCK),ROSE,TRIM4#
main71931-50010-08×2i198905-199208
W/O(LOCK),IVORY,TRIM0#
main71931-50010-A0×2i199208-199410
W/O(LOCK),IVORY,TRIM0#
main71931-50010-B0×2i199208-199410
W/O(LOCK),SLATE GRAY,TRIM1#
main71931-50010-C0×2i199208-199410
W/O(LOCK),BLACK,TRIM2#
main71931-50010-J0×2i199208-199410
W/O(LOCK),EISEN BLUE,TRIM8#
main71931-50010-K0×2i199208-199410
W/O(LOCK),ME. TAUPE,TRIM9#
71940AHEADREST ASSY, REAR SEAT
main71940-50010-02×2i198905-199103
DEEP RED,TRIM3#
main71940-50010-03×2i198905-199208
GRAY,TRIM1#
main71940-50010-04×2i198905-199208
BLUE,TRIM8#
main71940-50010-06×2i198905-199208
ROSE,TRIM4#
main71940-50020-02×2i198905-199103
W(LEATHER SEAT),DEEP RED,TRIM3#
main71940-50020-03×2i198905-199208
W(LEATHER SEAT),GRAY,TRIM1#
main71940-50020-04×2i198905-199208
W(LEATHER SEAT),BLUE,TRIM8#
main71940-50020-06×2i198905-199208
W(LEATHER SEAT),ROSE,TRIM4#
main71940-50020-08×2i198905-199208
W(LEATHER SEAT),IVORY,TRIM0#
main71940-50020-A0×2i199208-199410
IVORY,TRIM0#
main71940-50020-B0×2i199208-199410
SHADOW GRAY,TRIM1#
main71940-50020-C0×2i199208-199410
BLACK,TRIM2#
main71940-50020-J0×2i199208-199410
DK. BLUE,TRIM8#
main71940-50020-K0×2i199208-199410
TAUPE,TRIM9#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-24010×2i198905-199208
main72693-32020×2i199208-199410
72802AHINGE SUB-ASSY, ARMREST CONSOLE
main72802-50020i199401-199410
72809LOCK SUB-ASSY, CENTER ARMREST
main72809-50020-A0i199401-199410
IVORY,TRIM0#
main72809-50020-B1i199401-199410
SLATE GRAY,TRIM1#
main72809-50020-C0i199401-199410
BLAK,TRIM2#
main72809-50020-J1i199401-199410
EISEN BLUE,TRIM8#
main72809-50020-K0i199401-199410
ME.TAUPE,TRIM9#
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-50010-02i198905-199103
DEEP RED,TRIM3#
main72830-50010-03i198905-199208
GRAY,TRIM1#
main72830-50010-04i198905-199208
BLUE,TRIM8#
main72830-50010-06i198905-199208
ROSE,TRIM4#
main72830-50020-02i198905-199103
W(LEATHER SEAT),DEEP RED,TRIM3#
main72830-50020-03i198905-199208
W(LEATHER SEAT),GRAY,TRIM1#
main72830-50020-04i198905-199208
W(LEATHER SEAT),BLUE,TRIM8#
main72830-50020-06i198905-199208
W(LEATHER SEAT),ROSE,TRIM4#
main72830-50020-08i198905-199208
W(LEATHER SEAT),IVORY,TRIM0#
main72830-50020-A0i199208-199410
IVORY,TRIM0#
main72830-50020-B0i199208-199410
SHADOW GRAY,TRIM1#
main72830-50020-C0i199208-199410
BLACK,TRIM2#
main72830-50020-J0i199208-199410
DK. BLUE,TRIM8#
main72830-50020-K0i199208-199410
TAUPE,TRIM9#
main72830-50131-A0i199401-199410
TAIWAN SPEC,IVORY,TRIM0#
main72830-50131-B0i199401-199410
TAIWAN SPEC,SHADOW GRAY,TRIM1#
main72830-50131-C0i199401-199410
TAIWAN SPEC,BLACK,TRIM2#
main72830-50131-J0i199401-199410
TAIWAN SPEC,DK. BLUE,TRIM8#
main72830-50131-K0i199401-199410
TAIWAN SPEC,TAUPE,TRIM9#
72830GCUSHION
main90541-03022-A0×2i199401-199410
IVORY,TRIM0#
main90541-03022-B0×2i199401-199410
SHADOW GRAY,TRIM1#
main90541-03022-C0×2i199401-199410
BLACK,TRIM2#
main90541-03022-J0×2i199401-199410
DK. BLUE,TRIM8#
main90541-03022-K0×2i199401-199410
TAUPE,TRIM9#
72830HSCREW, COUNTERSUNK TAPPING
main90161-45003-A0×2i199401-199410
IVORY,TRIM0#
main90161-45003-B0×2i199401-199410
GRAY,TRIM1#
main90161-45003-C0×2i199401-199410
BLACK,TRIM2#
main90161-45003-J0×2i199401-199410
BLUE,TRIM8#
main90161-45003-K0×2i199401-199410
ME. TAUPE,TRIM9#
72868COVER, CENTER ARMREST HINGE, RH
main72868-50010-02i198905-199103
DEEP RED,TRIM3#
main72868-50010-03i198905-199208
GRAY,TRIM1#
main72868-50010-04i198905-199208
BLUE,TRIM8#
main72868-50010-06i198905-199208
ROSE,TRIM4#
main72868-50010-08i198905-199208
IVORY,TRIM0#
main72868-50010-A0i199208-199410
IVORY,TRIM0#
main72868-50010-B1i199208-199410
LIGHT GRAY,TRIM1#
main72868-50010-B2i199208-199410
GRAY,TRIM2#
main72868-50010-J0i199208-199410
DK. BLUE,TRIM8#
main72868-50010-K0i199208-199410
TAUPE,TRIM9#
main72868-50040-A0i199401-199410
TAIWAN SPEC,IVORY,TRIM0#
main72868-50040-B1i199401-199410
TAIWAN SPEC,LIGHT GRAY,TRIM1#
main72868-50040-B2i199401-199410
TAIWAN SPEC,GRAY,TRIM2#
main72868-50040-J0i199401-199410
TAIWAN SPEC,DK. BLUE,TRIM8#
main72868-50040-K0i199401-199410
TAIWAN SPEC,TAUPE,TRIM9#
72869COVER, CENTER ARMREST HINGE, LH
main72869-50010-02i198905-199103
DEEP RED,TRIM3#
main72869-50010-03i198905-199208
GRAY,TRIM1#
main72869-50010-04i198905-199208
BLUE,TRIM8#
main72869-50010-06i198905-199208
ROSE,TRIM4#
main72869-50010-08i198905-199208
IVORY,TRIM0#
main72869-50010-A0i199208-199410
IVORY,TRIM0#
main72869-50010-B1i199208-199410
LIGHT GRAY,TRIM1#
main72869-50010-B2i199208-199410
GRAY,TRIM2#
main72869-50010-J0i199208-199410
DK. BLUE,TRIM8#
main72869-50010-K0i199208-199410
TAUPE,TRIM9#
main72869-50030-A0i199401-199410
TAIWAN SPEC,IVORY,TRIM0#
main72869-50030-B1i199401-199410
TAIWAN SPEC,LIGHT GRAY,TRIM1#
main72869-50030-B2i199401-199410
TAIWAN SPEC,GRAY,TRIM2#
main72869-50030-J0i199401-199410
TAIWAN SPEC,DK. BLUE,TRIM8#
main72869-50030-K0i199401-199410
TAIWAN SPEC,TAUPE,TRIM9#
9011908499
main90119-08499
9017604015
main90176-04015
9017906129
main90179-06129
9033325001
main90333-25001
9038606035
main90386-06035
9046804146
main90468-04146
9046818071
main90468-18071
9331514014
main93315-14014
9331516025
main93315-16025

37 parts on this diagram · 1 diagram in section
