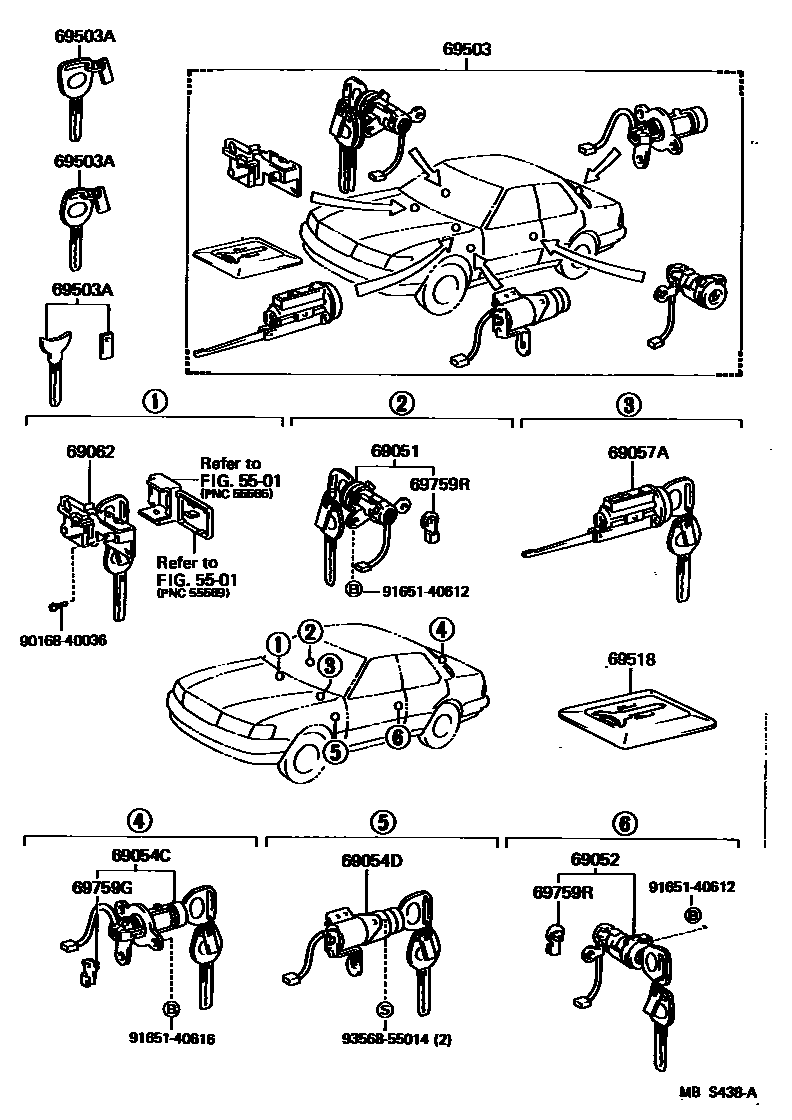

LOCK CYLINDER SET

0001 1 0002 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-50010iUCF10198905-199208

main69051-50060iUCF10199208-199410

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-50010iUCF10198905-199208

main69052-50080iUCF10199208-199410

69054CCYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-50010iUCF10198905-199208

main69055-50050iUCF10199208-199410

69054DCYLINDER & KEY SET, LUGGAGE OPENER CANCEL

main69053-50010iUCF10198905-199208

main69053-50040iUCF10199208-199410

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-50010iUCF10198905-199208

main69057-50040iUCF10199208-199410

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50010iUCF10198905-199208

main69056-50040iUCF10199208-199410

69503CYLINDER SET, LOCK

main69005-50020iUCF10198905-199008

main69005-50021iUCF10199008-199208

69503AKEY, BLANK

main90999-00173iUCF10198905-199410

MASTER KEY,CARD TYPE

main90999-00206iUCF10198905-199410

MASTER KEY,W(*68)

main90999-00207iUCF10198905-199410

SUB KEY,W(*68)

69518CARD, SPARE KEY

main69518-50010iUCF10198905-199008

main69518-50011iUCF10199008-199410

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080iUCF10198905-199410

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080iUCF10198905-199410

ORANGE

main69759-22090iUCF10198905-199410

PINK

9016840036

main90168-40036

9165140612

main91651-40612

9165140616

main91651-40616

9356855014

main93568-55014

16 parts on this diagram · 2 diagrams in section
