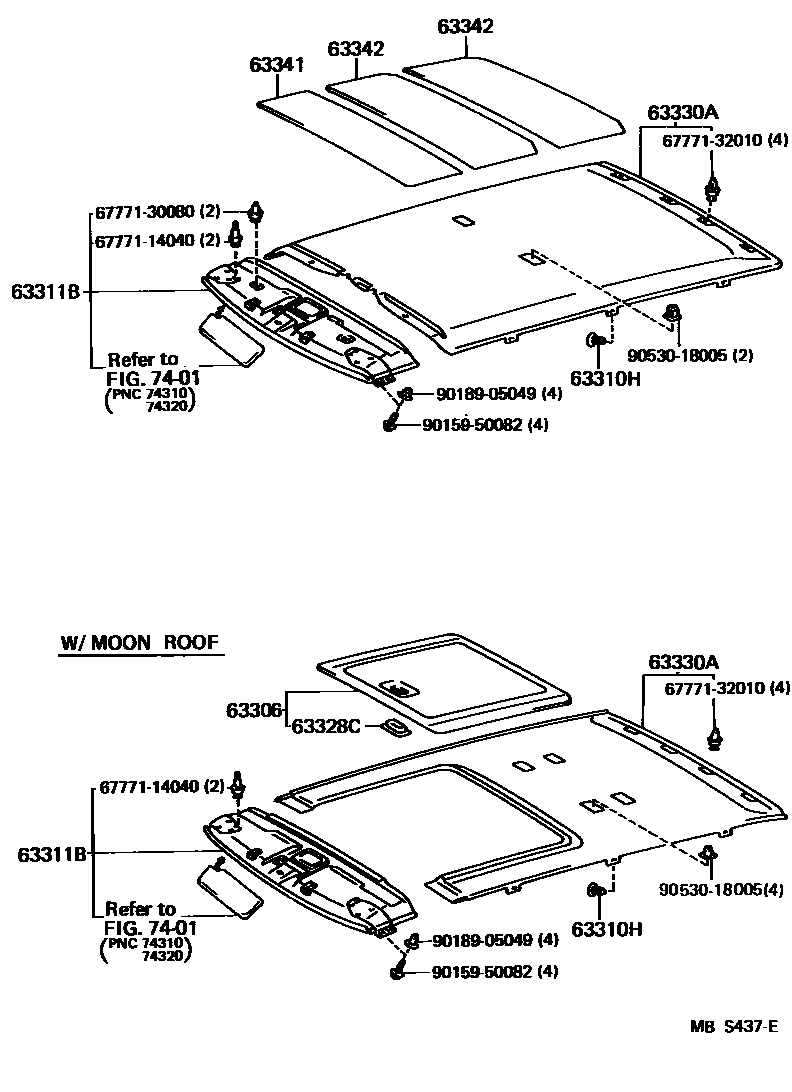

ROOF HEADLINING & SILENCER PAD

63306TRIM SUB-ASSY, SUNSHADE

main63306-50010-02iUCF10198905-199103

DEEP RED,TRIM3#

main63306-50010-03iUCF10198905-199208

SHADOW GRAY,TRIM1#

main63306-50010-04iUCF10198905-199208

DARK BLUE,TRIM8#

main63306-50010-05iUCF10198905-199208

GREIGE,TRIM0#

main63306-50010-06iUCF10198905-199208

DARK ROSE,TRIM4#

main63306-50010-B0iUCF10199208-199410

SHADOW GRAY,TRIM1#

main63306-50010-C0iUCF10199208-199410

BLACK,TRIM2#

main63306-50010-E0iUCF10..CND; UCF10..USA199401-199410

OAK,TRIM0#; OAK,TRIM0#,8#

main63306-50010-J0iUCF10199208-199410

DK. BLUE,TRIM8#

main63306-50010-K0iUCF10199208-199410

TAUPE,TRIM9#

63310HCLIP(FOR ROOF HEADLINING)

main90467-06048-01×9iUCF10199103-199203

BLACK,TRIM0#,1#,4#,8#; W(MOON ROOF),BLACK,TRIM0#,1#,4#,8#

main90467-06070-J0×6iUCF10199203-199208

LIGHT BLUE,TRIM0#,1#,4#,8#; W(MOON ROOF),LIGHT BLUE,TRIM0#,1#,4#,8#

63311BHEADLINING, ROOF, FRONT

main63311-50010-02iUCF10198905-199103

RED,TRIM3#

main63311-50010-03iUCF10198905-199108

SHADOW GRAY,TRIM1#

main63311-50010-04iUCF10198905-199108

DARK BLUE,TRIM8#

main63311-50010-05iUCF10198905-199108

GREIGE,TRIM0#

main63311-50010-06iUCF10198905-199108

DARK ROSE,TRIM4#

main63311-50011-B0iUCF10199108-199208

SHADOW GRAY,TRIM1#

main63311-50011-E0iUCF10199108-199208

DARK ROSE,TRIM4#

main63311-50011-E1iUCF10199108-199208

GREIGE,TRIM0#

main63311-50011-J0iUCF10199108-199208

DARK BLUE,TRIM8#

main63311-50020-02iUCF10198905-199103

W(MOON ROOF),RED,TRIM3#

main63311-50020-03iUCF10198905-199108

W(MOON ROOF),SHADOW GRAY,TRIM1#

main63311-50020-04iUCF10198905-199108

W(MOON ROOF),DARK BLUE,TRIM8#

main63311-50020-05iUCF10198905-199108

W(MOON ROOF),GREIGE,TRIM0#

main63311-50020-06iUCF10198905-199108

W(MOON ROOF),DARK ROSE,TRIM4#

main63311-50021-B0iUCF10199108-199208

W(MOON ROOF),SHADOW GRAY,TRIM1#

main63311-50021-E0iUCF10199108-199208

W(MOON ROOF),DARK ROSE,TRIM4#

main63311-50021-E1iUCF10199108-199208

W(MOON ROOF),GREIGE,TRIM0#

main63311-50021-J0iUCF10199108-199208

W(MOON ROOF),DARK BLUE,TRIM8#

main63311-50110-B0iUCF10199208-199410

SHADOW GRAY,TRIM1#

main63311-50110-C0iUCF10199208-199410

BLACK,TRIM2#

main63311-50110-E0iUCF10199208-199410

OAK,TRIM0#

main63311-50110-J0iUCF10199208-199410

DK. BLUE,TRIM8#

main63311-50110-K0iUCF10199208-199410

TAUPE,TRIM9#

main63311-50120-B0iUCF10199208-199410

W(MOON ROOF),SHADOW GRAY,TRIM1#

main63311-50120-C0iUCF10199208-199410

W(MOON ROOF),BLACK,TRIM2#

main63311-50120-E0iUCF10199208-199410

W(MOON ROOF),OAK,TRIM0#

main63311-50120-J0iUCF10199208-199410

W(MOON ROOF),DK. BLUE,TRIM8#

main63311-50120-K0iUCF10199208-199410

W(MOON ROOF),TAUPE,TRIM9#

63328CKNOB, SUNSHADE TRIM

main63328-50010-02iUCF10198905-199103

DEEP RED,TRIM3#

main63328-50010-03iUCF10198905-199208

SHADOW GRAY,TRIM1#

main63328-50010-04iUCF10198905-199208

DARK BLUE,TRIM8#

main63328-50010-05iUCF10198905-199208

GREIGE,TRIM0#

main63328-50010-06iUCF10198905-199208

DARK ROSE,TRIM4#

main63328-50010-B0iUCF10199208-199410

SHADOW GRAY,TRIM1#

main63328-50010-C0iUCF10199208-199410

BLACK,TRIM2#

main63328-50010-E0iUCF10199208-199410

OAK,TRIM0#

main63328-50010-J0iUCF10199208-199410

DARK BLUE,TRIM8#

main63328-50010-K0iUCF10199208-199410

TUAPE,TRIM9#

63330AHEADLINING ASSY, ROOF, REAR

main63312-50010-02iUCF10198905-199103

RED,TRIM3#

main63312-50010-03iUCF10198905-199208

SHADOW GRAY,TRIM1#

main63312-50010-04iUCF10198905-199208

DARK BLUE,TRIM8#

main63312-50010-05iUCF10198905-199208

GREIGE,TRIM0#

main63312-50010-06iUCF10198905-199208

DARK ROSE,TRIM4#

main63312-50010-B0iUCF10199208-199410

SHADOW GRAY,TRIM1#

main63312-50010-C0iUCF10199208-199410

BLACK,TRIM2#

main63312-50010-E0iUCF10199208-199410

OAK,TRIM0#

main63312-50010-J0iUCF10199208-199410

DK. BLUE,TRIM8#

main63312-50010-K0iUCF10199208-199410

TAUPE,TRIM9#

main63312-50020-02iUCF10198905-199103

W(MOON ROOF),RED,TRIM3#

main63312-50020-03iUCF10198905-199208

W(MOON ROOF),SHADOW GRAY,TRIM1#

main63312-50020-04iUCF10198905-199208

W(MOON ROOF),DARK BLUE,TRIM8#

main63312-50020-05iUCF10198905-199208

W(MOON ROOF),GREIGE,TRIM0#

main63312-50020-06iUCF10198905-199208

W(MOON ROOF),DARK ROSE,TRIM4#

main63312-50020-B0iUCF10199208-199410

W(MOON ROOF),SHADOW GRAY,TRIM1#

main63312-50020-C0iUCF10199208-199410

W(MOON ROOF),BLACK,TRIM2#

main63312-50020-E0iUCF10199208-199410

W(MOON ROOF),OAK,TRIM0#

main63312-50020-J0iUCF10199208-199410

W(MOON ROOF),DK. BLUE,TRIM8#

main63312-50020-K0iUCF10199208-199410

W(MOON ROOF),TAUPE,TRIM9#

63341PAD, ROOF SILENCER, NO.1

main63341-50020iUCF10198905-199410

63342PAD, ROOF SILENCER, NO.2

main63341-50030×2iUCF10198905-199410

7401ARMREST & VISOR

→ Go to FIG 74-01

6777114040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14040

6777130080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30080

6777132010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32010

9015950082

main90159-50082

9018905049

main90189-05049

9053018005

main90530-18005

14 parts on this diagram · 1 diagram in section
