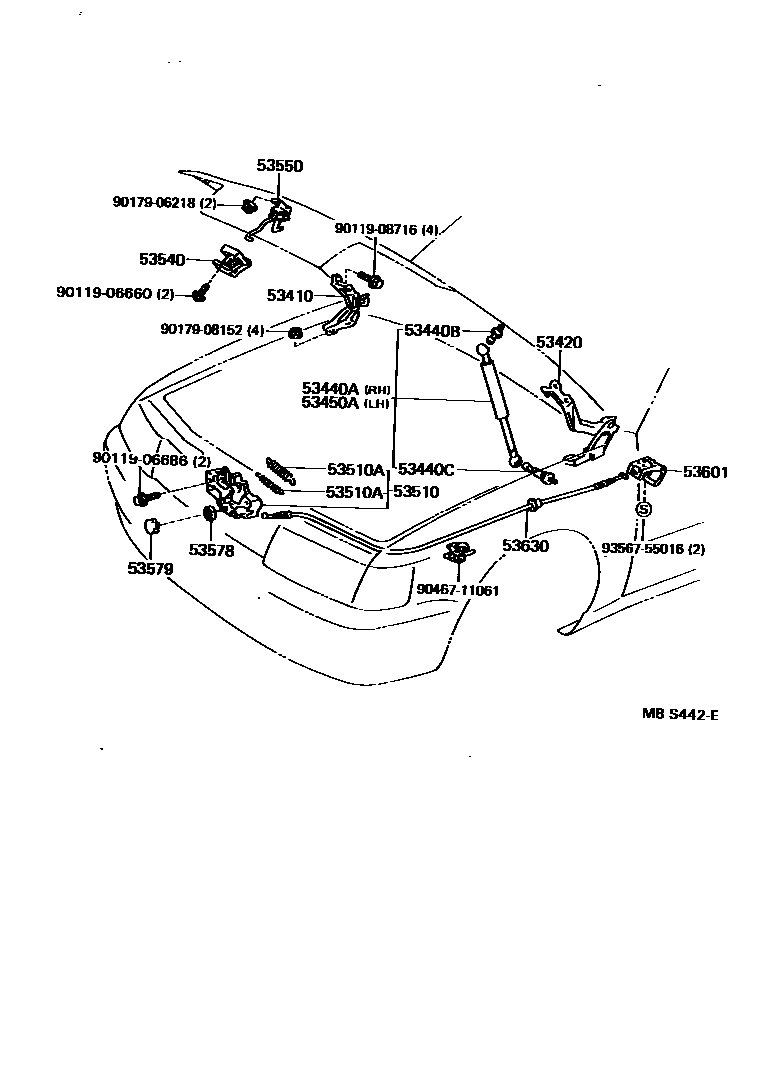

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-50010iUCF10198905-199410

53420HINGE ASSY, HOOD, LH

main53420-50010iUCF10198905-199410

53440ASUPPORT ASSY, HOOD, RH

main53440-59015iUCF10198905-199410

53440BBOLT, HOOD SUPPORT, NO.1

main68961-50010×2iUCF10198905-199410

53440CBOLT, HOOD SUPPORT, NO.2

main68961-50020×2iUCF10198905-199410

53450ASUPPORT ASSY, HOOD, LH

main53450-59015iUCF10198905-199410

53510LOCK ASSY, HOOD

main53510-33010iUCF10199208-199410

main53510-50010iUCF10198905-199208

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09039iUCF10198905-198912

WD=0.9,CW=21.25,OD=9,L=34.4

main90506-09050iUCF10198912-199410

WD=0.9,CW=20.5,OD=9,L=36.3

main90506-18061iUCF10198905-198912

WD=1.8,CW=18,OD=15,L=52

main90506-18068iUCF10198912-199410

WD=1.8,CW=18,OD=15,L=52

53540LEVER ASSY, AUXILIARY CATCH RELEASE

main53540-50010iUCF10198905-199410

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-50010iUCF10198905-199410

53578NUT, HOOD LOCK

main53578-50010iUCF10198905-199410

53579CAP, HOOD LOCK NUT

main53579-50010iUCF10198905-199410

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-50010-02iUCF10198905-199103

DEEP RED,TRIM3#

main53601-50010-03iUCF10198905-199208

GRAY,TRIM1#

main53601-50010-04iUCF10198905-199208

BLUE,TRIM8#

main53601-50010-06iUCF10198905-199208

ROSE,TRIM4#

main53601-50010-08iUCF10198905-199208

IVORY,TRIM0#

main53601-50010-A0iUCF10199208-199410

IVORY,TRIM0#

main53601-50010-B0iUCF10199208-199410

LIGHT GRAY,TRIM1#

main53601-50010-C0iUCF10199208-199410

BLACK,TRIM2#

main53601-50010-J0iUCF10199208-199410

GRAISH BLUE,TRIM8#

main53601-50010-K0iUCF10199208-199410

MI. TAUPE,TRIM9#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-50020iUCF10198905-199208

main53630-50040iUCF10199208-199410

9011906660

main90119-06660

9011906686

main90119-06686

9011908716

main90119-08716

9017906218

main90179-06218

9017908152

main90179-08152

9046711061

main90467-11061

9356755016

main93567-55016

21 parts on this diagram · 1 diagram in section
