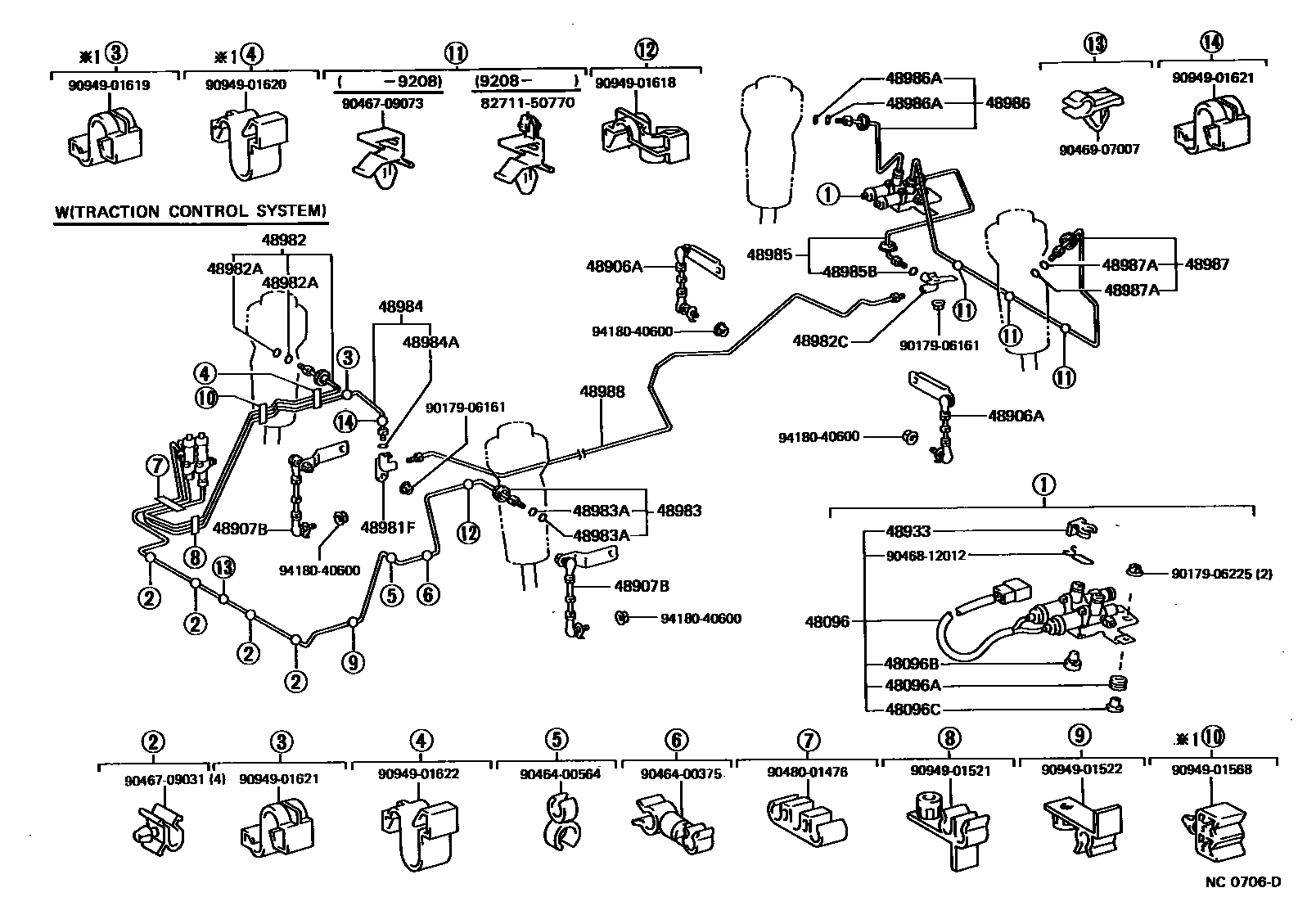

HEIGHT CONTROL (AUTO-LEVELER)
48096VALVE SUB-ASSY, HEIGHT CONTROL, NO.2
48096ABUSH, NO.2(FOR HEIGHT CONTROL VALVE)
48096BCUSHION, NO.2(FOR HEIGHT CONTROL VALVE)
48096CSPACER, NO.2(FOR HEIGHT CONTROL VALVE)
48906ALINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR
RH
LH
48907BLINK SUB-ASSY, HEIGHT CONTROL SENSOR, FRONT
RH
LH
RH
LH
48933HOLDER, AIR CONNECTOR CLIP
48981TUBE, HEIGHT CONTROL, NO.1
48981FWAY, NO.1(FOR HEIGHT CONTROL TUBE)
48982TUBE, HEIGHT CONTROL, NO.2
W(TRACTION CONTROL SYSTEM)
W(TRACTION CONTROL SYSTEM)
48982ARING, O(FOR HEIGHT CONTROL TUBE NO.2)
48982CWAY, NO.2(FOR HEIGHT CONTROL TUBE)
48983TUBE, HEIGHT CONTROL, NO.3
48983ARING, O(FOR HEIGHT CONTROL TUBE NO.3)
48984TUBE, HEIGHT CONTROL, NO.4
W(TRACTION CONTROL SYSTEM)
48984ARING, O(FOR HEIGHT CONTROL TUBE NO.4)
48985TUBE, HEIGHT CONTROL, NO.5
48985BRING, O(FOR HEIGHT CONTROL TUBE NO.5)
48986TUBE, HEIGHT CONTROL, NO.6
48986ARING, O(FOR HEIGHT CONTROL NO.6 TUBE)
48987TUBE, HEIGHT CONTROL, NO.7
48987ARING, O(FOR HEIGHT CONTROL NO.7 TUBE)
48988TUBE, HEIGHT CONTROL, NO.8
8271150770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-50770
9017906161
main90179-06161
9017906225
main90179-06225
9046400375
main90464-00375
9046400564
main90464-00564
9046709031
main90467-09031
9046709073
main90467-09073
9046812012
main90468-12012
9046907007
main90469-07007
9048001476
main90480-01476
9094901521
main90949-01521
9094901522
main90949-01522
9094901568
main90949-01568
9094901618
main90949-01618
9094901619
main90949-01619
9094901620
main90949-01620
9094901621
main90949-01621
9094901622
main90949-01622
9418040600
main94180-40600
42 parts on this diagram · 2 diagrams in section
