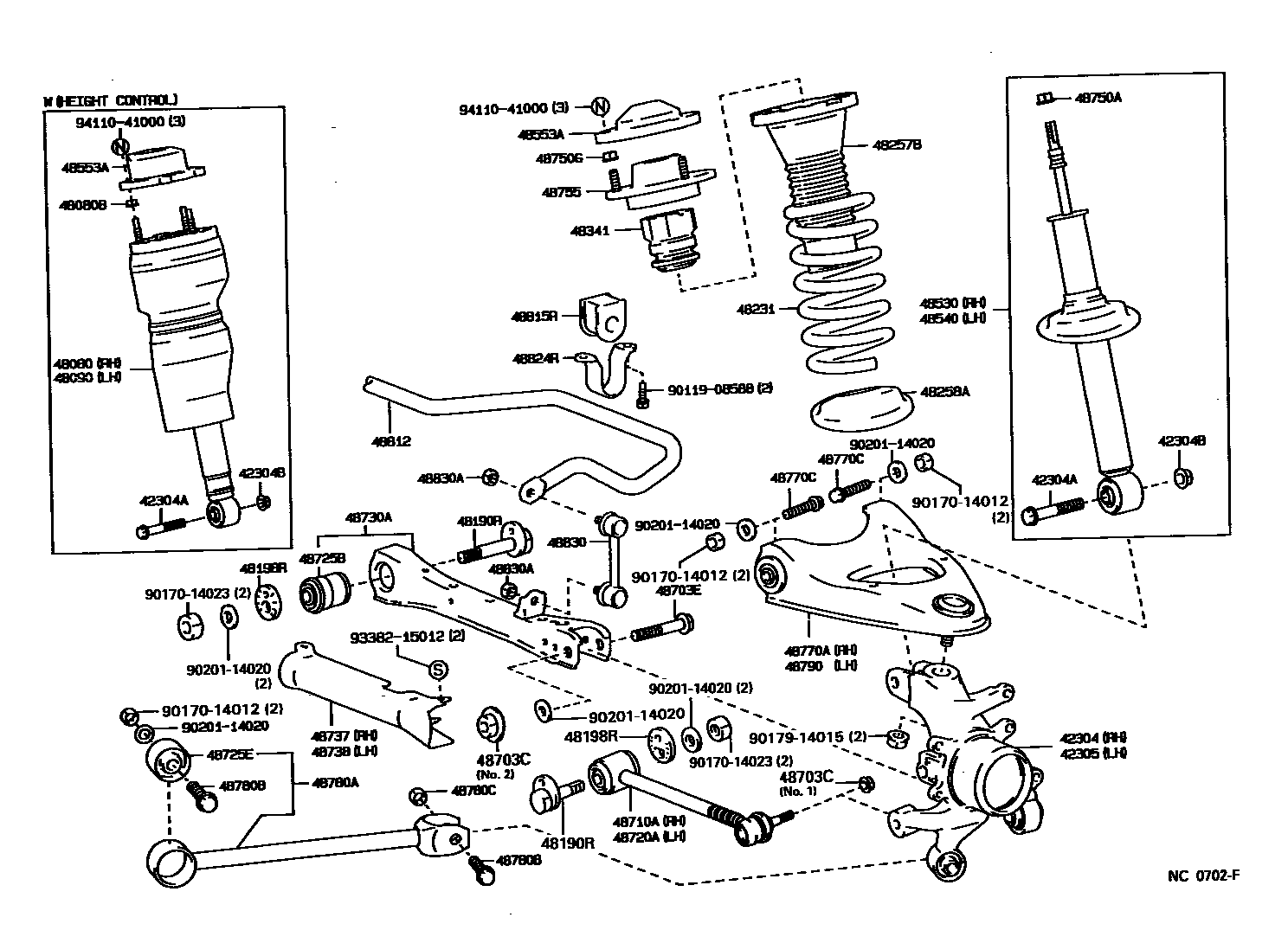

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304ABOLT (FOR REAR AXLE CARRIER)
42304BNUT (FOR REAR AXLE CARRIER)
42305CARRIER SUB-ASSY, REAR AXLE, LH
48080CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER
48080BNUT(FOR PNEUMATIC CYLINDER REAR)
48090CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER
48190RCAM ASSY, CAMBER ADJUST
48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48231SPRING, COIL, REAR
ROUGH ROAD PACKAGE & GUATEMALA SPEC
48257BINSULATOR, REAR COIL SPRING, UPPER
48258AINSULATOR, REAR COIL SPRING, LOWER
48341BUMPER, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
ROUGH ROAD PACKAGE & GUATEMALA SPEC
48540ABSORBER ASSY, SHOCK, REAR LH
ROUGH ROAD PACKAGE & GUATEMALA SPEC
48553ACAP, SHOCK ABSORBER
W(AIR SUSPENSION)
W(AIR SUSPENSION)
48703CNUT(FOR REAR SUSPENSION ARM)
NO.1
NO.2
NO.2
48703EBOLT(FOR REAR SUSPENSION ARM)
*14-1.5PX70-64
*14-1.5PX70-64
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
W(AIR SUSPENSION)
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
W(AIR SUSPENSION)
48725BBUSH, REAR SUSPENSION ARM, NO.1
48725EBUSH, REAR STRUT ROD
48730AARM ASSY, REAR SUSPENSION, NO.2
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48755SUPPORT, REAR SUSPENSION
48770AARM ASSY, UPPER CONTROL, REAR RH
48770CBOLT(FOR REAR UPPER CONTROL ARM)
48780AROD ASSY, STRUT, REAR
48780BBOLT(FOR STRUT ROD)
BODY SIDE
CARRIER SIDE
CARRIER SIDE
48780CNUT(FOR STRUT ROD)
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
W(AIR SUSPENSION)
48815RBUSH, STABILIZER(FOR REAR)
W(AIR SUSPENSION)
48824RBRACKET, STABILIZER(FOR REAR)
48830LINK ASSY, REAR STABILIZER
48830ANUT(FOR REAR STABILIZER LINK)
9011908588
main90119-08588
9017014012
main90170-14012
9017014023
main90170-14023
9017914015
main90179-14015
9020114020
main90201-14020
9338215012
main93382-15012
9411041000
main94110-41000
46 parts on this diagram · 1 diagram in section
