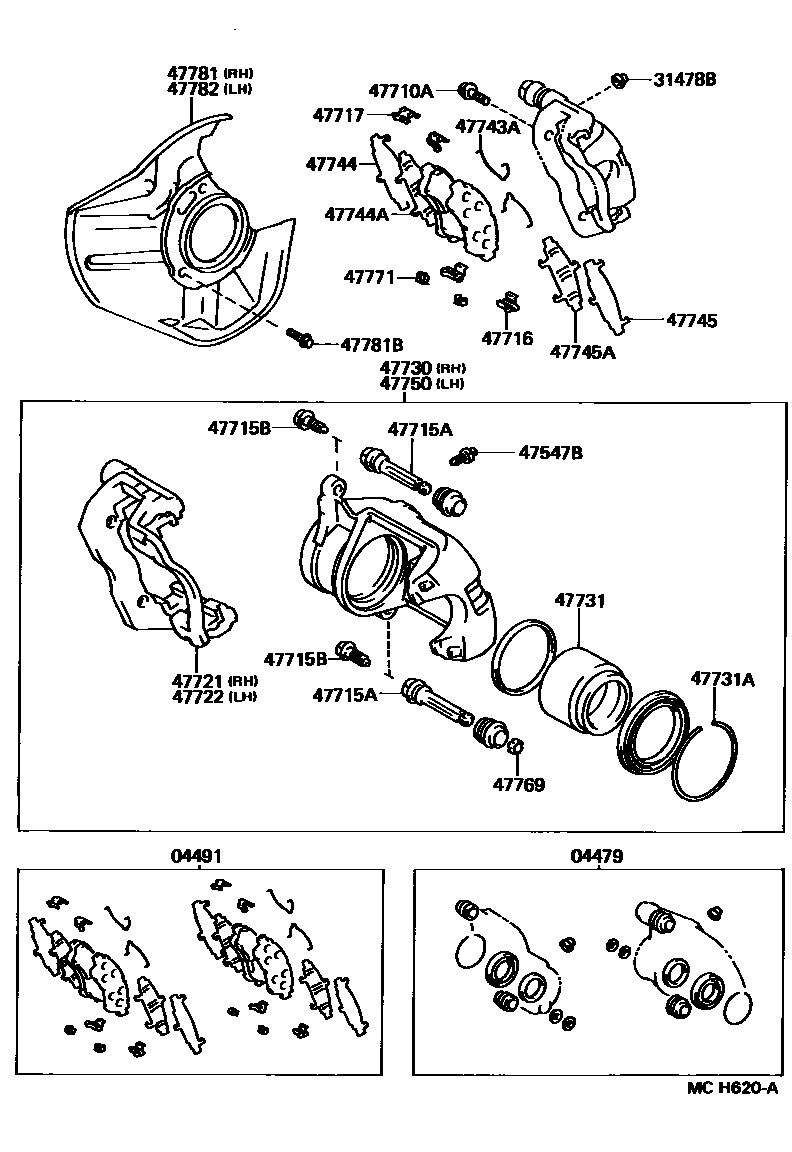

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-50010iUCF10198905-199008

main04479-50030iUCF10199008-199208

main04479-50050iUCF10199208-199410

sub04479-50051

04491PAD KIT, DISC BRAKE, FRONT

main04491-24031iUCF10199108-199208

sub04491-24060

main04491-50010iUCF10198905-199003

main04491-50011iUCF10199003-199008

sub04465-50130

main04491-50031iUCF10199008-199108

sub04465-50130

main04491-50070iUCF10199208-199303

main04491-50071iUCF10199303-199304

main04491-50110iUCF10199304-199410

sub04491-50111

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iUCF10198905-199208

main31478-50020×2iUCF10199208-199410

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030×2iUCF10198905-199410

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175×4iUCF10198905-199410

*12-1.25PX35-27

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-50010×4iUCF10198905-199008

main47715-50020×4iUCF10199008-199410

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164×4iUCF10198905-199410

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-30080×2iUCF10199208-199303

sub47716-24010

main47716-50010×2iUCF10198905-199208

INNER

main47716-50030×2iUCF10198905-199208

OUTER

main47716-50050×2iUCF10199303-199410

sub47716-50051

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-30090×2iUCF10199208-199303

sub47716-24020

main47716-50060×2iUCF10199303-199410

sub47716-50061

main47717-50010×2iUCF10198905-199003

INNER

main47717-50011×2iUCF10199003-199208

INNER

main47717-50030×2iUCF10198905-199003

OUTER

main47717-50031×2iUCF10199003-199208

OUTER

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-50010iUCF10198905-199008

main47721-50030iUCF10199008-199208

main47721-50050iUCF10199208-199402

main47721-50052iUCF10199402-199410

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-50010iUCF10198905-199008

main47722-50030iUCF10199008-199208

main47722-50050iUCF10199208-199402

main47722-50052iUCF10199402-199410

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-50010iUCF10198905-199008

main47730-50030iUCF10199008-199208

sub47730-50031

main47730-50060iUCF10199208-199303

main47730-50061iUCF10199303-199304

main47730-50062iUCF10199304-199402

main47730-50063iUCF10199402-199410

47731PISTON, FRONT DISC BRAKE

main47731-50010×2iUCF10198905-199008

main47731-50030×4iUCF10199008-199410

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-50002×4iUCF10199008-199410

main90522-76002×2iUCF10198905-199008

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-30020×4iUCF10199208-199410

main47743-50010×4iUCF10198905-199008

main47743-50030×4iUCF10199008-199208

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-50010×2iUCF10198905-199208

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-50010×2iUCF10198905-199208

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-50010×2iUCF10198905-199208

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-50010×2iUCF10198905-199208

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-50010iUCF10198905-199008

main47750-50030iUCF10199008-199208

sub47750-50031

main47750-50060iUCF10199208-199303

main47750-50061iUCF10199303-199304

main47750-50062iUCF10199304-199402

main47750-50063iUCF10199402-199410

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010×2iUCF10198905-199410

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-50010×4iUCF10198905-199208

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-50010iUCF10198905-199208

sub47781-50011

main47781-50020iUCF10199208-199410

sub47781-50021

sub90148-60028

47781BBOLT(FOR DUST COVER SETTING)

main90119-06227×8iUCF10198905-199410

*6-1.0PX14-7.5

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-50010iUCF10198905-199208

sub47782-50011

main47782-50020iUCF10199208-199410

sub47782-50021

sub90148-60028
