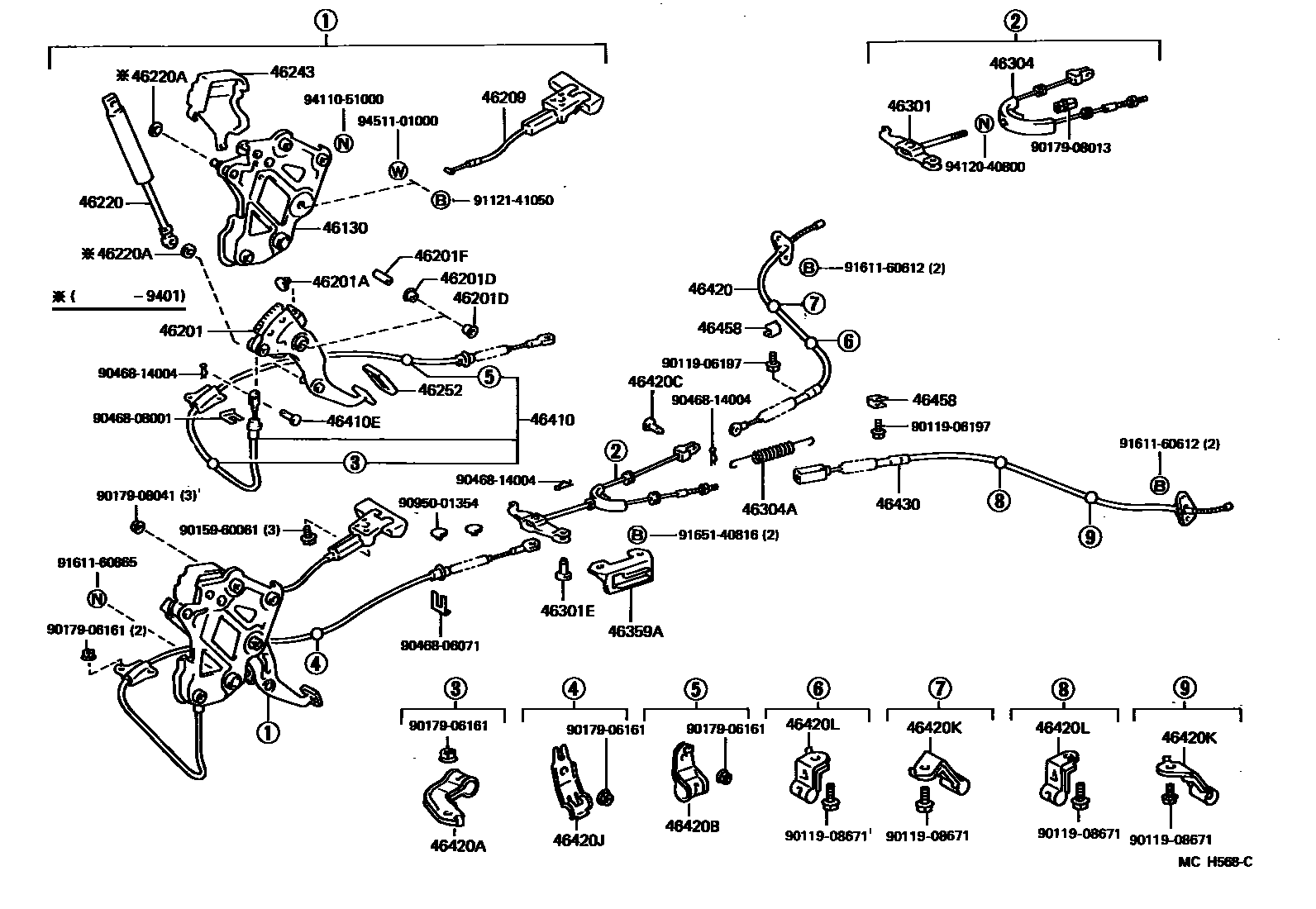

PARKING BRAKE & CABLE
46130BRACKET ASSY, PARKING BRAKE PEDAL
46201PEDAL SUB-ASSY, PARKING BRAKE
46201ACUSHION(FOR PARKING BRAKE PEDAL)
46201DBUSH(FOR PARKING BRAKE PEDAL)
46201FCOLLAR(FOR PARKING BRAKE PEDAL)
46209CABLE SUB-ASSY, PARKING BRAKE RELEASE
DEEP RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
BRACK,TRIM2#
OAK,TRIM0#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DK.BLUE,TRIM8#
46220ABSORBER ASSY, PARKING BRAKE PEDAL RETURN
46220ACUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER)
46252PAD, PARKING PEDAL
46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)
46304EQUALIZER SUB-ASSY, PARKING BRAKE
46304ASPRING, TENSION(FOR PARKING BRAKE EQUALIZER)
46359ABRACKET, PARKING BRAKE INTERMEDIATE LEVER SUPPORT
46410CABLE ASSY, PARKING BRAKE, NO.1
46410EPIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1)
46420CABLE ASSY, PARKING BRAKE, NO.2
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)
46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)
46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)
46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)
RH
LH
46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)
RH
LH
46430CABLE ASSY, PARKING BRAKE, NO.3
9011906197
main90119-06197
9011908671
main90119-08671
9015960061
main90159-60061
9017906161
main90179-06161
9017908013
main90179-08013
9017908041
main90179-08041
9046806071
main90468-06071
9046808001
main90468-08001
9046814004
main90468-14004
9095001354
main90950-01354
9112141050
main91121-41050
9161160612
main91611-60612
9161160865
main91611-60865
9165140816
main91651-40816
9411051000
main94110-51000
9412040800
main94120-40800
9451101000
main94511-01000
43 parts on this diagram · 2 diagrams in section
