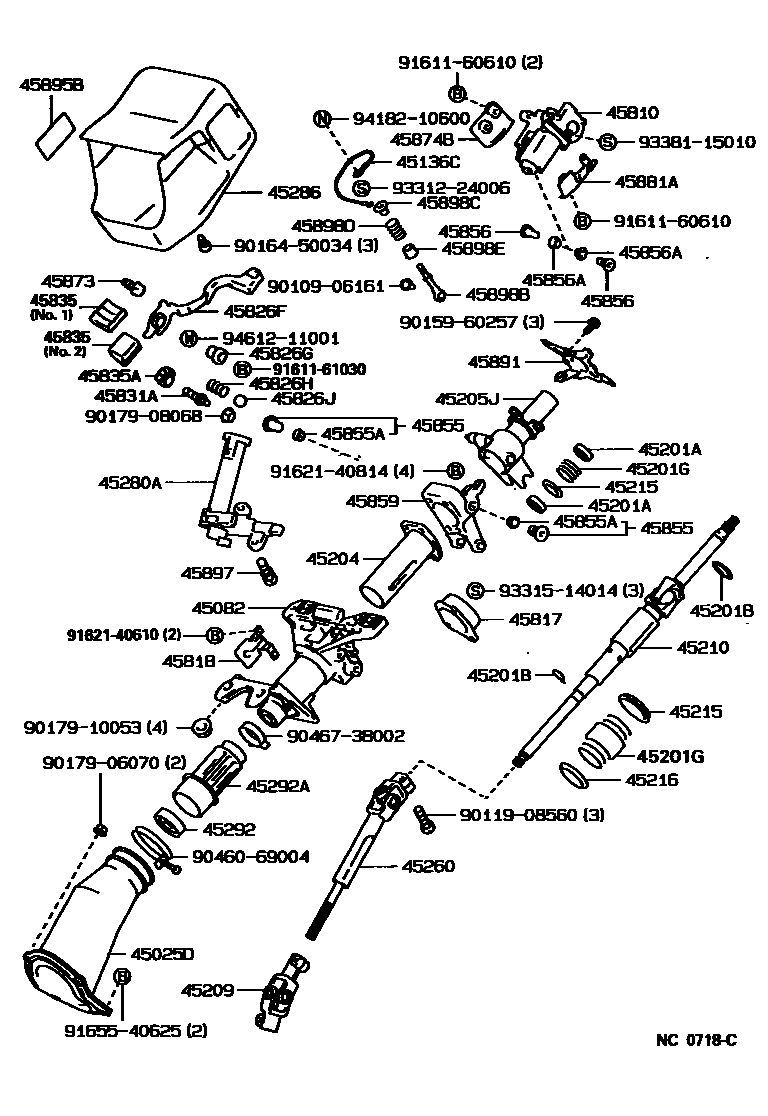

STEERING COLUMN & SHAFT

0001 1 0002 1AUTOMATIC ADJUSTMENT SYSTEM

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-50010iUCF10198905-199410

45082BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE

main45082-50010iUCF10..USA199208-199410

main45082-50020iUCF10..CND; UCF10..USA199208-199410

W(AUTOMATIC ADJUSTMENT SYSTEM)

45136CCABLE, BOND(FOR HORN EARTH)

main90980-07312iUCF10198905-199410

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005×2iUCF10198905-199410

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-16002iUCF10198905-199410

T=2.00,ID=15.3

main90520-17042iUCF10198905-199410

T=1.20

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-20098iUCF10..USA199208-199410

LWR

main90501-40017iUCF10..CND; UCF10..USA199208-199410

UPR; W(AUTOMATIC ADJUSTMENT SYSTEM)

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-50020iUCF10198905-198910

main45204-50021iUCF10198910-199208

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-50010iUCF10198905-199410

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-50010iUCF10198905-199410

45210SHAFT ASSY, STEERING MAIN

main45210-50010iUCF10198905-199410

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iUCF10..CND; UCF10..USA199208-199410

UPR; W(AUTOMATIC ADJUSTMENT SYSTEM)

main45215-22020iUCF10198905-199208

LWR

45216SHAFT, STEERING SLIDING

main45216-22010iUCF10198905-199208

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-50010iUCF10198905-199208

main45260-50030iUCF10199208-199410

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-50010iUCF10198905-198910

main45280-50011iUCF10198910-199208

main45280-50012iUCF10199208-199410

45286COVER, STEERING COLUMN

main45286-50903-02iUCF10198905-199103

DEEP RED,TRIM3#

main45286-50903-03iUCF10198905-199208

SHADOW GRAY,TRIM1#

main45286-50903-04iUCF10198905-199208

DARK BLUE,TRIM8#

main45286-50903-05iUCF10198912-199208

GREIGE,TRIM0#

main45286-50903-06iUCF10198905-199208

DARK ROSE,TRIM4#

main45286-50903-C0iUCF10..USA199208-199410

BLACK,TRIM2#

main45286-50903-E0iUCF10..USA199208-199410

OAK,TRIM0#

main45286-50903-K0iUCF10..USA199208-199410

TAUPE,TRIM9#

main45286-50903-P0iUCF10..USA199208-199410

SHADOW GRAY,TRIM1#

main45286-50903-W3iUCF10..USA199208-199410

DK.BLUE,TRIM8#

main45286-50904-02iUCF10198905-199103

W(AUTOMATIC ADJUSTMENT SYSTEM),DEEP RED,TRIM3#

main45286-50904-03iUCF10198905-199208

W(AUTOMATIC ADJUSTMENT SYSTEM),SHADOW GRAY,TRIM1#

main45286-50904-04iUCF10198905-199208

W(AUTOMATIC ADJUSTMENT SYSTEM),DARK BLUE,TRIM8#

main45286-50904-05iUCF10198912-199208

W(AUTOMATIC ADJUSTMENT SYSTEM),GREIGE,TRIM0#

main45286-50904-06iUCF10198905-199208

W(AUTOMATIC ADJUSTMENT SYSTEM),DARK ROSE,TRIM4#

main45286-50904-C0iUCF10..CND; UCF10..USA199208-199410

BLACK,TRIM2#; W(AUTOMATIC ADJUSTMENT SYSTEM),BLACK,TRIM2#

main45286-50904-E0iUCF10..CND; UCF10..USA199208-199410

OAK,TRIM0#; W(AUTOMATIC ADJUSTMENT SYSTEM),OAK,TRIM0#

main45286-50904-K0iUCF10..CND; UCF10..USA199208-199410

TAUPE,TRIM9#; W(AUTOMATIC ADJUSTMENT SYSTEM),TAUPE,TRIM9#

main45286-50904-P0iUCF10..CND; UCF10..USA199208-199410

SHADOW GRAY,TRIM1#; W(AUTOMATIC ADJUSTMENT SYSTEM),SHADOW GRAY,TRIM1#

main45286-50904-W3iUCF10..CND; UCF10..USA199208-199410

DK.BLUE,TRIM8#; W(AUTOMATIC ADJUSTMENT SYSTEM),DK.BLUE,TRIM8#

45292SEAL, MAIN SHAFT LOWER DUST

main45292-22130iUCF10198905-199410

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-50020iUCF10..USA199208-199410

main45292-50030iUCF10..CND; UCF10..USA199208-199410

W(AUTOMATIC ADJUSTMENT SYSTEM)

45810GEAR ASSY, TILT STEERING, W/MOTOR

main45810-50010iUCF10198905-199410

45817STOPPER, STEERING SHAFT THRUST

main45817-50010iUCF10198905-198910

main45817-50011iUCF10198910-199208

45818BRACKET, CONNECTOR

main45818-50010iUCF10198905-199410

45826FLEVER, STEERING TELESCOPIC

main45826-50010-02iUCF10198905-199103

DEEP RED,TRIM3#

main45826-50010-03iUCF10198905-199208

SHADOW GRAY,TRIM1#

main45826-50010-04iUCF10198905-199208

DARK BLUE,TRIM8#

main45826-50010-05iUCF10198905-199208

GREIGE,TRIM0#

main45826-50010-06iUCF10198905-199208

DARK ROSE,TRIM4#

main45826-50010-B0iUCF10..USA199208-199308

SHADOW GRAY,TRIM1#

main45826-50010-C0iUCF10..USA199208-199308

BLACK,TRIM2#

main45826-50010-E0iUCF10..USA199208-199308

OAK,TRIM0#

main45826-50010-J0iUCF10..USA199208-199308

DK.BLUE,TRIM8#

main45826-50010-K0iUCF10..USA199208-199308

TAUPE,TRIM9#

main45826-50020iUCF10..USA199308-199410

45826GCOLLAR(FOR STEERING TELESCOPIC LEVER)

main90389-10022iUCF10198905-199208

45826HSPRING, COMPRESSION(FOR STEERING TELESCOPIC LEVER)

main90501-12014iUCF10198905-199208

45826JBALL(FOR STEERING TELESCOPIC LEVER)

main90360-06001iUCF10198905-199208

45831ABOLT, TELESCOPE LEVER LOCK

main45831-22010iUCF10198905-199208

45835WEDGE, LOCK

main45835-22030iUCF10..USA199208-199410

TUBE SIDE

main45835-22040iUCF10..USA199208-199410

BOLT SIDE

45835AATTACHMENT, TILT LEVER SERRATION

main45835-22010iUCF10198905-199208

45855BOLT, TILT STEERING, NO.1

main45086-50010×2iUCF10198905-199410

OD=20

45855ABUSH(FOR TILT STEERING BOLT NO.1)

main90389-10024×2iUCF10198905-199410

45856BOLT, TILT STEERING, NO.2

main45856-50010×2iUCF10198905-199410

OD=16.2

45856ABUSH(FOR TILT STEERING BOLT NO.2)

main90389-08081×2iUCF10198905-199410

45859SUPPORT, TILT STEERING HOUSING

main45859-50010iUCF10198905-199410

45873STOPPER, STEERING COLUMN TUBE

main45873-50020iUCF10198905-199208

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-50010iUCF10198905-199410

45881APROTECTOR, STEERING COLUMN, NO.2

main45881-50010iUCF10198905-199410

45891BRACKET, TURN SIGNAL

main45891-50010iUCF10198905-199410

45895BPLATE, TILT LEVER INSTRUCTION

main45895-50010-02iUCF10198905-199103

DEEP RED,TRIM3#

main45895-50010-03iUCF10198905-199208

SHADOW GRAY,TRIM1#

main45895-50010-04iUCF10198905-199208

DARK BLUE,TRIM8#

main45895-50010-05iUCF10198905-199208

GREIGE,TRIM0#

main45895-50010-06iUCF10198905-199208

DARK ROSE,TRIM4#

main45895-50010-E0iUCF10199208-199308

OAK,TRIM0#

main45895-50010-K0iUCF10199208-199308

TAUPE,TRIM9#

main45895-50010-P0iUCF10199208-199308

SHADOW GRAY,TRIM1#,2#,8#

45897BOLT, STEERING LOCK SET

main45897-12020×2iUCF10198911-199410

main45897-22080×2iUCF10198905-198911

45898BBOLT, TILT STEERING SUPPORT STOPPER

main45898-50010×2iUCF10198905-199104

main45898-50011×2iUCF10199104-199410

45898CSPACER(FOR TILT STEERING SUPPORT STOPPER BOLT)

main90561-06010×2iUCF10198905-199410

45898DSPRING(FOR TILT STEERING SUPPORT STOPPER BOLT)

main90501-18082×2iUCF10198905-199104

main90501-18096×2iUCF10199104-199410

45898EBUSH(FOR TILT STEERING SUPPORT BOLT)

main90389-11010×2iUCF10198905-199410

9010906161

main90109-06161

9011908560

main90119-08560

9015960257

main90159-60257

9016450034

main90164-50034

9017906070

main90179-06070

9017908068

main90179-08068

9017910053

main90179-10053

9046069004

main90460-69004

9046738002

main90467-38002

9161160610

main91611-60610

9161161030

main91611-61030

9162140610

main91621-40610

9162140814

main91621-40814

9165540625

main91655-40625

9331224006

main93312-24006

9331514014

main93315-14014

9338115010

main93381-15010

9418210600

main94182-10600

9461211001

main94612-11001

61 parts on this diagram · 2 diagrams in section
