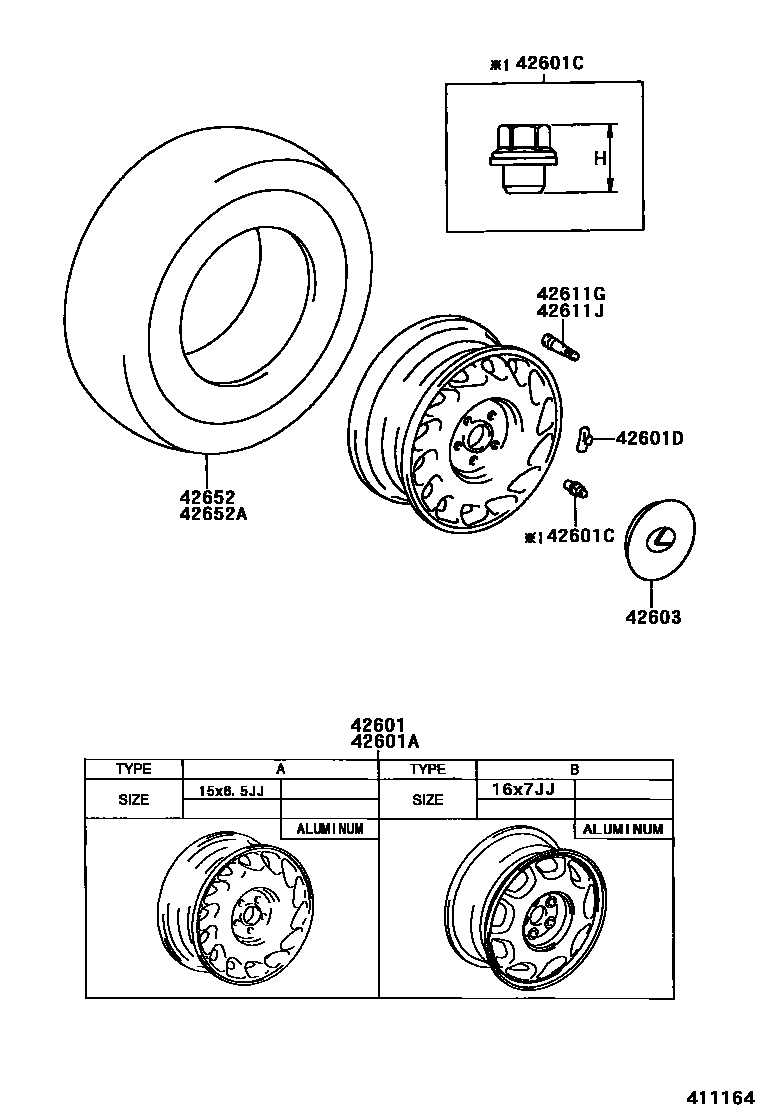

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-50010×2iUCF10198905-199206

15X6.5JJ,15X6.5JJ,TYPE A:REFER TO ILLUSTRATION,RH

main42611-50020×2iUCF10198905-199206

15X6.5JJ,15X6.5JJ,TYPE A:REFER TO ILLUSTRATION,LH

main42611-50050×2iUCF10199206-199208

15X6.5JJ,#,15X6.5JJ,TYPE A:REFER TO ILLUSTRATION,RH

main42611-50060×2iUCF10199206-199208

15X6.5JJ,15X6.5JJ,TYPE A:REFER TO ILLUSTRATION,LH

main42611-50070×4iUCF10199208-199212

16X7JJ,#,16X7JJ,TYPE B:REFER TO ILLUSTRATION

main42611-50100×4iUCF10199212-199410

16X7JJ,16X7JJ,TYPE B:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-50010iUCF10198905-199206

15X6.5JJ,15X6.5JJ,TYPE A:REFER TO ILLUSTRATION

main42611-50050iUCF10199206-199208

15X6.5JJ,#,15X6.5JJ,TYPE A:REFER TO ILLUSTRATION

main42611-50070iUCF10199208-199212

16X7JJ,#,16X7JJ,TYPE B:REFER TO ILLUSTRATION

main42611-50100iUCF10199212-199410

16X7JJ,16X7JJ,TYPE B:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01062×20iUCF10199008-199410

main90942-01080×20iUCF10198905-199008

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03146iUCF10198905-199410

10G

main90942-03147iUCF10198905-199410

15G

main90942-03148iUCF10198905-199410

20G

main90942-03149iUCF10198905-199410

25G

main90942-03150iUCF10198905-199410

30G

main90942-03151iUCF10198905-199410

35G

main90942-03152iUCF10198905-199410

40G

main90942-03153iUCF10198905-199410

45G

main90942-03154iUCF10198905-199410

50G

main90942-03155iUCF10198905-199410

55G

main90942-03156iUCF10198905-199410

60G

main90942-03157iUCF10198905-199410

65G

main90942-03158iUCF10198905-199410

70G

main90942-03159iUCF10198905-199410

75G

main90942-03160iUCF10198905-199410

80G

main90942-03167iUCF10198905-199410

5G

main90942-03208iUCF10198905-199410

7.5G,T=6.1

main90942-03209iUCF10198905-199410

12.5G,T=7.0

main90942-03210iUCF10198905-199410

17.5G,T=8.0

main90942-03211iUCF10198905-199410

22.5G,T=8.0

main90942-03212iUCF10198905-199410

27.5G,T=8.0

main90942-03213iUCF10198905-199410

32.5G,T=8.0

main90942-03214iUCF10198905-199410

37.5G,T=8.0

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-50010×4iUCF10198905-199208

main42603-50030×4iUCF10199208-199410

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iUCF10198905-199410

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iUCF10198905-199410

42652TIRE

main42652-50010×4iUCF10..CND199008-199208

205/65R15 94V,W(ALUMINUM WHEEL)

main42652-50020×4iUCF10..CND; UCF10..USA199001-199208

205/65R15 94V; 205/65R15 94V,W(ALUMINUM WHEEL)

main42652-50140×4iUCF10..CND; UCF10..USA199208-199410

225/60R16 97V; 225/60R16 97V,W(ALUMINUM WHEEL)

main42652-50160×4iUCF10..CND; UCF10..USA199208-199410

W(ALUMINUM WHEEL)

42652ATIRE (FOR SPARE)

main42652-50010iUCF10..CND199008-199208

205/65R15 94V,W(ALUMINUM WHEEL)

main42652-50020iUCF10..CND; UCF10..USA199001-199208

205/65R15 94V; 205/65R15 94V,W(ALUMINUM WHEEL)

main42652-50140iUCF10..CND; UCF10..USA199208-199410

225/60R16 97V; 225/60R16 97V,W(ALUMINUM WHEEL)

main42652-50160iUCF10..CND; UCF10..USA199208-199410

W(ALUMINUM WHEEL)

9 parts on this diagram · 1 diagram in section
