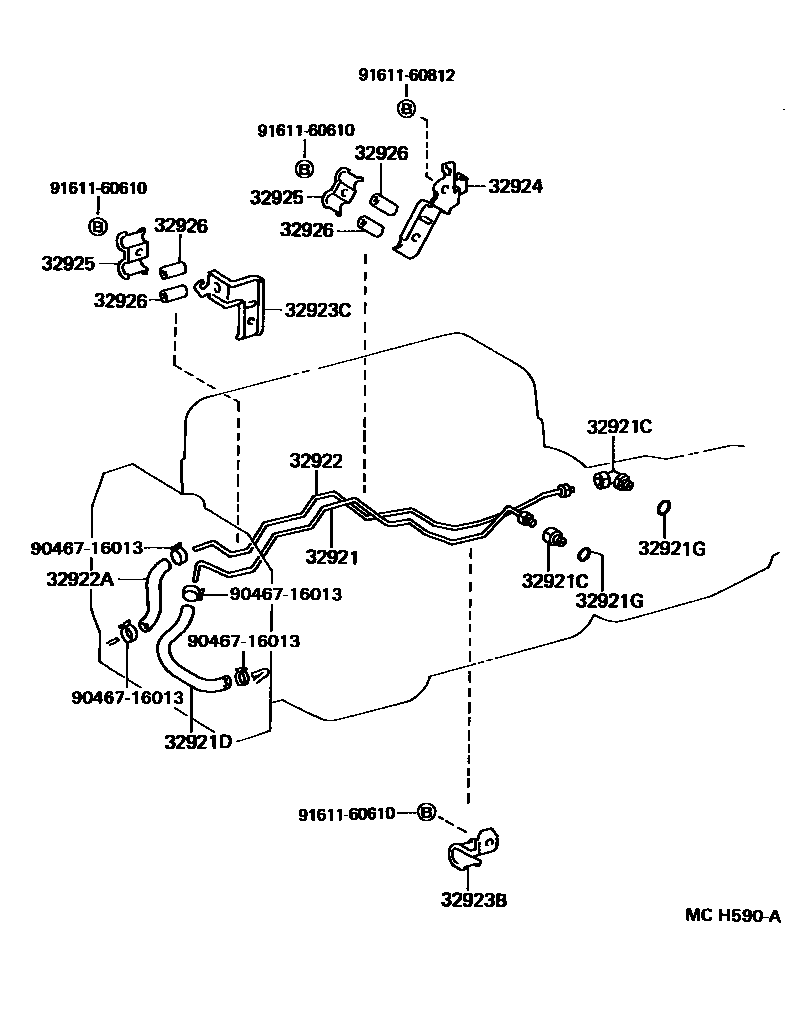

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-50011iUCF10198905-198910

main32921-50012iUCF10198910-199410

32921CUNION(FOR OIL COOLER TUBE)

main90404-16020iUCF10198905-199005

INLET

main90404-16029iUCF10199208-199410

INTET

main90407-16009iUCF10198905-199410

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-50010iUCF10198905-198911

main32941-50011iUCF10198911-199410

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iUCF10198905-199410

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-50011iUCF10198905-198910

main32922-50012iUCF10198910-199410

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17100iUCF10198905-199410

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-50010iUCF10198905-199410

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main32924-50011iUCF10198905-199410

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-50021iUCF10198905-198910

main32923-50022iUCF10198910-199410

32925CLAMP, OIL COOLER TUBE, NO.3

main32928-50010×2iUCF10198905-199010

main90462-12074×2iUCF10199010-199410

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×2iUCF10198911-199208

L=35,ID=10

main32926-50010×3iUCF10199208-199303

L=35,ID=12

9046716013

main90467-16013

9161160610

main91611-60610

9161160812

main91611-60812

14 parts on this diagram · 1 diagram in section
