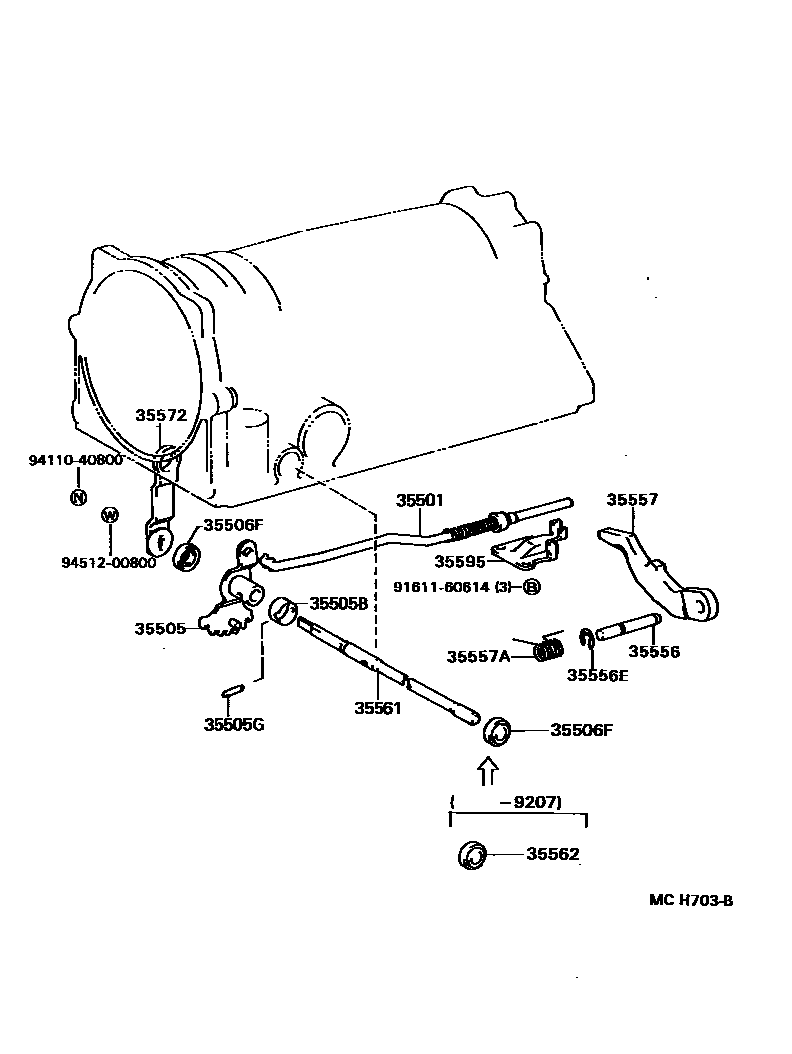

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A341E 0002 1A341E

35501ROD SUB-ASSY, PARKING LOCK

main35501-30010iUCF10198905-199410

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-50010iUCF10198905-199410

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iUCF10198905-199410

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iUCF10198905-199410

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iUCF10199207-199410

35556SHAFT, PARKING LOCK PAWL

main35556-30020iUCF10198905-199410

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iUCF10198905-199410

35557PAWL, PARKING LOCK

main35557-30020iUCF10198905-199410

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iUCF10198905-199410

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iUCF10199207-199410

main35561-50010iUCF10198905-199207

35562CAP, MANUAL VALVE LEVER SHAFT

main35562-50010iUCF10198905-199207

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30060iUCF10199306-199410

main35572-50011iUCF10198905-199306

35595BRACKET, PARKING LOCK PAWL

main35595-30010iUCF10198905-199410

9161160614

main91611-60614

9411040800

main94110-40800

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section
