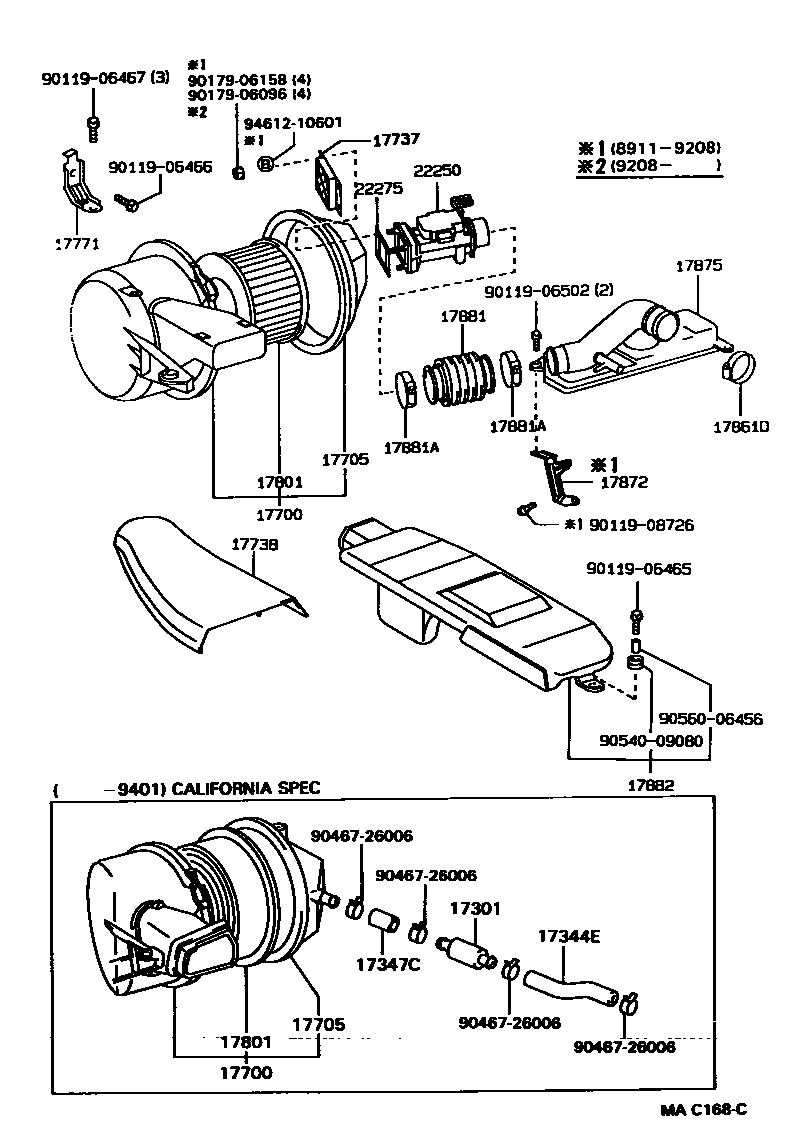

AIR CLEANER
17301SILENCER SUB-ASSY, AIR SUCTION
CALIFORNIA SPEC
17344EHOSE, AIR, NO.4
CALIFORNIA SPEC
17347CHOSE, AIR, NO.7
17700CLEANER ASSY, AIR
CALIFORNIA SPEC
17705CAP SUB-ASSY, AIR CLEANER
CALIFORNIA SPEC
17737COVER, AIR CLEANER
17738COVER, AIR CLEANER, NO.2
17771BRACKET, AIR CLEANER INLET DUCT
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17861DCLAMP(FOR INTAKE AIR CONNECTOR)
17872BRACKET, INTAKE AIR CONNECTOR
17875PIPE, INTAKE AIR CONNECTOR
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
PIPE SIDE
AIR FLOW METER SIDE
17882HOSE, AIR CLEANER, NO.2
22250METER ASSY, INTAKE AIR FLOW
22275GASKET, AIR FLOW METER
9011906465
main90119-06465
9011906466
main90119-06466
9011906467
main90119-06467
9011906502
main90119-06502
9011908726
main90119-08726
9017906096
main90179-06096
9017906158
main90179-06158
9046726006
main90467-26006
9054009080
main90540-09080
9056006456
main90560-06456
9461210601
main94612-10601
28 parts on this diagram · 1 diagram in section
