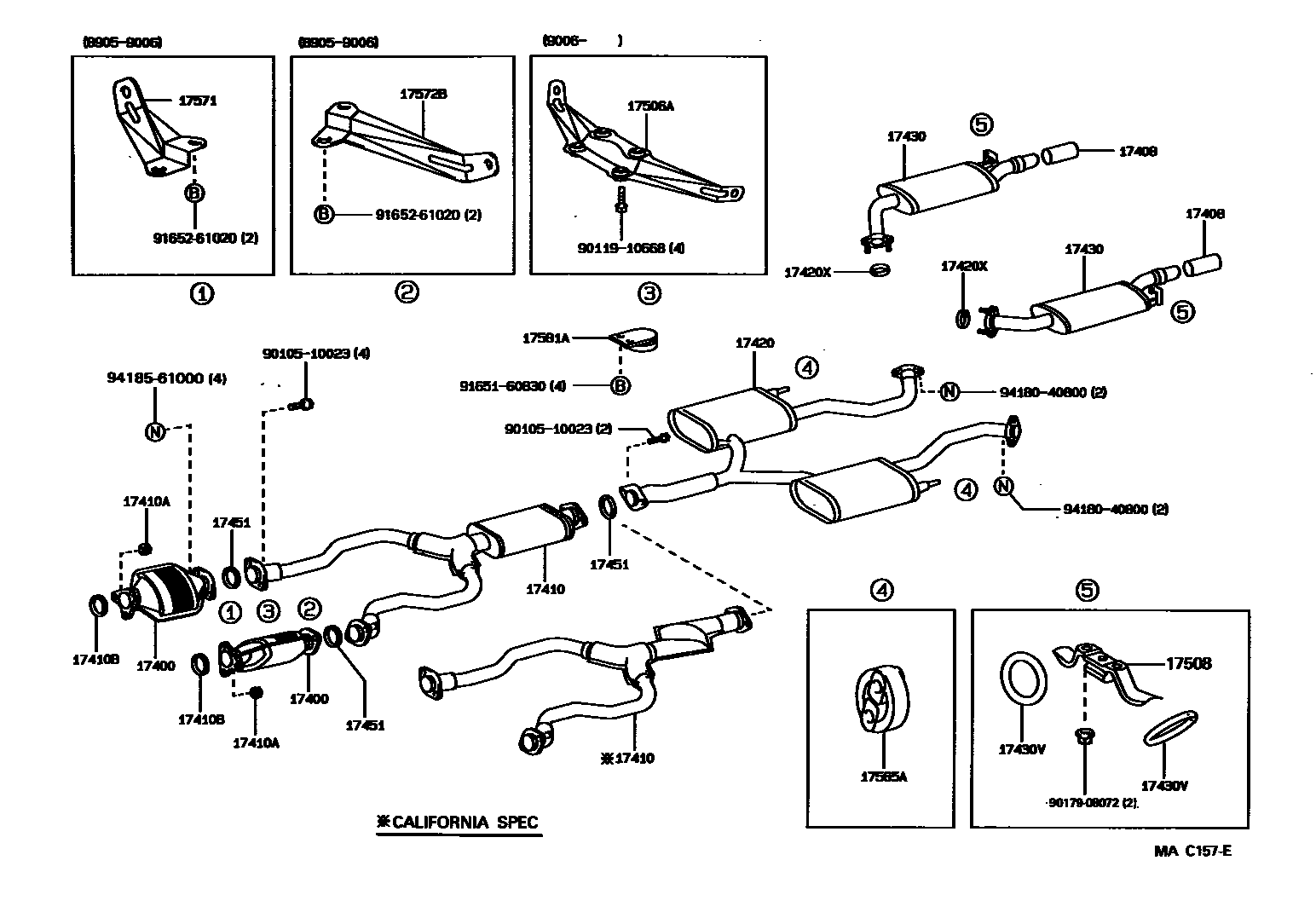

EXHAUST PIPE

17400CONVERTER ASSY, W/CATALYST

main18450-50010×2i1UZFE..UCF10198905-199410

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-50010×2i1UZFE..UCF10198905-199306

main17408-74040×2i1UZFE..UCF10199306-199410

17410PIPE ASSY, EXHAUST, FRONT

main17410-50020i1UZFE..UCF10198905-199005

main17410-50021i1UZFE..UCF10199005-199008

main17410-50030i1UZFE..UCF10198905-199005

CALIFORNIA SPEC

main17410-50031i1UZFE..UCF10199008-199208

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×6i1UZFE..UCF10198905-199410

17410BGASKET, EXHAUST PIPE

main90917-06043×2i1UZFE..UCF10198905-199410

17420PIPE ASSY, EXHAUST, CENTER

main17420-50010i1UZFE..UCF10198905-199410

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06045×2i1UZFE..UCF10198905-199012

main90917-06062×2i1UZFE..UCF10199012-199410

17430PIPE ASSY, EXHAUST, TAIL

main17430-50010i1UZFE..UCF10198905-199410

RH

main17440-50010i1UZFE..UCF10198905-199410

LH

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-36001×4i1UZFE..UCF10198905-199410

17451GASKET, EXHAUST PIPE

main90917-06031i1UZFE..UCF10199005-199011

RR

main90917-06043i1UZFE..UCF10199012-199410

RR

main90917-06054×3i1UZFE..UCF10198905-199005

main90917-06072×2i1UZFE..UCF10199012-199410

FR

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-50030i1UZFE..UCF10199006-199410

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-50010×2i1UZFE..UCF10198905-199410

17565ASUPPORT, EXHAUST PIPE, NO.4

main17505-50010×2i1UZFE..UCF10198905-199306

main17565-46040×2i1UZFE..UCF10199306-199410

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-50020i1UZFE..UCF10198905-199006

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-50010i1UZFE..UCF10198905-199006

17581ADAMPER, EXHAUST PIPE

main17581-50030×2i1UZFE..UCF10198905-199410

9010510023

main90105-10023

9011910668

main90119-10668

9017908072

main90179-08072

9165160830

main91651-60830

9165261020

main91652-61020

9418040800

main94180-40800

9418561000

main94185-61000

23 parts on this diagram · 1 diagram in section
