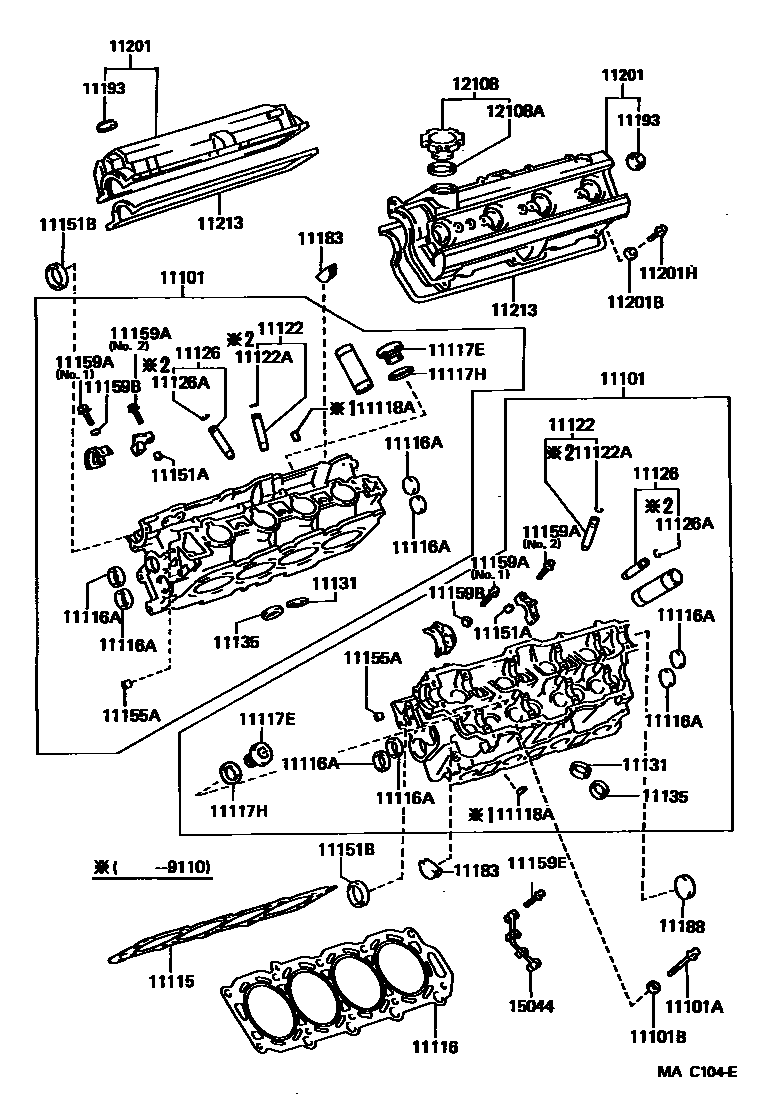

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-59116
sub11101-59125
sub90913-02106
sub90919-15444
sub90919-15445
sub90919-15446
sub90919-15447
sub90919-15448
sub90919-15449
sub90919-15450
sub90919-15451
sub11101-59145
sub90913-02106
sub90919-15444
sub90919-15445
sub90919-15446
sub90919-15447
sub90919-15448
sub90919-15449
sub90919-15450
sub90919-15451
CALIFORNIA SPEC
sub11101-59136
sub90913-02106
sub90919-15444
sub90919-15445
sub90919-15446
sub90919-15447
sub90919-15448
sub90919-15449
sub90919-15450
sub90919-15451
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11115GASKET, CYLINDER HEAD
sub11115-50021
11116GASKET, CYLINDER HEAD, NO.2
sub11116-50011
11116APLUG, TIGHT, NO.1
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117HGASKET(FOR WATER HOLE)
11118APLUG, STRAIGHT, NO.1
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=7,OD=10
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.1
NO.2
11159BWASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP)
11159EBOLT(FOR CAMSHAFT OIL FEED PIPE)
11183PLUG, SEMICIRCULAR
11188PLUG, CAMSHAFT HOUSING
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
LH
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201HBOLT(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
sub11213-50021
12108AGASKET(FOR OIL FILLER CAP)
15044PIPE SUB-ASSY, CAMSHAFT OIL FEED
31 parts on this diagram · 1 diagram in section
