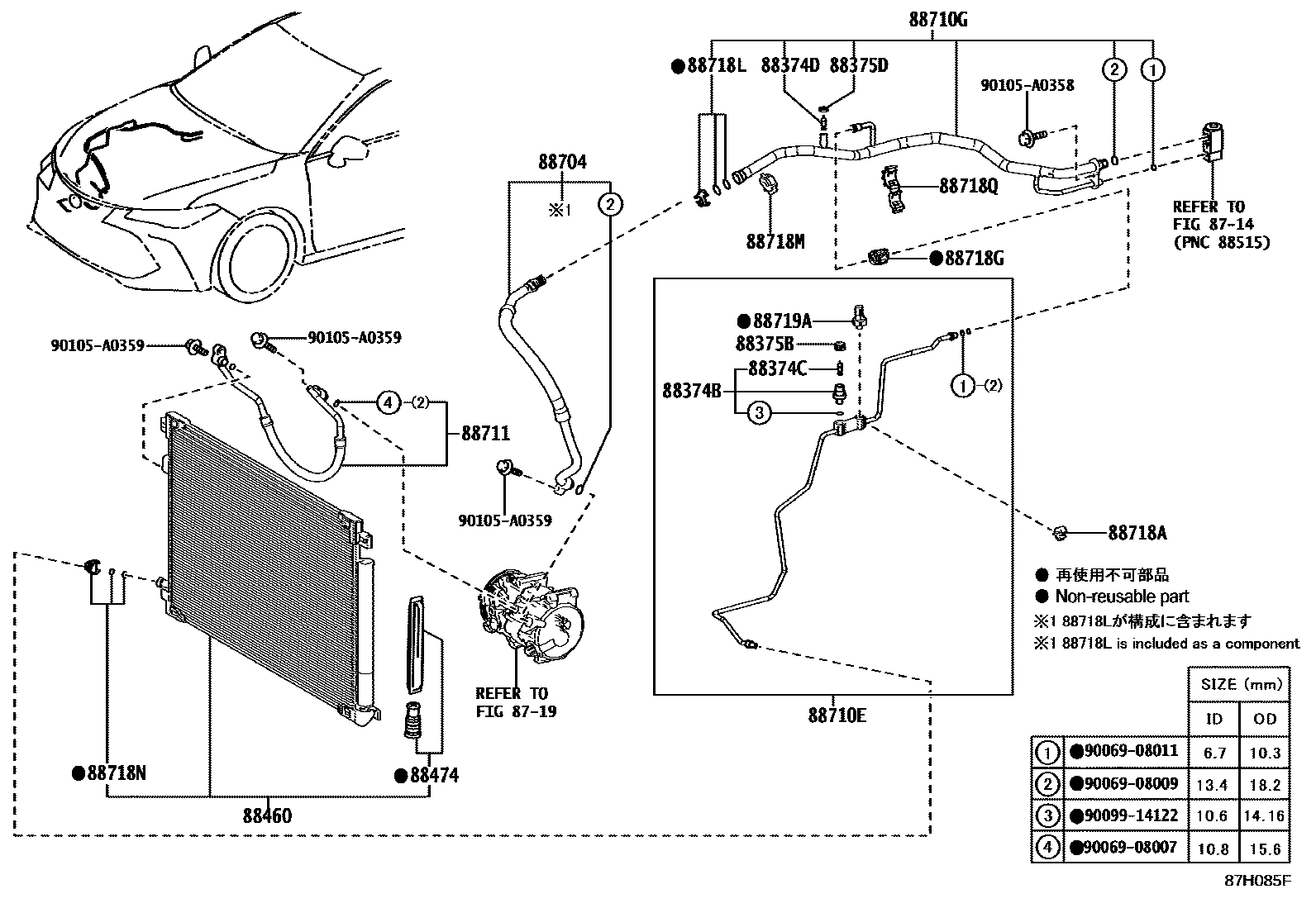

HEATING & AIR CONDITIONING - COOLER PIPING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88374DVALVE, SERVICE NO.3
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88460CONDENSER ASSY, COOLER
88474DRYER, COOLER
88704HOSE SUB-ASSY, SUCTION
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718GCLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)
88718LCLAMP, PIPING
88718MCLAMP, PIPING
88718NCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
9006908007
main90069-08007
9006908009
main90069-08009
9006908011
main90069-08011
9009914122
main90099-14122
90105A0358
main90105-A0358
90105A0359
main90105-A0359
26 parts on this diagram · 5 diagrams in section
