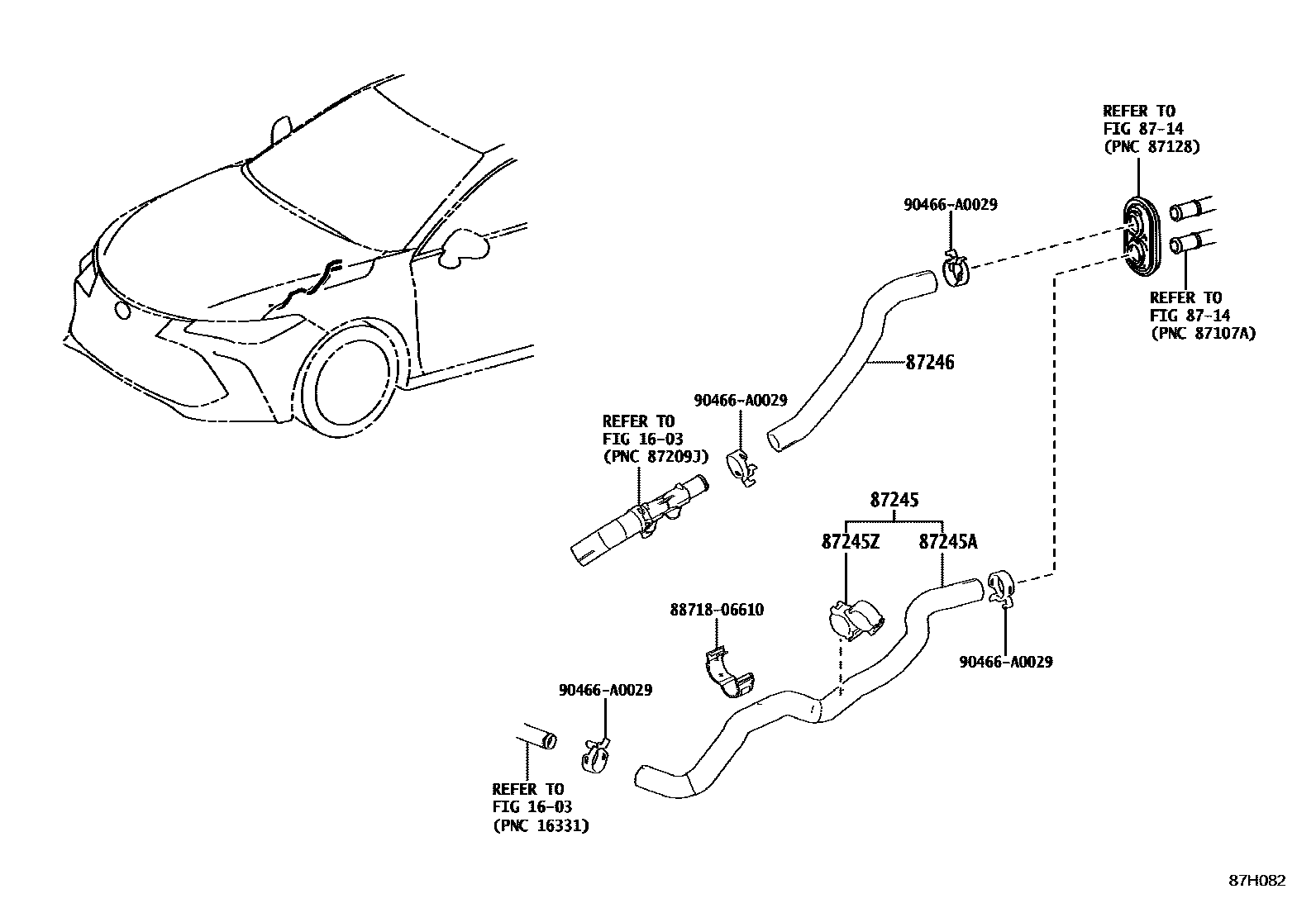

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-06060iAXXH50201805-202008

main87209-06240iGSX50201804-202008

87245AHOSE, HEATER WATER, INLET A

main87245-06E00iGSX50201804-202008

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main88718-48270iGSX50201804-202008

87246HOSE, HEATER WATER, OUTLET

main87209-06070iAXXH50201805-202008

main87245-06D90iGSX50201804-202008

8871806610PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06610

90466A0029

main90466-A0029

8 parts on this diagram · 2 diagrams in section
