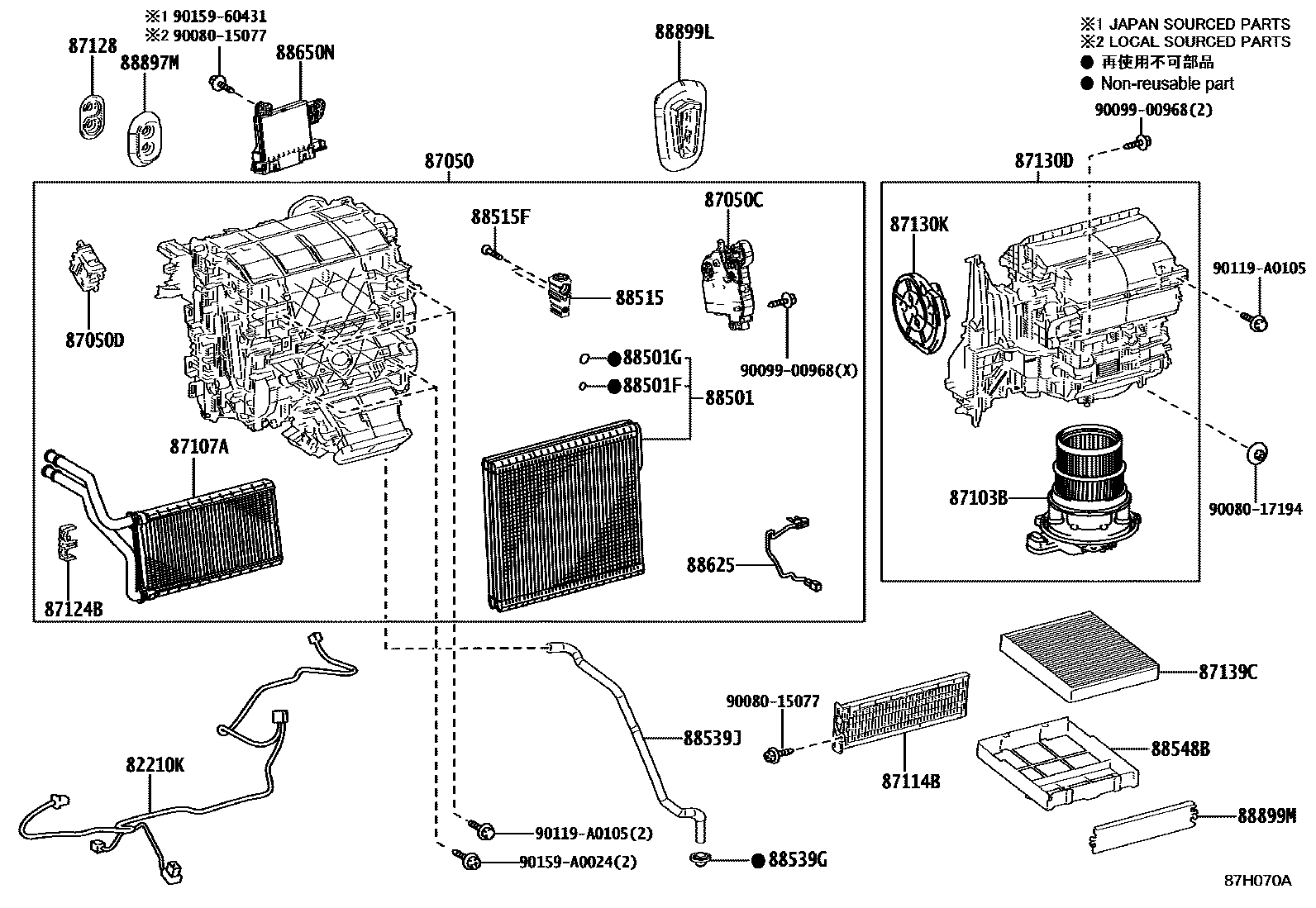

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0003 1 0004 1 0005 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-06200iGSX50201804-202008

main82212-0R050iAXXH50201805-202008

87050RADIATOR ASSY, AIR CONDITIONER

main87050-06870iGSX50201804-202008

main87050-06890iAXXH50201805-202008

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-06420iAXXH51;GSX50..LIMD,TOU,XLE202008

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-0E120iAXXH50,GSX50201804-202008

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0E090iAXXH50,GSX50201804-202008

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-06100iAXXH50,GSX50201804-202008

87114BCOVER, HEATER

main87114-06090iGSX50201804-202008

87124BCLAMP, HEATER

main87124-07030iAXXH50,GSX50201804-202008

87128GROMMET, HEATER

main87128-28010iAXXH50,GSX50201804-202008

87130DBLOWER ASSY

main87130-06410iAXXH50,GSX50201804-202008

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-0E130iAXXH50,GSX50201804-202008

87139CFILTER, CLEAN AIR

main87139-0E040iAXXH50,GSX50201804-202008

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-06410iGSX50201804-202008

main88501-06430iAXXH51202008

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90069-08007iAXXA55;GSX50..XSE202008-202107

ID=10.8,OD=15.6

main90099-14120iAXXH50201805-202008

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90069-08009iAXXA55;GSX50..XSE202008-202107

ID=13.4,OD=18.2

main90099-14121iAXXH50201805-202008

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-06140iAXXH51202008

main88515-06160iGSX50201804-202008

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iAXXH50,GSX50201804-202008

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-06020iAXXH50,GSX50201804-202008

88539JHOSE, DRAIN COOLER

main88539-06130iAXXH51;GSX50..LIMD,TOU,XLE202008

main88539-06230iAXXA55202008-202107

88548BCASE, AIR FILTER

main88899-0E030iAXXH50,GSX50201804-202008

88625THERMISTOR, COOLER, NO.1

main88620-06060iAXXH50201805-202008

main88620-0E050iAXXA55;GSX50..XSE202008-202107

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-07230iAXXH50,GSX50201910-202008

main88650-07290iAXXH50,GSX50201804-201910

main88650-07340iAXXH51;GSX50..LIMD,TOU,XLE202008

88897MGROMMET (FOR HEATER PIPE)

main87128-06010iAXXA55;GSX50..XSE202008-202107

88899LPARTS, COOLING UNIT

main88899-06280iAXXA55;GSX50..XSE202008-202107

main88899-06300iAXXH51202008

88899MPLATE, COVER(FOR AIR FILTER)

main88899-06310iAXXH51;GSX50..LIMD,TOU,XLE202008

9008015077

main90080-15077

9008017194

main90080-17194

9009900968

main90099-00968

90119A0105

main90119-A0105

9015960431

main90159-60431

90159A0024

main90159-A0024

31 parts on this diagram · 4 diagrams in section
