NAVIGATION & FRONT MONITOR DISPLAY

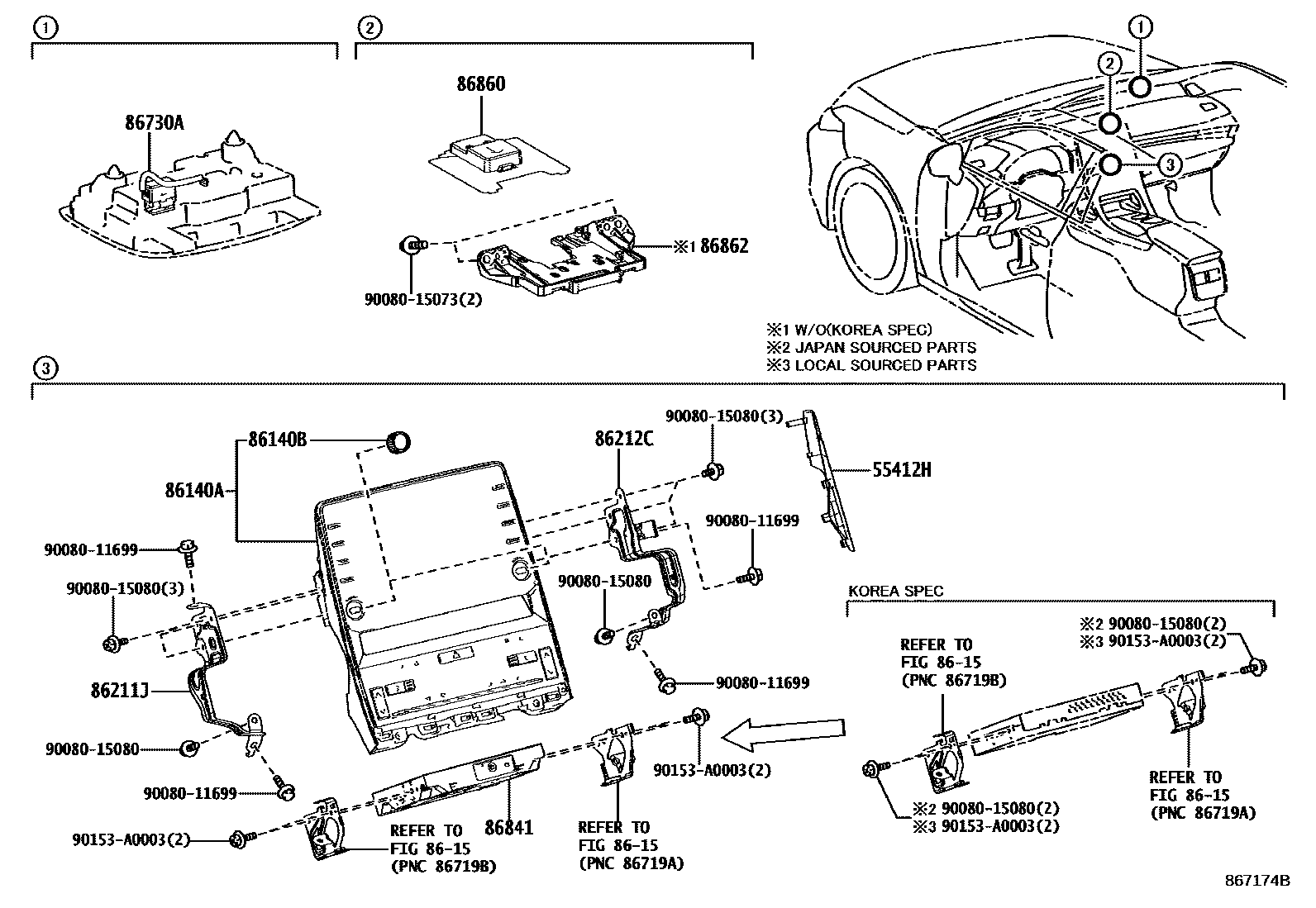

Parts diagram
55412HPANEL, INSTRUMENT CLUSTER FINISH, CENTER
main55412-07030i202008
86140ARECEIVER ASSY, RADIO & DISPLAY
main86140-07150i201805-201907
PIONEER
main86140-07160i201804-201907
PIONEER
main86140-07180i201805-201907
PIONEER
main86140-07181i201908-202008
PIONEER
main86140-07200i201804-201907
PIONEER
main86140-07201i201908-202008
PIONEER
main86140-07370i202008
PIONEER
main86140-07380i202008
PIONEER
main86140-07121supersedes 86140-07161i201908-202008
PIONEER,AUDIO-9INCH DISPLAY & 14SPEAKER
main86140-07130i201805-201908
PIONEER,AUDIO-9INCH DISPLAY & 14SPEAKER
main86140-07140i201804-201908
PIONEER,AUDIO-9INCH DISPLAY & 14SPEAKER
main86140-07190i201805-201908
PIONEER,KOREA SPEC&AUDIO-9INCH DISPLAY & 8SPEAKER/KOREA
main86140-07191i201908-202008
PIONEER,KOREA SPEC&AUDIO-9INCH DISPLAY & 8SPEAKER/KOREA
main86140-07230i201804-201907
PIONEER,CANADA SPEC
main86140-07231i201908-202008
PIONEER,CANADA SPEC
main86140-07240i201804-201907
PIONEER,CANADA SPEC
main86140-07241i201908-202008
PIONEER,CANADA SPEC
main86140-07250i201804-201908
PIONEER,CANADA SPEC&AUDIO-9INCH DISPLAY & 14SPEAKER
main86140-07311i201908-202008
PIONEER,CANADA SPEC&AUDIO-9INCH DISPLAY & 14SPEAKER
main86140-07321supersedes 86140-07151i201908-202008
PIONEER,AUDIO-9INCH DISPLAY & 14SPEAKER
main86140-07331i201908-202008
PIONEER,KOREA SPEC&AUDIO-9INCH DISPLAY & 14SPEAKER/KOREA
main86140-07410i202008
PIONEER,CANADA SPEC
main86140-07420i202008
PIONEER,CANADA SPEC
main86140-07430supersedes 86140-07350i202008
PIONEER,AUDIO-9INCH DISPLAY & 14SPEAKER
main86140-07440i202008
PIONEER,CANADA SPEC&AUDIO-9INCH DISPLAY & 14SPEAKER
main86140-07450supersedes 86140-07340i202008
PIONEER,AUDIO-9INCH DISPLAY & 14SPEAKER
main86140-07460i202008
PIONEER,KOREA SPEC&AUDIO-9INCH DISPLAY & 14SPEAKER/KOREA
main86140-07470i202008
PIONEER,KOREA SPEC&AUDIO-9INCH DISPLAY & 8SPEAKER/KOREA
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
main90011-25302×2i201804-202008
8615TELEPHONE & MAYDAY
→ Go to FIG 86-15
86211JBRACKET, RADIO RECEIVER, NO.1
main86211-07030i201804-202008
86212CBRACKET, RADIO RECEIVER, NO.2
main86212-07060i201804-202008
86730AMICROPHONE ASSY, TELEPHONE
main86730-06080i201804-202008
86841COMPUTER, NAVIGATION
main86840-07050i201804-201807
main86840-07051i201808-201902
main86840-07052i201903-201907
main86840-0E081i202008-202009
AUDIO-9INCH DISPLAY & 14SPEAKER
main86840-0E082i202009-202101
AUDIO-9INCH DISPLAY & 14SPEAKER
main86840-0E083i202102-202108
AUDIO-9INCH DISPLAY & 14SPEAKER
main86840-0E084i202109-202202
AUDIO-9INCH DISPLAY & 14SPEAKER
main86840-0E085i202203
AUDIO-9INCH DISPLAY & 14SPEAKER
main86840-0R012i201908-202001
AUDIO-9INCH DISPLAY & 14SPEAKER
main86840-0R013i202002-202008
AUDIO-9INCH DISPLAY & 14SPEAKER
86860ANTENNA ASSY, NAVIGATION
main86880-06010i201804-202008
main86880-0E010i202008
main86860-06100i201804-202008
USA POSSESSION SPEC
main86860-0E070i202008
KOREA SPEC&AUDIO-9INCH DISPLAY & 14SPEAKER/KOREA; KOREA SPEC&AUDIO-9INCH DISPLAY & 8SPEAKER/KOREA
86862BRACKET, NAVIGATION ANTENNA
main86862-58020i201804-202008
9008011699
main90080-11699
9008015073
main90080-15073
9008015080
main90080-15080
90153A0003
main90153-A0003

14 parts on this diagram · 1 diagram in section
