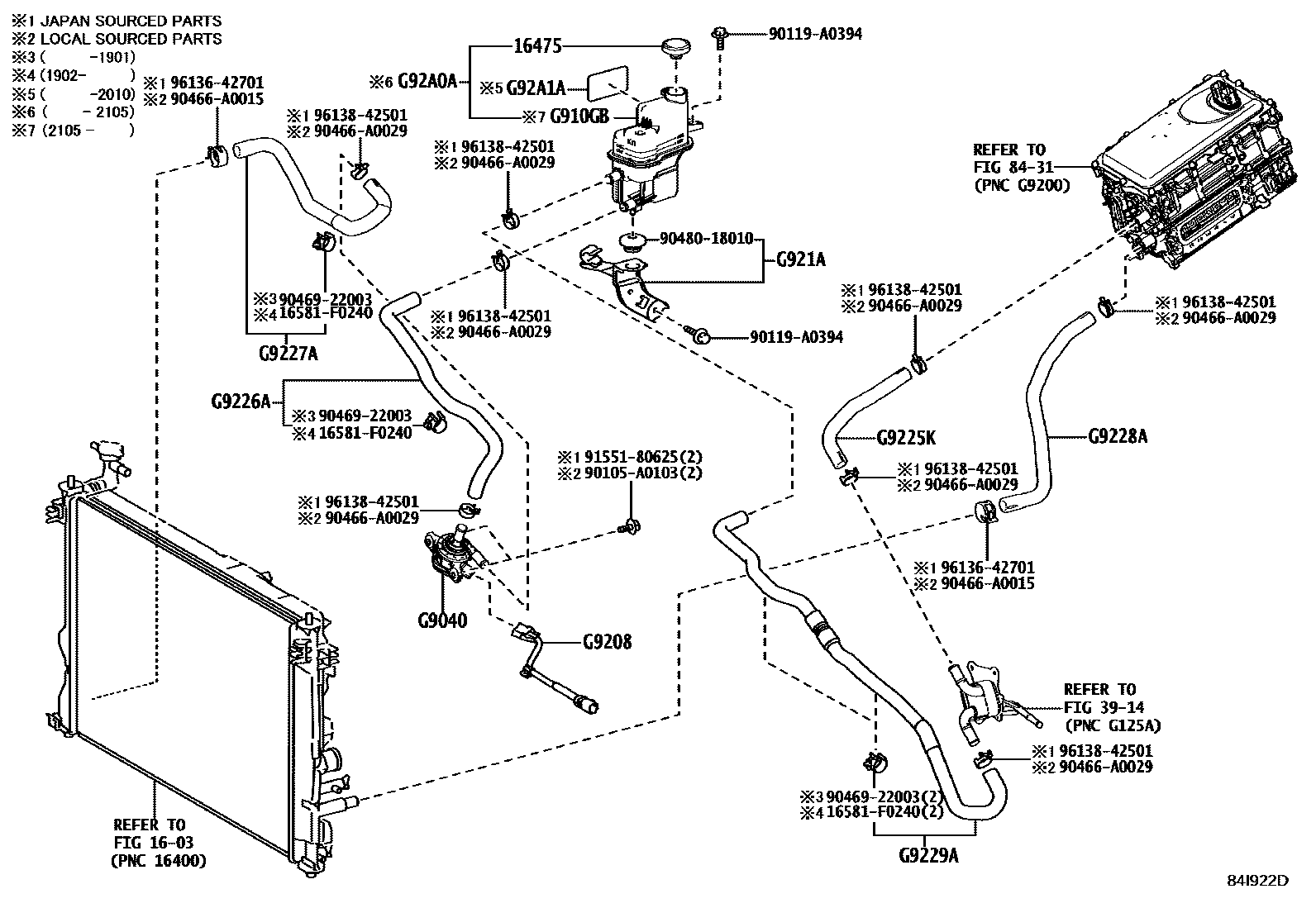

INVERTER COOLING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AXXH50201805-202008

3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)

→ Go to FIG 39-14

8431HEV INVERTER

→ Go to FIG 84-31

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904033050iAXXH50201805-202008

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G06010iAXXH51202105

G9208WIRE SUB-ASSY, INVERTER

mainG920806010iAXXH50201805-202008

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H206010iAXXH50201805-202008

G9225KHOSE, INVERTER COOLING, NO.1

mainG922506080iAXXH50201805-202008

G9226AHOSE, INVERTER COOLING, NO.2

mainG922606041iAXXH50201805-201901

mainG922606042iAXXH50201902-202008

G9227AHOSE, INVERTER COOLING, NO.3

mainG922706040iAXXH50201805-201901

mainG922706041iAXXH50201902-202008

G9228AHOSE, INVERTER COOLING, NO.4

mainG922806090iAXXH50201805-202008

G9229AHOSE, INVERTER COOLING, NO.5

mainG922906051iAXXH50201805-201901

mainG922906052iAXXH50201902-202008

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H006010iAXXH50201805-202008

G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iAXXH50201805-202008

16581F0240CLAMP, HOSE(FOR WATER HOSE)

main16581-F0240

90105A0103

main90105-A0103

90119A0394

main90119-A0394

90466A0015

main90466-A0015

90466A0029

main90466-A0029

9046922003

main90469-22003

9048018010

main90480-18010

9155180625

main91551-80625

9613642701

main96136-42701

9613842501

main96138-42501

25 parts on this diagram · 1 diagram in section
