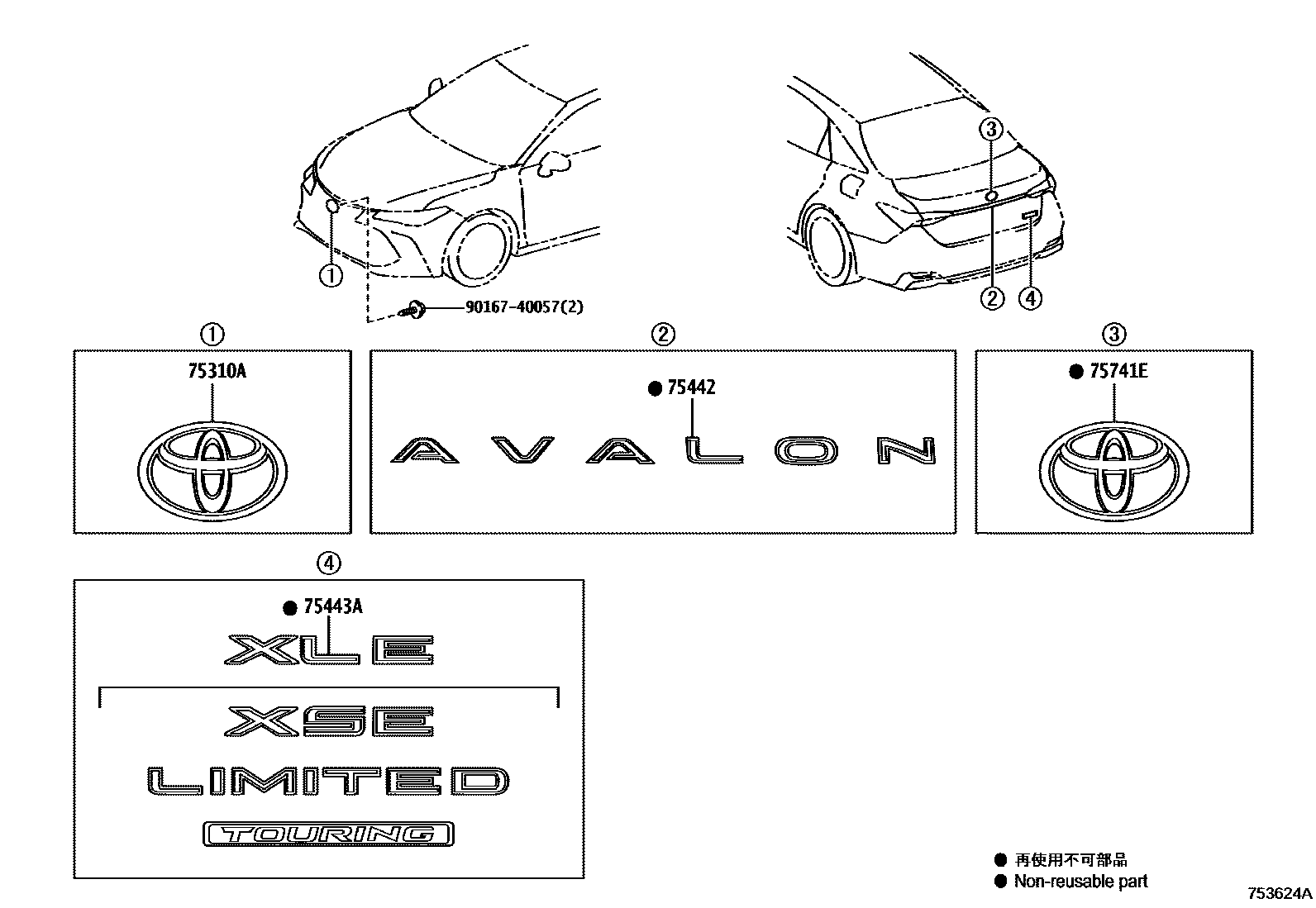

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75310AEMBLEM ASSY, RADIATOR GRILLE

main53141-33130iAXXA55;GSX50..XSE202008-202107

main53141-33140iAXXH50201805-202008

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-07020iAXXH50,GSX50..LIMD,XLE201804-202008

AVALON

main75442-07030iGSX50..TOU;AXXH51..XSE202008

AVALON

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-07050iAXXH51,GSX50..XLE202008

XLE

main75443-07070iAXXH51,GSX50..LIMD202008

LIMITED

main75443-07090iGSX50..TOU201804-202008

TOURING

main75443-07100iAXXH50,GSX50..XSE; GSX50..XSE201804-202008

XSE; XSE,TRD PACKAGE

75741EEMBLEM, SYMBOL

main75403-07011iAXXH50201805-202008

main90975-02069iGSX50201804-202008

9016740057

main90167-40057

5 parts on this diagram · 2 diagrams in section
