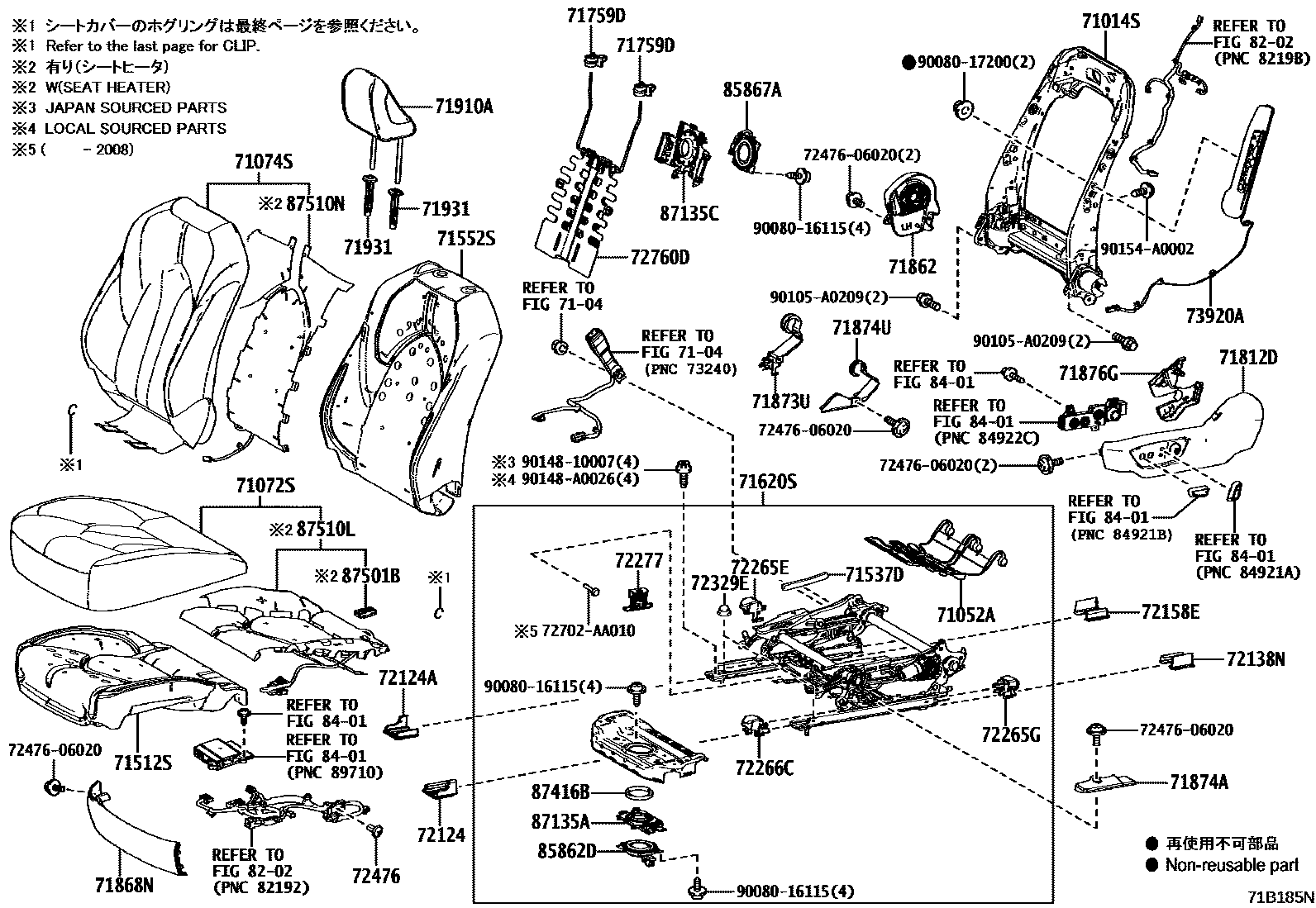

FRONT SEAT & SEAT TRACK

0001 1DRIVER 0002 1DRIVER 0003 1PASSENGER 0004 1PASSENGER 0005 1CLIP

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-06460iGSX50..XSE;AXXA55..XLE202008-202107

main71014-07070iAXXH50,GSX50..LIMD,TOU201804-202008

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-06030iAXXH50,GSX50201804-202008

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-07210-B1iAXXH50,GSX50..TOU,XSE201804-201908

MD. GRAY,TRIM1#

main71072-07210-C1iAXXH50,GSX50..TOU,XSE201804-201908

BLACK,TRIM2#

main71072-07211-B2iAXXH50,GSX50..TOU,XSE201908-202008

MD. GRAY,TRIM1#

main71072-07211-C3iGSX50..XSE202008-202107

BLACK/RED,TRIM21

main71072-07211-C4iGSX50..XSE202008-202107

BLACK/RANGE BROWN,TRIM20

main71072-07211-E1iGSX50..XSE202008-202107

BROWN/AMBER,TRIM4#

main71072-07220-B2iAXXH50,GSX50..XLE201804-201908

GRAY,TRIM1#

main71072-07220-C4iAXXH50,GSX50..XLE201804-201908

BLACK,TRIM2#

main71072-07220-E2iAXXH50,GSX50..XLE201804-201908

NEUTRAL BEIGE,TRIM4#

main71072-07221-B3iAXXH50,GSX50..XLE201908-202008

GRAY,TRIM1#

main71072-07221-C5iAXXH50,GSX50..XLE201908-202008

BLACK,TRIM2#

main71072-07221-E3iAXXH51,GSX50..XLE202008

NEUTRAL BEIGE,TRIM4#

main71072-07230-B3iAXXH50,GSX50..LIMD201804-201908

GRAY,TRIM1#

main71072-07230-E3iAXXH50,GSX50..LIMD201804-201908

NEUTRAL BEIGE,TRIM40

main71072-07230-E4iAXXH50,GSX50..LIMD201804-201908

BROWN,TRIM43

main71072-07231-B4iAXXH50,GSX50..LIMD201908-202008

GRAY,TRIM1#

main71072-07231-C0iAXXA55..LIMD202008-202107

BLACK/BLACK/AMBER,TRIM2#

main71072-07231-E5iAXXH50,GSX50..LIMD201908-202008

NEUTRAL BEIGE,TRIM40

main71072-07231-E6iAXXA55..LIMD202008-202107

BROWN,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-07360-B2iAXXH50,GSX50..XLE201804-201908

GRAY,TRIM1#

main71074-07360-C3iAXXH50,GSX50..XLE201804-201908

BLACK,TRIM2#

main71074-07360-E2iAXXH50,GSX50..XLE201804-201908

NEUTRAL BEIGE,TRIM4#

main71074-07361-B2iAXXA55..XLE202008-202107

GRAY,TRIM1#

main71074-07361-C3iAXXH50,GSX50..XLE201908-202008

BLACK,TRIM2#

main71074-07361-E2iAXXH51,GSX50..XLE202008-202108

NEUTRAL BEIGE,TRIM4#

main71074-07370-B1iAXXH50,GSX50..TOU,XSE201804-201908

MD. GRAY,TRIM1#

main71074-07370-C1iAXXH50,GSX50..TOU,XSE201804-201908

BLACK,TRIM2#

main71074-07371-B1iAXXH50,GSX50..TOU,XSE201908-202008

MD. GRAY,TRIM1#

main71074-07371-C1iGSX50..TOU;AXXH51..XSE202008-202108

BLACK,TRIM2#

main71074-07371-E1iGSX50..XSE202008-202107

BROWN/AMBER,TRIM4#

main71074-07380-B3iAXXH50,GSX50..LIMD201804-201908

GRAY,TRIM1#

main71074-07380-E3iAXXH50,GSX50..LIMD201804-201908

NEUTRAL BEIGE,TRIM40

main71074-07380-E4iAXXH50,GSX50..LIMD201804-201908

BROWN,TRIM43

main71074-07382-B3iAXXH51,GSX50..LIMD202008-202108

GRAY,TRIM1#

main71074-07382-C0iAXXH51,GSX50..LIMD202008-202108

BLACK/BLACK/AMBER,TRIM2#

main71074-07382-E3iAXXH50,GSX50..LIMD201908-202008

NEUTRAL BEIGE,TRIM40

main71074-07382-E4iAXXH50,GSX50..LIMD201908-202008

BROWN,TRIM43

main71074-07480-B0iAXXH51,GSX50..XLE202108

GRAY,TRIM1#

main71074-07480-C0iAXXH51,GSX50..XLE202108

BLACK,TRIM2#

main71074-07480-E0iAXXH51,GSX50..XLE202108

NEUTRAL BEIGE,TRIM4#

main71074-07490-C0iGSX50..TOU;AXXH51..XSE202108

BLACK,TRIM2#

main71074-07490-E0iGSX50..TOU;AXXH51..XSE202108

BROWN/AMBER,TRIM4#

main71074-07500-B0iAXXH51,GSX50..LIMD202108

GRAY,TRIM1#

main71074-07500-C0iAXXH51,GSX50..LIMD202108

BLACK,TRIM2#

main71074-07500-E0iAXXH51,GSX50..LIMD202108

BROWN,TRIM4#

main71074-07431-C1supersedes 71074-07371-C1iGSX50..XSE202008-202107

TRD PACKAGE,BLACK/RED,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-07030iAXXH50,GSX50..LIMD,TOU201804-202008

main71512-07040iGSX50..XSE;AXXA55..XLE202008-202107

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71537-06210iAXXH50,GSX50201804-202008

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-07120iAXXH50,GSX50..LIMD,TOU201804-201809

main71552-07121iAXXA55..LIMD202008-202107

main71552-07130iGSX50..XSE;AXXA55..XLE202008-202107

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-06580iGSX50..XLE;AXXH51..XLE,XSE202008

main71620-07030iAXXH50,GSX50..LIMD,TOU201804-202008

main71620-07100iAXXH51,GSX50..LIMD,TOU202008

main71620-07110iAXXH51..XLE202108

POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)

71759DHOOK, FRONT SEATBACK, NO.2

main71759-06020×2iAXXH50,GSX50..LIMD,TOU201804-202008

main71759-06050×2iGSX50..XLE;AXXH51..XLE,XSE202008

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-06560-C0iAXXH50,GSX50..LIMD; AXXH50,GSX50..TOU,XSE; AXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-06420-C0iAXXH50,GSX50..LIMD; AXXH50,GSX50..TOU,XSE; AXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

71868NSHIELD, FRONT SEAT CUSHION, FRONT LH

main71868-06170-C0iAXXH50,GSX50..LIMD; AXXH50,GSX50..TOU,XSE; AXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-06600-C0iAXXH50,GSX50..LIMD; AXXH50,GSX50..TOU,XSE; AXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-06610-C0iAXXH50,GSX50..LIMD; AXXH50,GSX50..TOU,XSE; AXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06620-C0iAXXH50,GSX50..LIMD; AXXH50,GSX50..TOU,XSE; AXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06690iAXXH50,GSX50201804-202008

71874USHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06630-C0iAXXH50,GSX50..LIMD; AXXH50,GSX50..TOU,XSE; AXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-06640-C0iAXXH50,GSX50..LIMD; AXXH50,GSX50..TOU,XSE; AXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

71910AHEADREST ASSY, FRONT SEAT

main71910-07150-B1×2iAXXH50,GSX50..XLE201804-201908

GRAY,TRIM1#

main71910-07150-C1×2iAXXH50,GSX50..XLE201804-201908

BLACK,TRIM2#

main71910-07150-E1×2iAXXH50,GSX50..XLE201804-201908

NEUTRAL BEIGE,TRIM4#

main71910-07151-B1×2iAXXH50,GSX50..XLE201908-202008

GRAY,TRIM1#

main71910-07151-C1×2iAXXH50,GSX50..XLE201908-202008

BLACK,TRIM2#

main71910-07151-E1×2iAXXH50,GSX50..XLE201908-202008

NEUTRAL BEIGE,TRIM4#

main71910-07170-B1×2iAXXH50,GSX50..LIMD201804-201908

GRAY,TRIM1#

main71910-07170-E2×2iAXXH50,GSX50..LIMD201804-201908

NEUTRAL BEIGE,TRIM40

main71910-07170-E3×2iAXXH50,GSX50..LIMD201804-201908

BROWN,TRIM43

main71910-07171-B1×2iAXXH51,GSX50..LIMD202008-202108

GRAY,TRIM1#

main71910-07171-C0×2iAXXA55..LIMD202008-202107

BLACK/BLACK,TRIM2#

main71910-07171-E2×2iAXXH50,GSX50..LIMD201908-202008

NEUTRAL BEIGE,TRIM40

main71910-07171-E3×2iAXXA55..LIMD202008-202107

BROWN,TRIM4#

main71910-07180-B0×2iAXXH51,GSX50..XLE202108

GRAY,TRIM1#

main71910-07180-C0×2iAXXH51,GSX50..XLE202108

BLACK,TRIM2#

main71910-07180-E0×2iAXXH51,GSX50..XLE202108

NEUTRAL BEIGE,TRIM4#

main71910-07190-B1×2iAXXH50,GSX50..TOU,XSE201804-201908

GRAY,TRIM1#

main71910-07190-C1×2iAXXH50,GSX50..TOU,XSE201804-201908

BLACK,TRIM2#

main71910-07191-B1×2iAXXH50,GSX50..TOU,XSE201908-202008

GRAY,TRIM1#

main71910-07191-C1×2iGSX50..TOU;AXXH51..XSE202008-202108

BLACK,TRIM2#,43

main71910-07191-C3×2iGSX50..TOU;AXXH51..XSE202008-202108

BLACK/AMBER,TRIM43

main71910-07220-C0×2iGSX50..TOU;AXXH51..XSE202108

BLACK/AMBER,TRIM4#

main71910-07220-C1×2iGSX50..TOU;AXXH51..XSE202108

BLACK/ORANGE BROWN,TRIM2#

main71910-07230-B0×2iAXXH51,GSX50..LIMD202108

GRAY,TRIM1#

main71910-07230-C0×2iAXXH51,GSX50..LIMD202108

BLACK,TRIM2#

main71910-07230-E0×2iAXXH51,GSX50..LIMD202108

BROWN,TRIM4#

main71910-07111-C0×2iGSX50..XSE202008-202107

TRD PACKAGE,BLACK/RED,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-06060-B3×2iAXXH50,GSX50201804-202008

W(LOCK),GRAY,TRIM1#

main71930-06060-C0×2iAXXH51,GSX50..XLE; GSX50..LIMD,TOU;AXXH51..LIMD,XSE202008

W(LOCK),BLACK,TRIM2#; W(LOCK),BLACK,TRIM2#,4#

main71930-06060-E0×2iAXXA55..XLE202008-202107

W(LOCK),NEUTRAL BEIGE,TRIM4#

main71931-06050-B3×2iAXXH51,GSX50..LIMD,XLE202008

W/O(LOCK),GRAY,TRIM1#

main71931-06050-C0×2iAXXH50,GSX50..LIMD; AXXH50,GSX50..TOU,XLE,XSE201804-202008

W/O(LOCK),BLACK,TRIM2#; W/O(LOCK),BLACK,TRIM43

main71931-06050-E0×2iAXXH50,GSX50..LIMD; AXXH50,GSX50..XLE201804-202008

W/O(LOCK),NEUTRAL BEIGE,TRIM4#; W/O(LOCK),NEUTRAL BEIGE,TRIM40

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-06100iAXXH51;GSX50..LIMD,TOU,XLE202008

main72127-06100iAXXH50,GSX50201804-202008

72124ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-06100iAXXH50,GSX50201804-202008

main72127-06100iAXXA55;GSX50..XSE202008-202107

72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72138-06110iAXXH51;GSX50..LIMD,TOU,XLE202008

72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH

main72158-06190iAXXA55;GSX50..XSE202008-202107

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-06010iAXXH50,GSX50201804-202008

72265ECOVER, SEAT TRACK UPPER RAIL, RH

main72265-06010iAXXH50,GSX50201804-202008

72265GCOVER, SEAT TRACK UPPER RAIL, LH(FOR LH SEAT)

main72265-06010iAXXH50,GSX50201804-202008

72266COVER, SEAT TRACK UPPER RAIL, LH

main72266-06010iAXXH50,GSX50201804-202008

72266CCOVER, SEAT TRACK UPPER RAIL, LH

main72266-06010iAXXH50,GSX50201804-202008

72277PROTECTOR, SEAT SLIDE POSITION SENSOR,

main72277-06030iAXXH50,GSX50201804-202008

72329ECOVER, SEAT ADJUSTER BOLT, LH

main72329-06010×2iAXXA55;GSX50..XSE202008-202107

72476SCREW, HORIZONTAL JACK, INNER

main72476-06020×2iAXXH50,GSX50201804-202008

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-07030iAXXH50,GSX50..LIMD,TOU201804-202008

main72760-06190iGSX50..XSE;AXXA55..XLE202008-202107

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-06200iAXXH50,GSX50201804-202008

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85862DBLOWER, SEAT CUSHION CLIMATE CONTROL, LH

main85862-07020iAXXH50,GSX50..LIMD,TOU201804-202008

main85862-07030iAXXA55..LIMD202008-202107

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-07020iAXXH50,GSX50..LIMD,TOU201804-202008

main85867-07030iAXXH51,GSX50..LIMD,TOU202008

85867ABLOWER, SEATBACK CLIMATE CONTROL, LH

main85867-07020iAXXH50,GSX50..LIMD,TOU201804-202008

main85867-07030iAXXA55..LIMD202008-202107

87135ADAPTER, BLOWER FAN, RH(FOR SEAT CUSHION)

main87135-07020iAXXH50,GSX50..LIMD,TOU201804-202008

87135AADAPTER, BLOWER FAN, LH(FOR SEAT CUSHION)

main87135-07020iAXXH50,GSX50..LIMD,TOU201804-202008

87135CADAPTER, BLOWER FAN, LH(FOR SEATBACK)

main87135-07010iAXXH50,GSX50..LIMD,TOU201804-201906

main87135-07011iAXXH50,GSX50..LIMD,TOU201906-202008

87416BGASKET, AIR DUCT, LH

main87416-07010iAXXH50,GSX50..LIMD,TOU201804-202008

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-07010iAXXA55;GSX50..XSE202008-202107

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-06110iAXXH50,GSX50..LIMD; AXXH50,GSX50..TOU,XLE,XSE201804-202008

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-06060iAXXH50,GSX50201804-202008

7247606020SCREW, HORIZONTAL JACK, INNER

main72476-06020

72702AA010BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-AA010

9008016115

main90080-16115

9008017200

main90080-17200

90105A0209

main90105-A0209

9014810007

main90148-10007

90148A0026

main90148-A0026

90154A0002

main90154-A0002

55 parts on this diagram · 5 diagrams in section
